Quarter Window Glass: Service and Repair

REAR QUARTER WINDOW GLASS


Material:






Meterial

1. Remove the rear quarter trim panel.

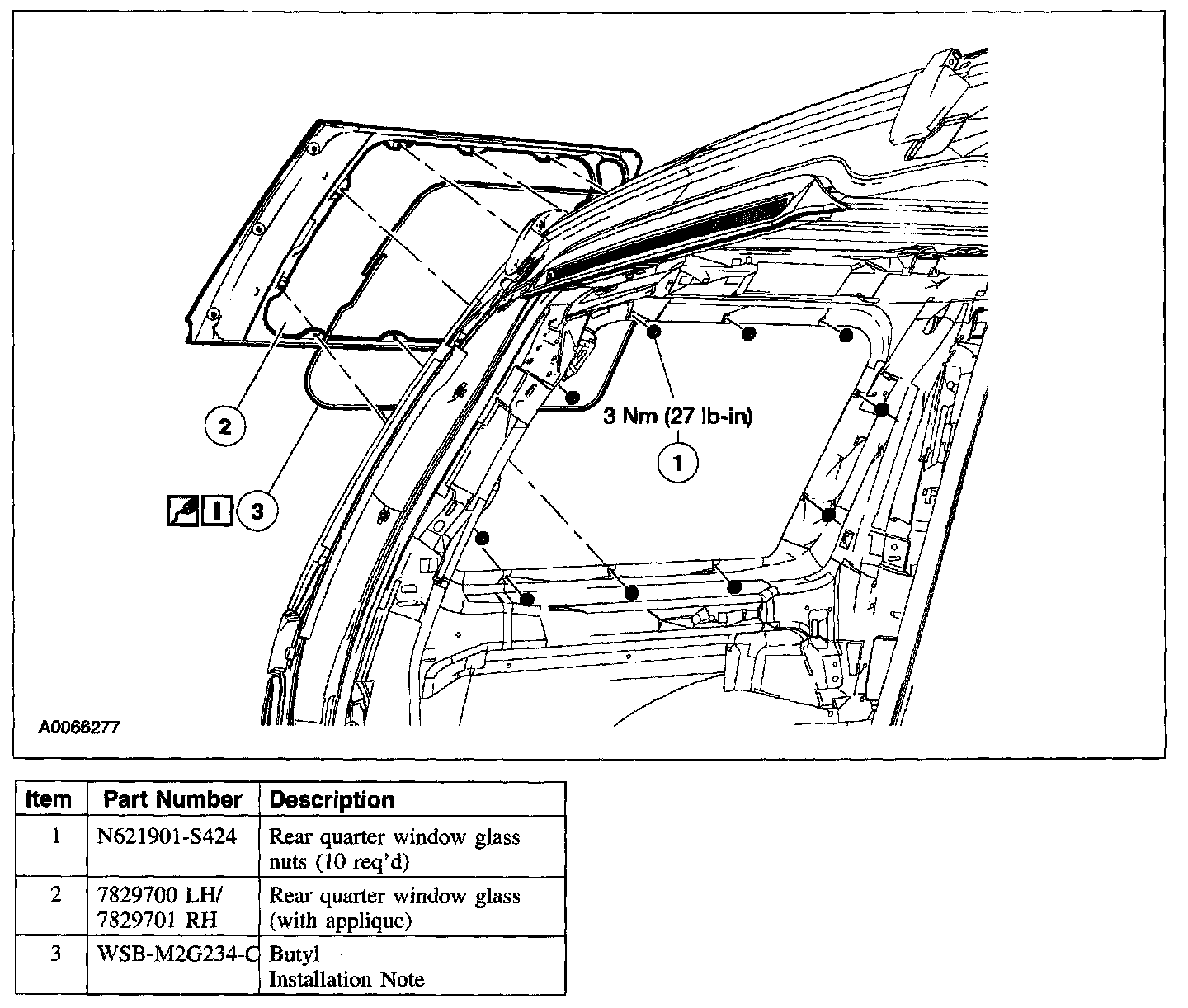

2. Remove the components in the order indicated in the illustration and table.







3. To install, reverse the removal procedure.

Item 3: Buytl Installation Note

1. NOTE:
- When applying sealant, leave a slight gap at the bottom to allow for drainage.
- When applying sealant, start at the bottom of the window glass frame and uniformly work sealant around it.

Apply 6 mm (0.24 in) sealant or equivalent meeting Ford specification WSB-M2G234-C to the rear quarter window glass frame.
