Test A

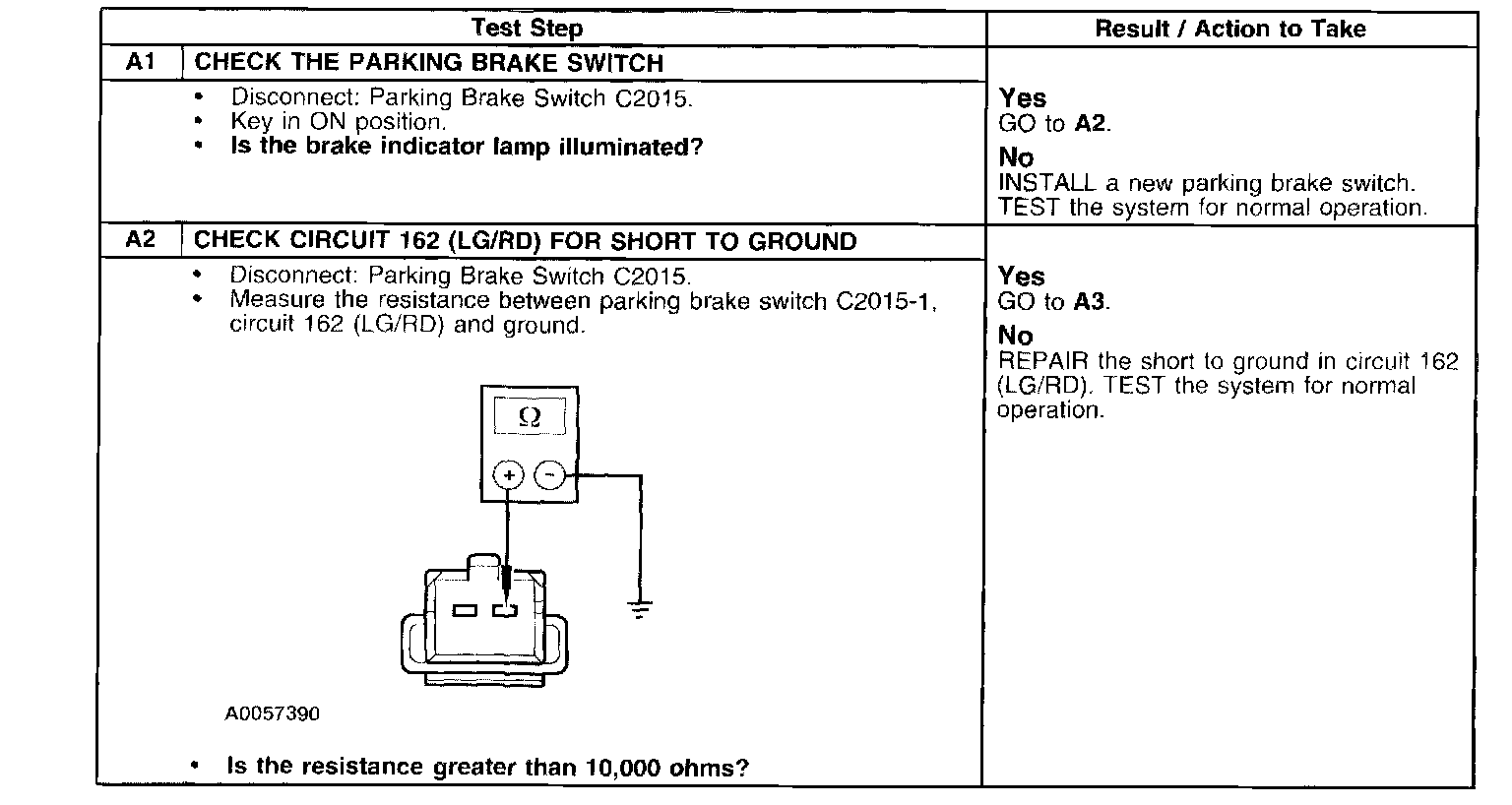

PINPOINT TEST A: PARKING BRAKE INDICATOR ALWAYS ONTest A1-A2:
Test A3:
Normal Operation The parking brake indicator is located on the instrument cluster and will illuminate at prove out, and when the Parking brake is engaged.
Possible Causes ^
Parking brake engaged
^
A short to ground in the brake indicator signal circuit 162 (LG/RD)
^
Instrument cluster
