Upper Intake Manifold
Upper Intake Manifold1. Disconnect the battery ground cable.
2. Drain the cooling system.
3. Release the fuel system pressure.
4. Remove the alternator.
5. Remove the air cleaner outlet pipe.
6. Remove the Exhaust Gas Recirculation (EGR) system module.

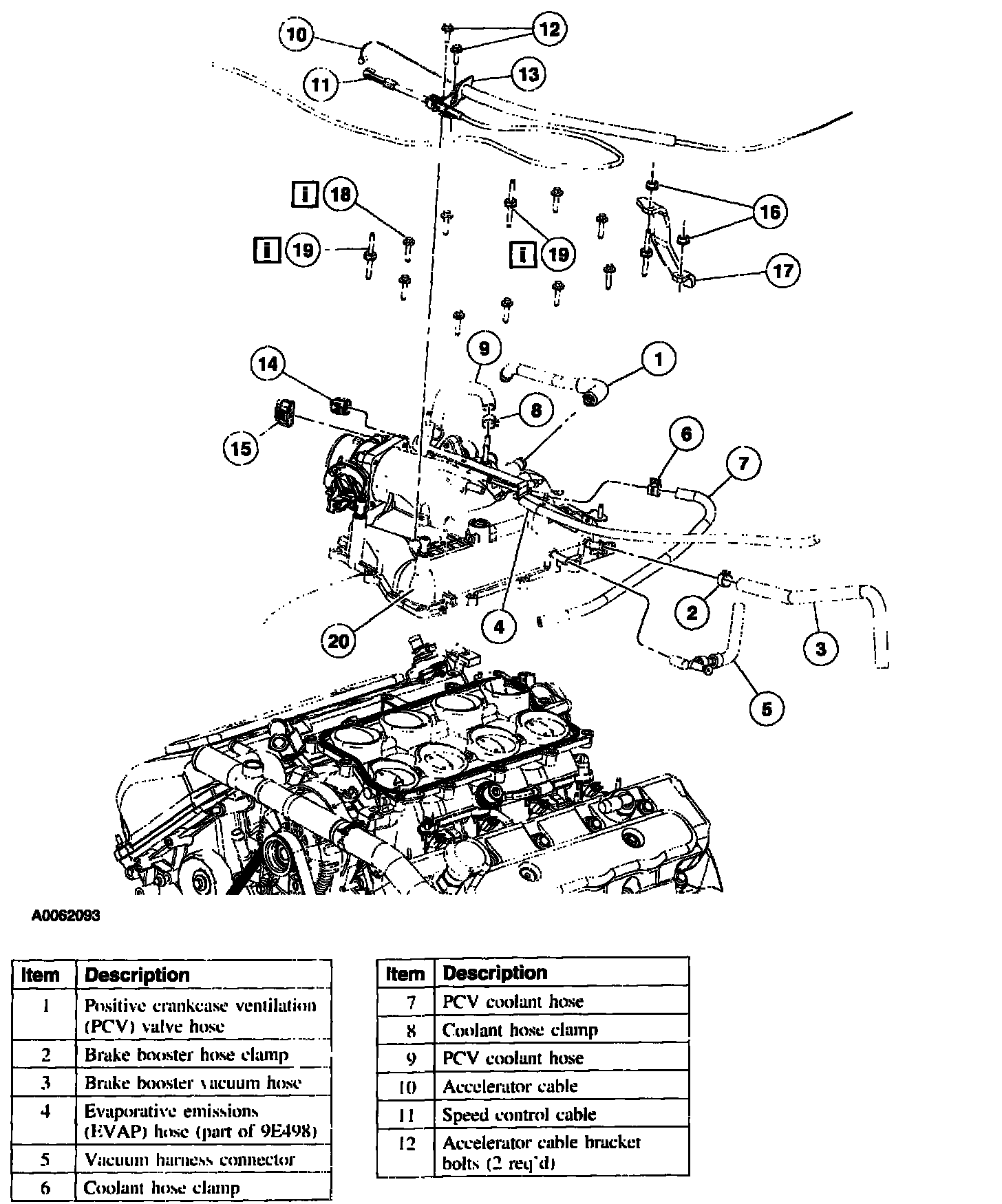

7. Remove the components in the order indicated in the illustration and table.
8. To install, reverse the removal procedure.
Items 18 and 19: Upper Intake Manifold Fasteners Installation Note
1. NOTE: Locations 5 and 9 use studs.

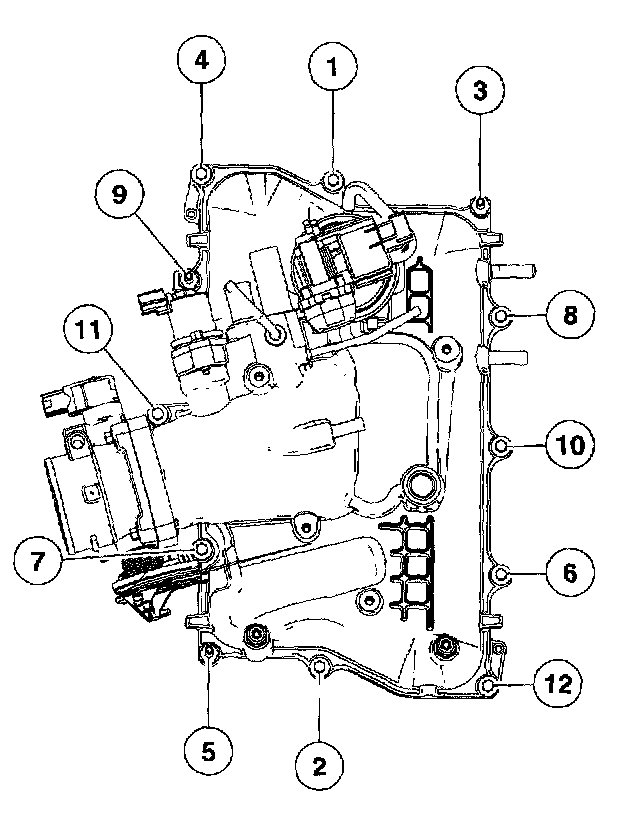

Tighten the bolts and studs in the sequence shown to 10 Nm (89 inch lbs.).
