Spark Plug: Service and Repair

IGNITION COIL-ON-PLUG AND SPARK PLUG

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the engine appearance cover.

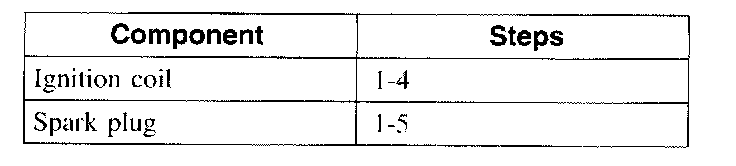

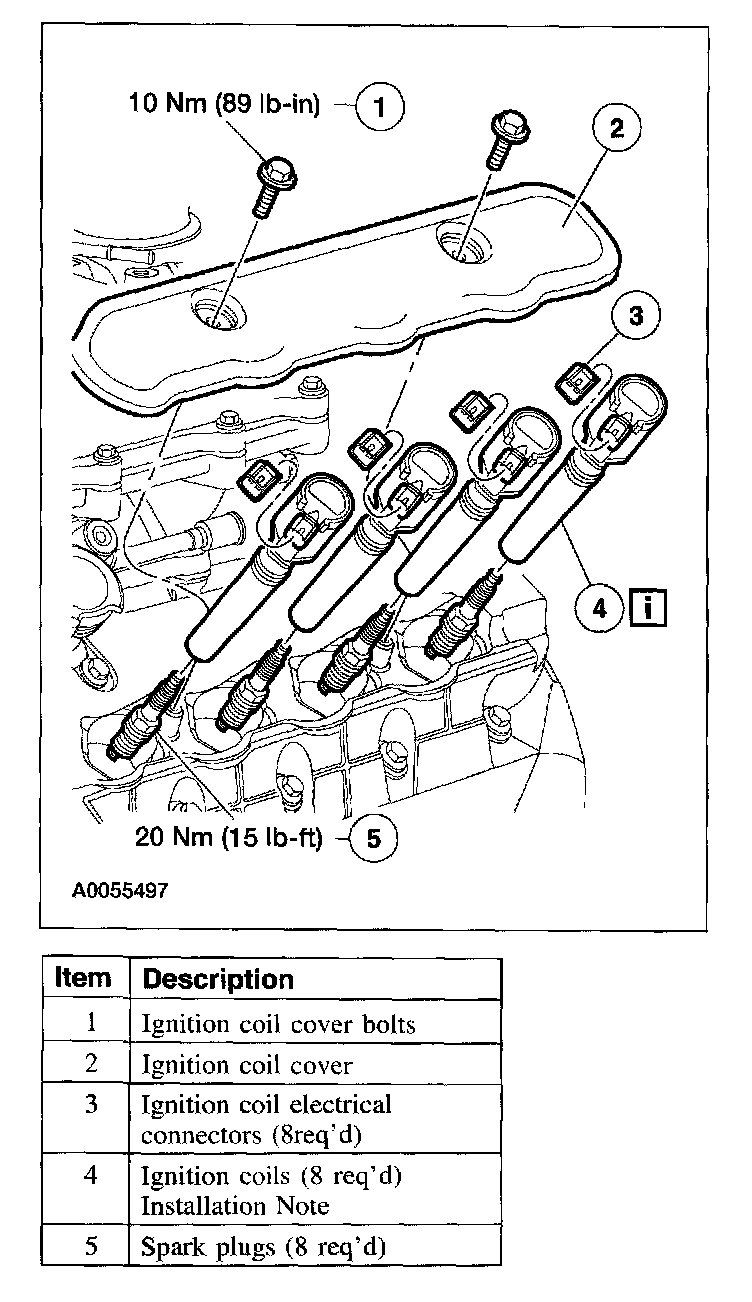

3. Remove the components in the order indicated in the illustration and table. To remove individual components, carry out only the listed steps.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: Ignition Coil Installation Note
1. Apply silicone dielectric compound to the inside of the ignition coil boots before installing.
