Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the right front door scuff plate.
3. Remove the right side cowl side trim panel.

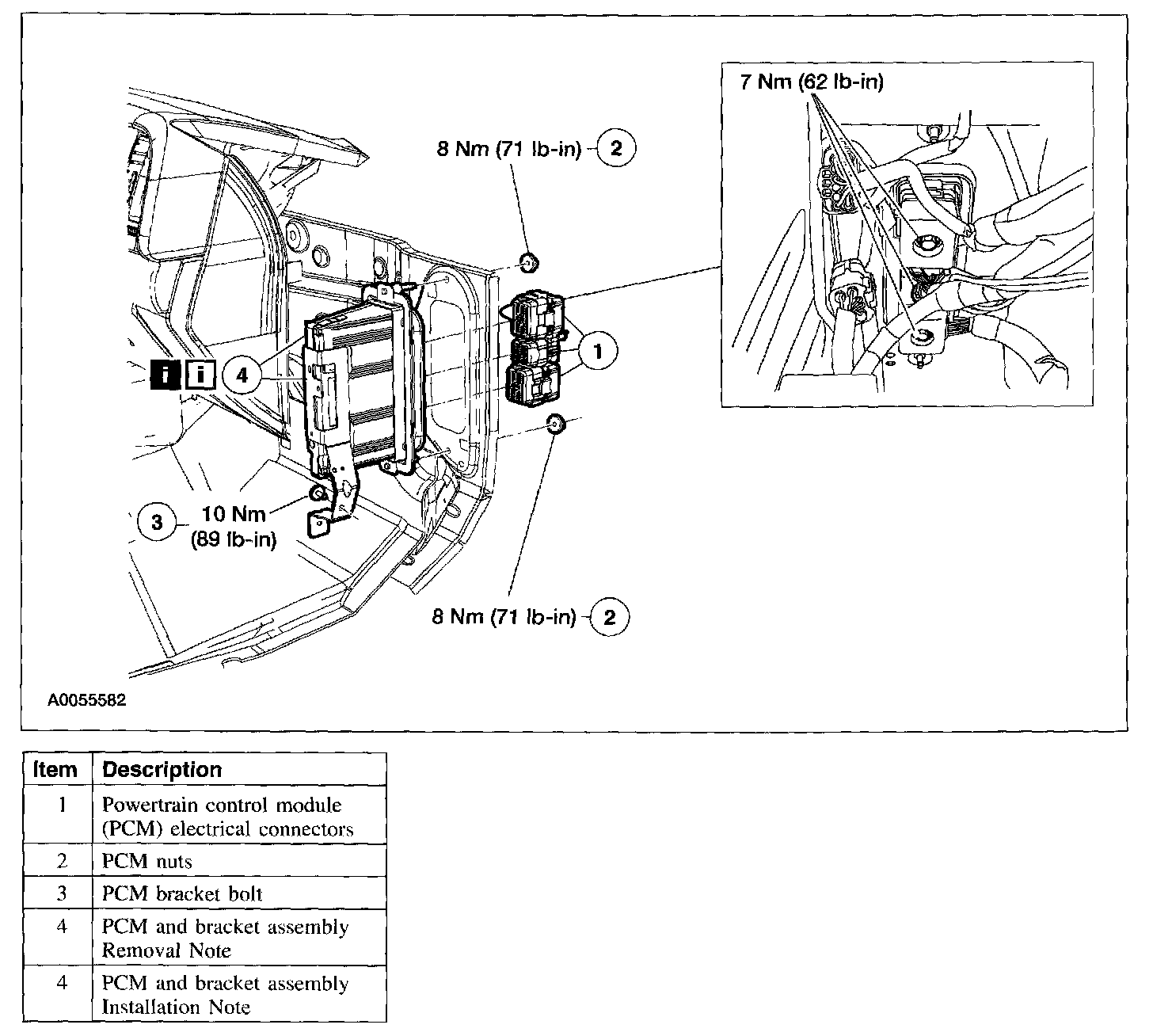

4. Remove the components in the order indicated in the illustration and table.

Item 4: PCM and Bracket Assembly Removal Note
1. Remove the PCM and bracket as an assembly.

INSTALLATION
1. To install, reverse the removal procedure.

Item 4: PCM and Bracket Assembly Installation Note
1. Install the PCM and bracket as an assembly.
