Extension Housing: Service and Repair

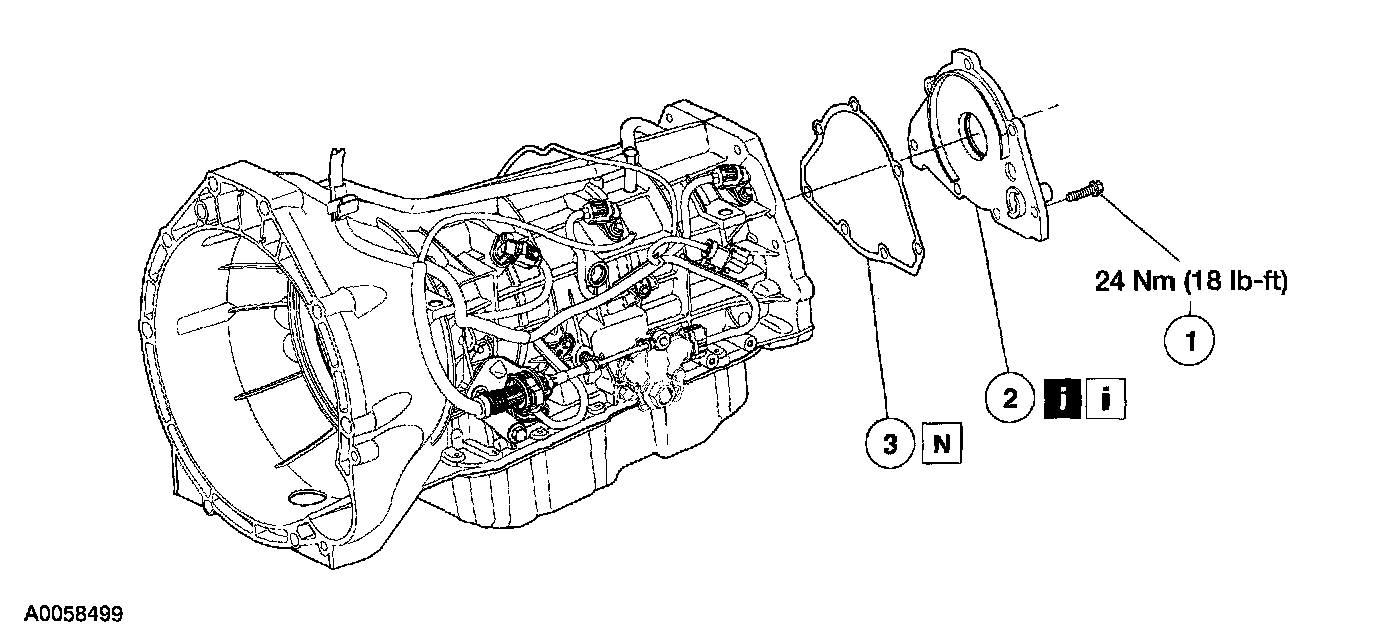

Extension Housing Gasket - 4x4Part 1 Of 2:
Part 2 Of 2:
1. Remove the transfer case assembly.
2. Remove the components in the order indicated in the following illustration and table.
3. To install, reverse the removal procedure.
4. Carry out fluid level check.
Item 2: Extension Housing Removal Note
1. CAUTION: The parking pawl, parking pawl return spring and parking pawl shaft could fall out during removal of the extension housing.
Remove the extension housing.
Item 2: Extension Housing Installation Note
1. CAUTION: Make sure the parking lever actuating rod is correctly seated into the case parking rod guide cup.
Install the extension housing.
