Removal and Replacement
WINDOW CONTROL SWITCH 1.

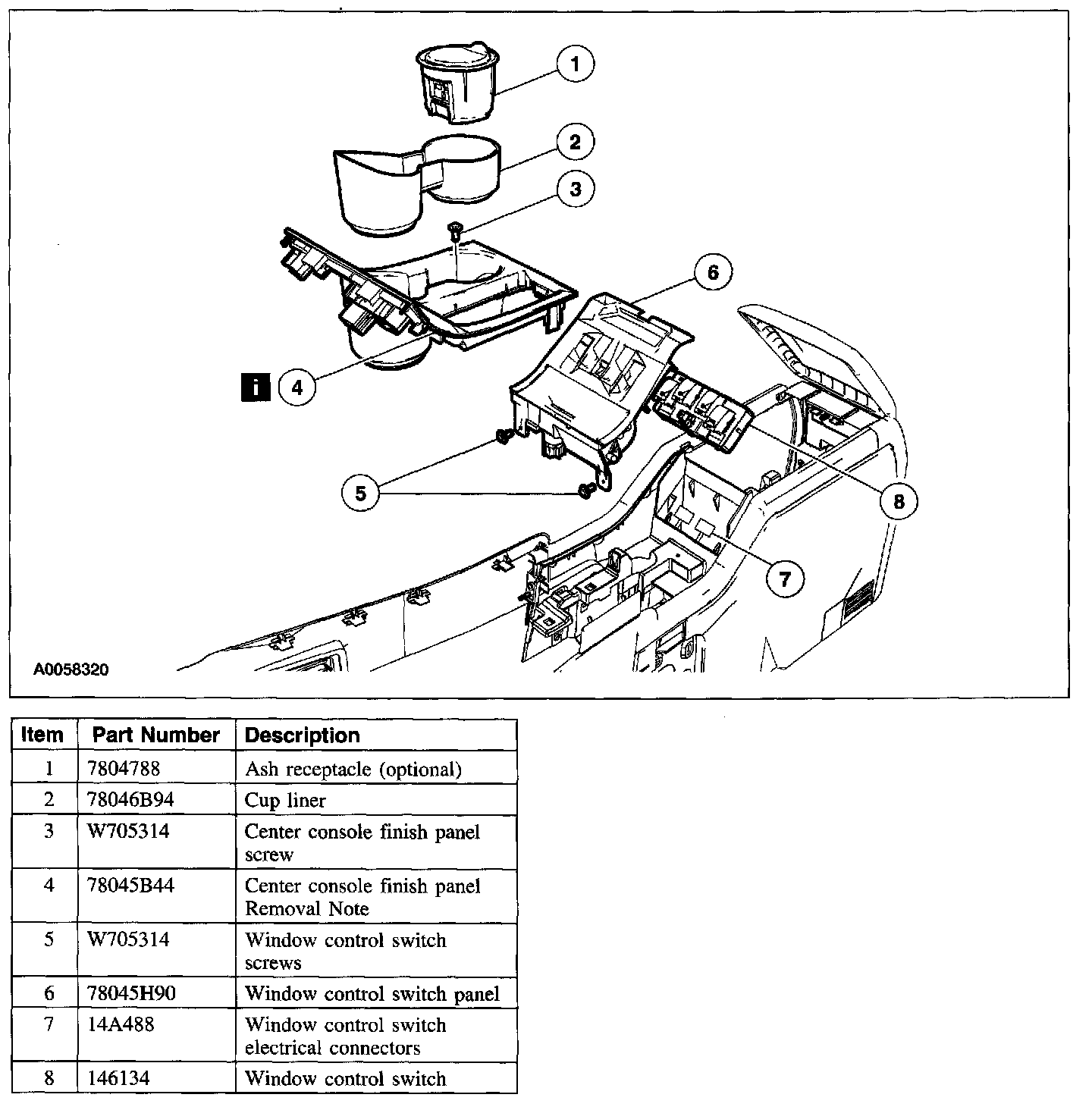

Remove the components in the order indicated in the illustration and table.
2.
To install, reverse the removal procedure.
Item 4: Center Console Finish Panel Removal Note 1.
Position aside the center console finish panel to access the window control switch panel screws.
