Drive Belt: Service and Repair

Accessory Drive Belt, Tensioner and Pulley

Removal and Installation
1. Remove the air cleaner outlet tube.

Part 1 Of 2:




Part 2 Of 2:

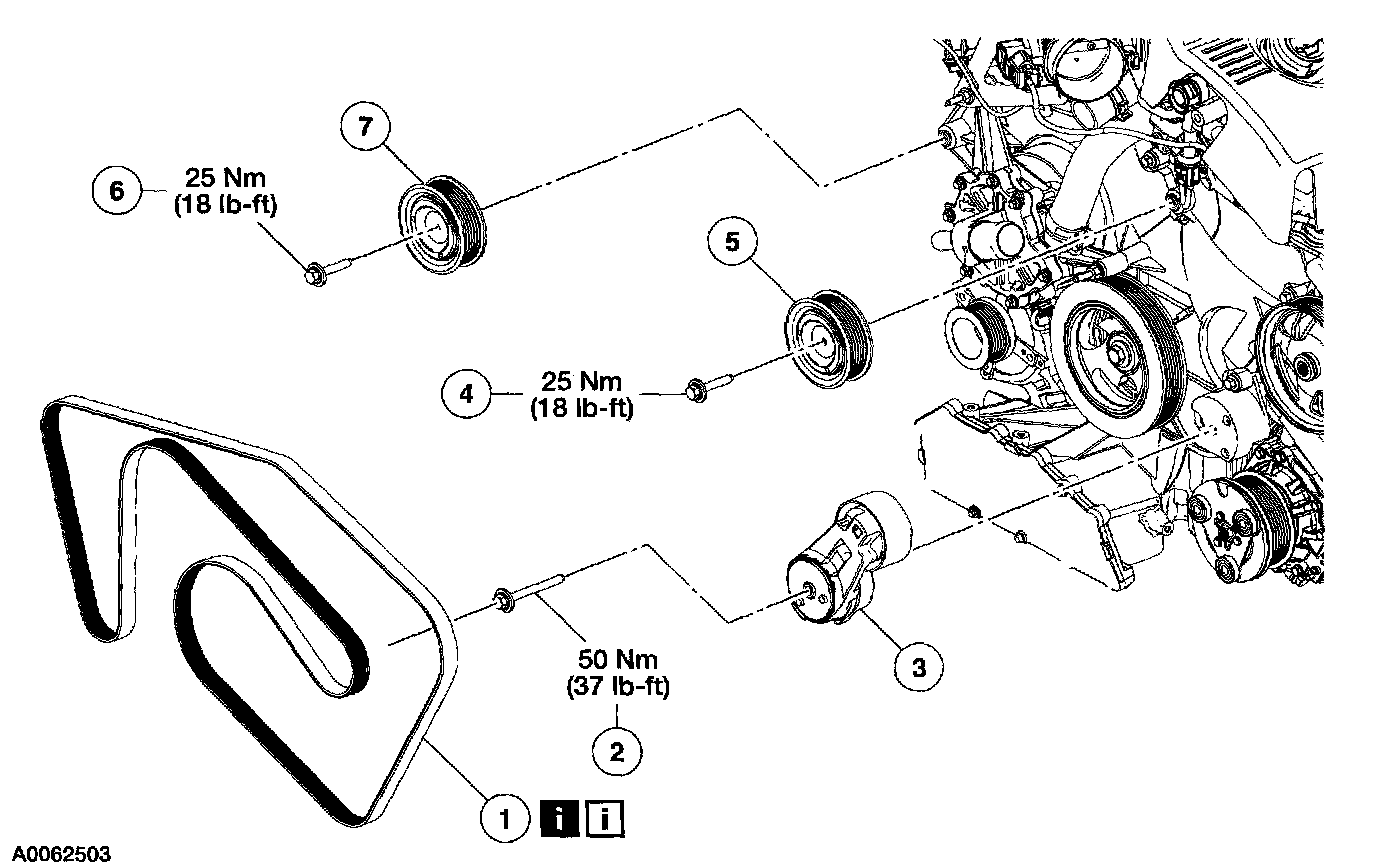

2. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.

Part 1 Of 2:




Part 2 Of 2:





3. To install, reverse the removal procedure.

Item 1: Accessory Drive Belt Removal Note
1. Rotate the accessory drive belt tensioner counterclockwise to remove the accessory drive belt.

Item 1: Accessory Drive Belt Installation Note

1. CAUTION: Incorrect drive belt installation will cause premature drive belt failure.

NOTE: Make sure the drive belt is correctly installed on each pulley.

Rotate the accessory drive belt tensioner counterclockwise to install the accessory drive belt.
