Variable Valve Timing Actuator: Service and Repair

Variable Camshaft Timing (VCT) System Oil Filter

1. Remove the LH valve cover.
2. Remove the RH valve cover.

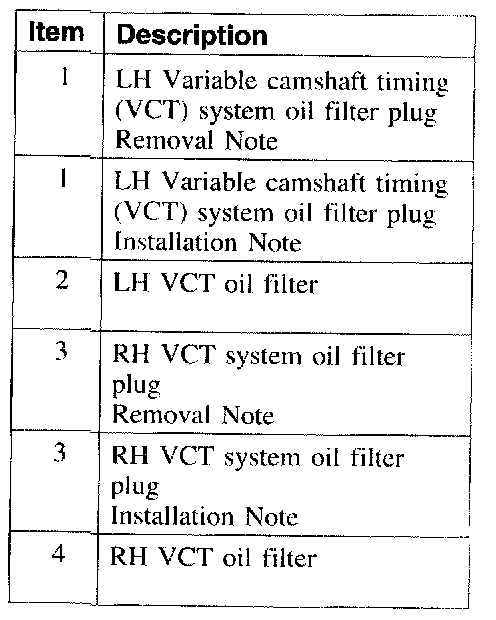

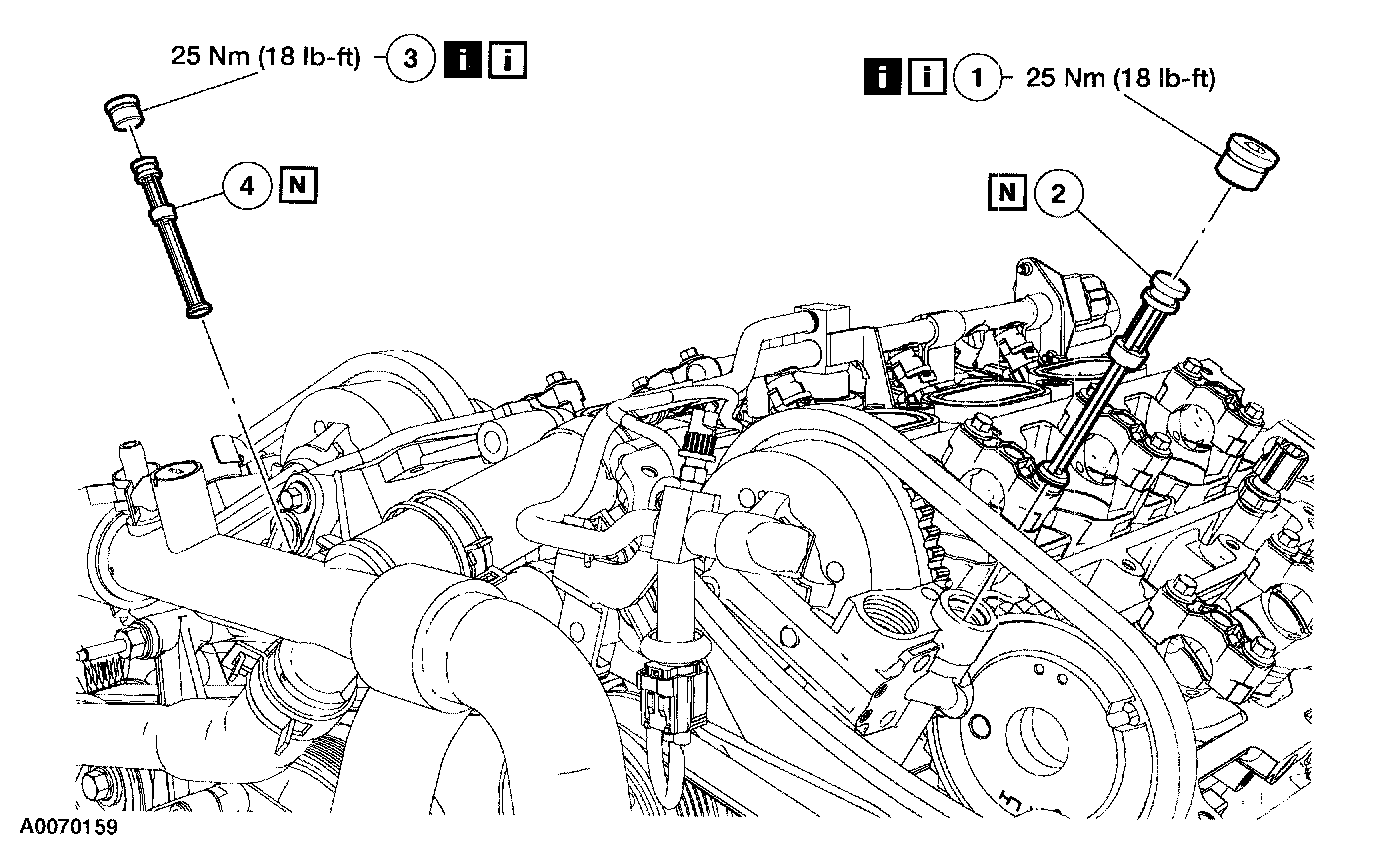

3. Remove the components in the order indicated in the illustration and table.

Part 1 Of 2:




Part 2 Of 2:





4. To install, reverse the removal order.

Items 1 and 3: Variable Camshaft Timing (VCT) System Oil Filter Cap Removal Note





1. NOTE: LH is shown, RH is similar.

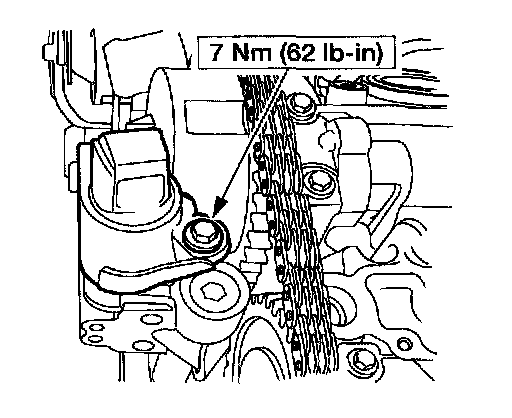

Remove the bolt and the Variable Camshaft Timing (VCT) solenoid.

Items 1 and 3: VCT System Oil Filter Cap Installation Note





1. NOTE: LH is shown, RH is similar.

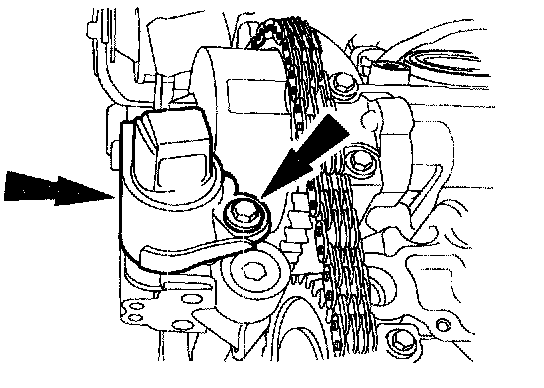

Install VCT solenoid and the bolt.
