EGR Valve: Service and Repair

Exhaust Gas Recirculation (EGR) Valve

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.

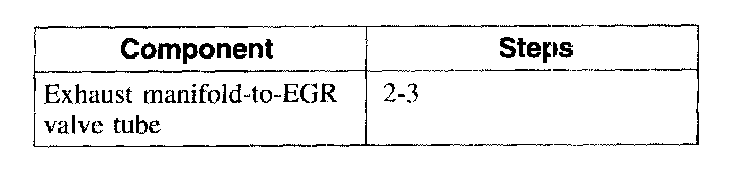

Part 1 Of 2:

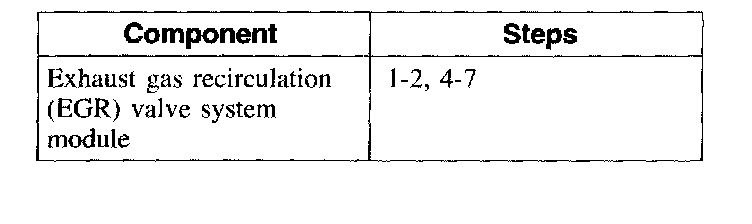

Part 2 Of 2:

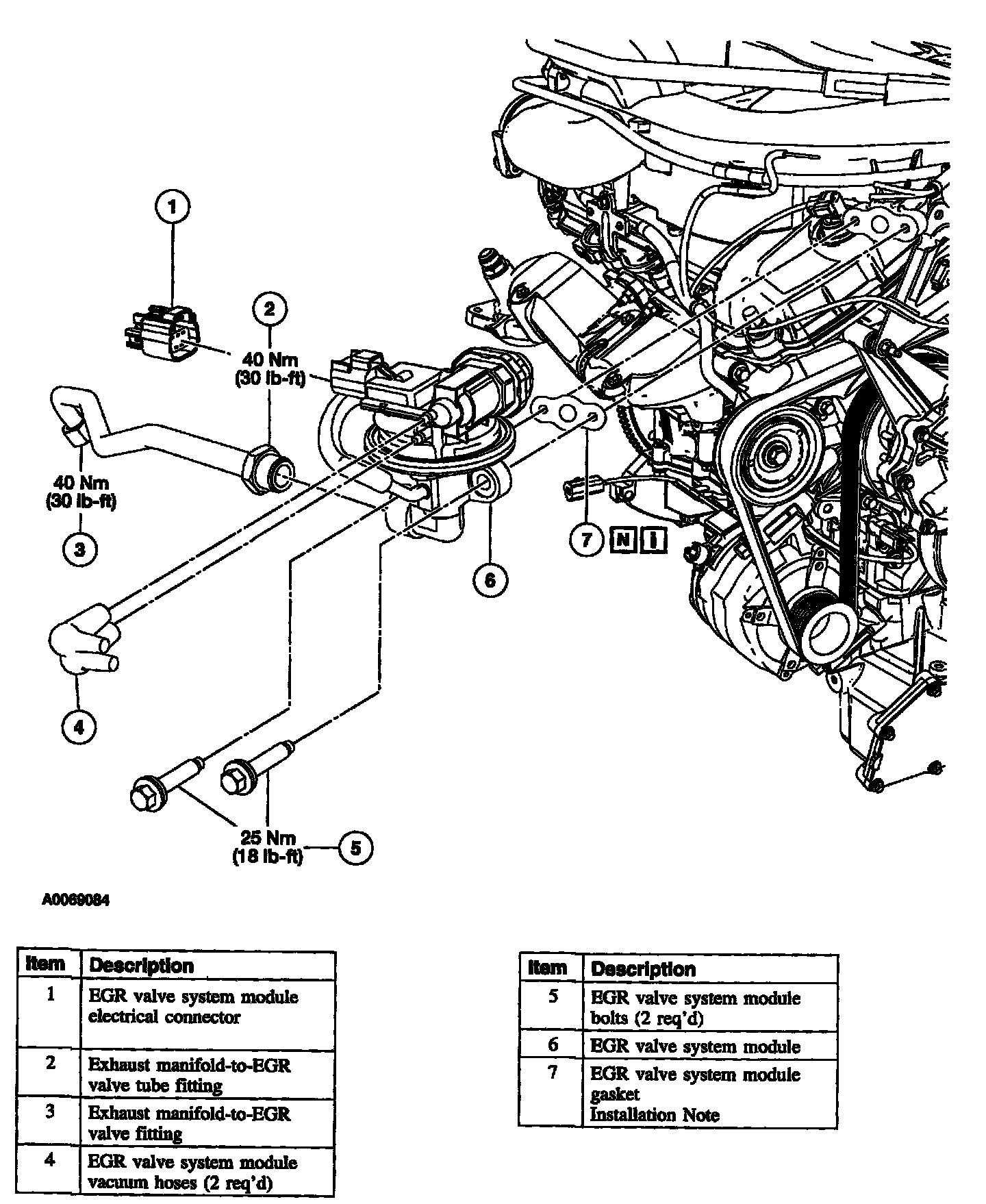

2. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.





3. To install, reverse the removal procedure.

Step 7: EGR Valve System Module Gasket Installation Note

1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of gasket material.

Clean the EGR valve system module gasket mating surfaces. Install a new gasket.
