Antitheft and Alarm Systems: Service and Repair

PASSIVE ANTI-THEFT SYSTEM (PATS) TRANSCEIVER

REMOVAL
1. Disconnect the battery ground cable.
2. Remove the instrument cluster.

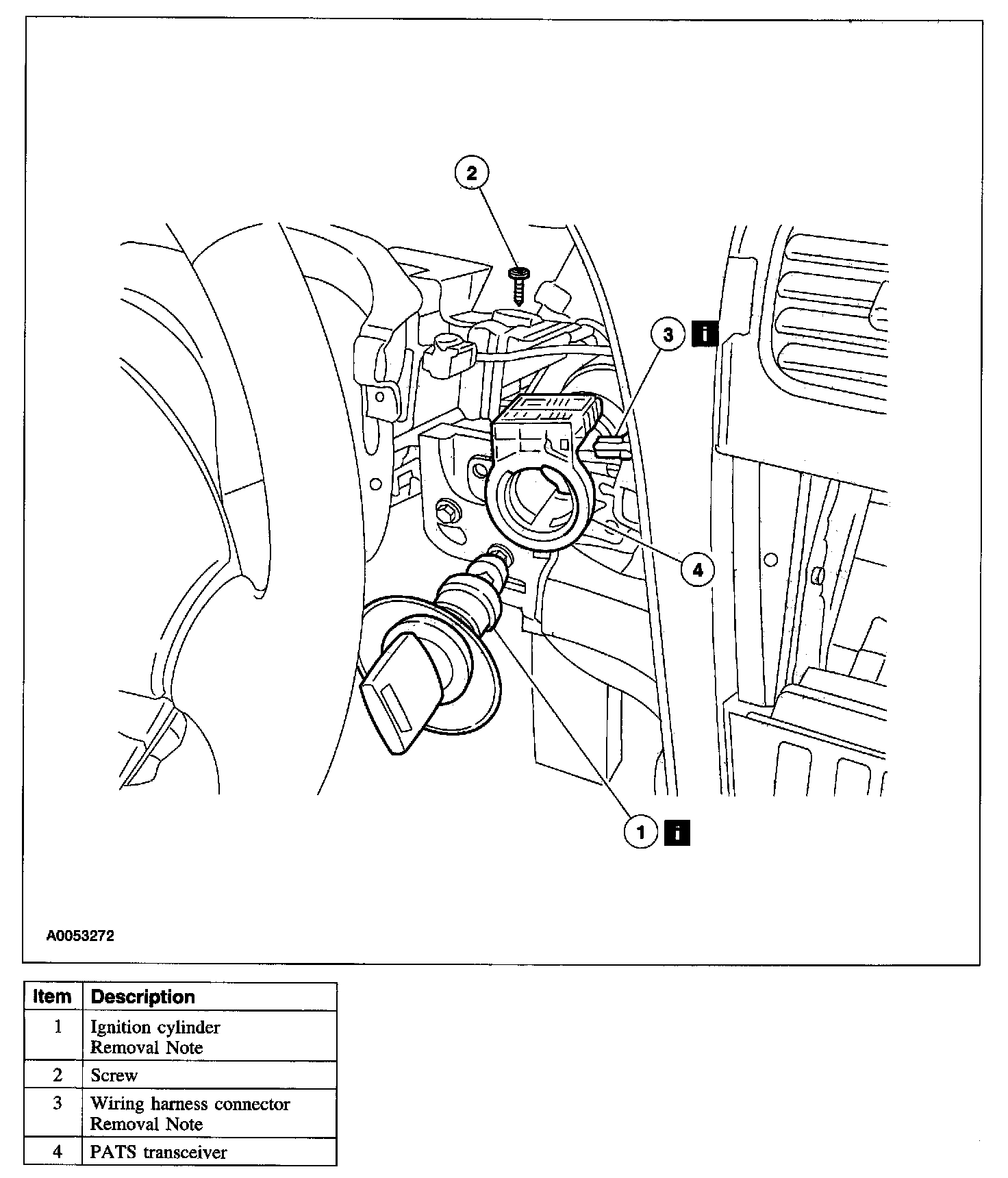

3. Remove the components in the order indicated in the illustration and table.

Item 1: Ignition Cylinder Removal Note
1. Key in ON position.
2. Push the tab on the left side of the cylinder housing to release the cylinder.

Item 3: Wiring Harness Connector Removal Note
1. Position the transceiver ring toward the steering column to access the connector.

INSTALLATION
1. Install in the reverse order of removal.
