Trim Panel: Service and Repair

INTERIOR TRIM PANELS

Torx Bit, Safety Belt Bolt:

SPECIAL TOOL(S)

REMOVAL







1. To remove individual components only, carry out the listed steps.

Part 1:

Part 2:

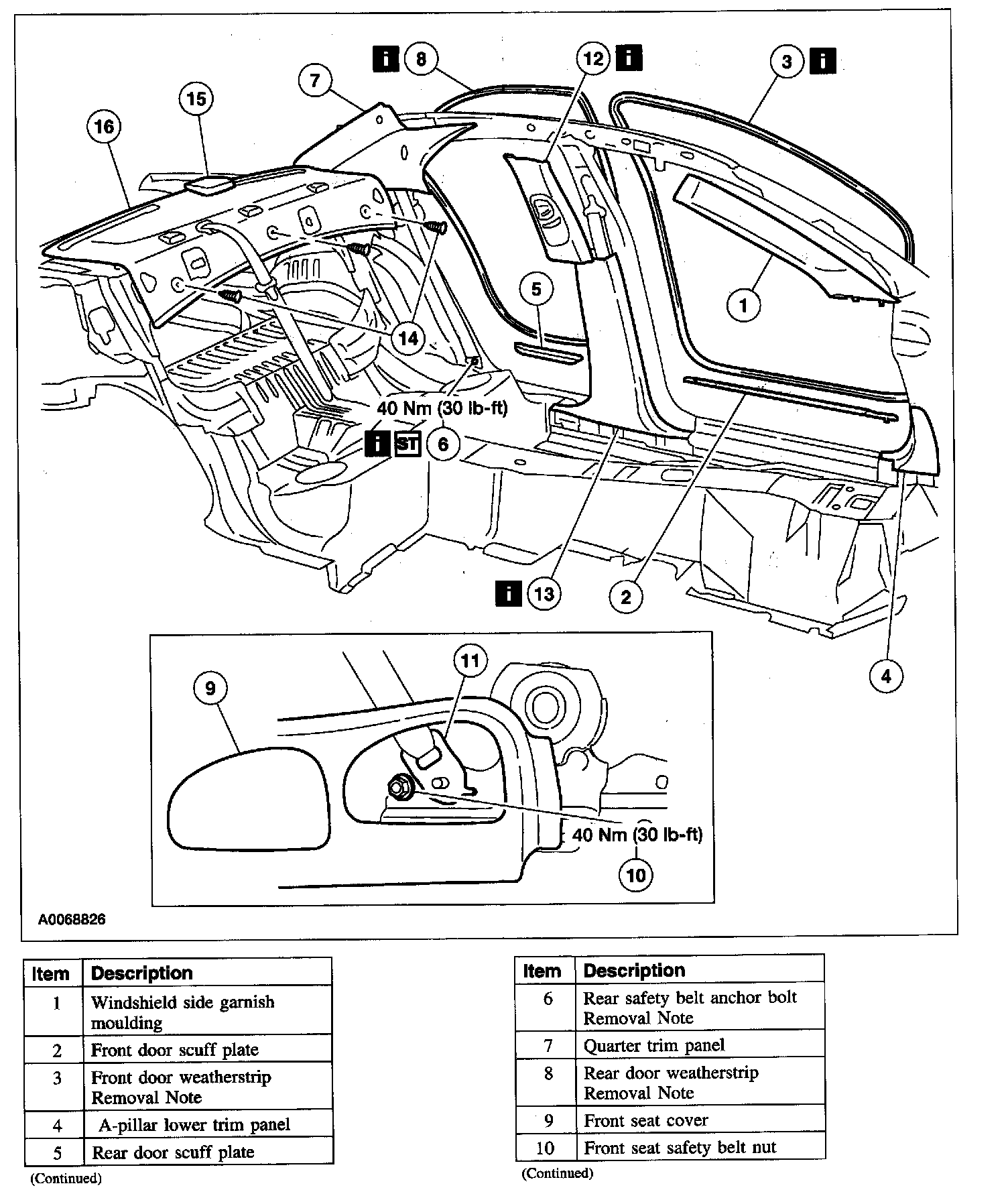

2. Remove the components in the order indicated in the illustration and table.

Item 3: Front Door Weatherstrip Removal Note
1. Position the weatherstrip aside.

Item 6: Rear Safety Belt Anchor Bolt Removal Note
1. Remove the seat bolster.







2. Using the special tool, remove the rear safety belt anchor bolt.

Item 8: Rear Door Weatherstrip Removal Note
1. Position the weatherstrip aside.

Item 12: Upper B-pillar Trim Panel Removal Note
1. If the supplemental restraint system (side air curtains) has deployed, check the upper B-pillar trim panel for damage.

Item 13: Lower B-pillar Trim Panel Removal Note
1. If the supplemental restraint system (side air curtains) has deployed, check the lower B-pillar trim panel for damage.

INSTALLATION
1. To install, reverse the removal procedure.
