Test E

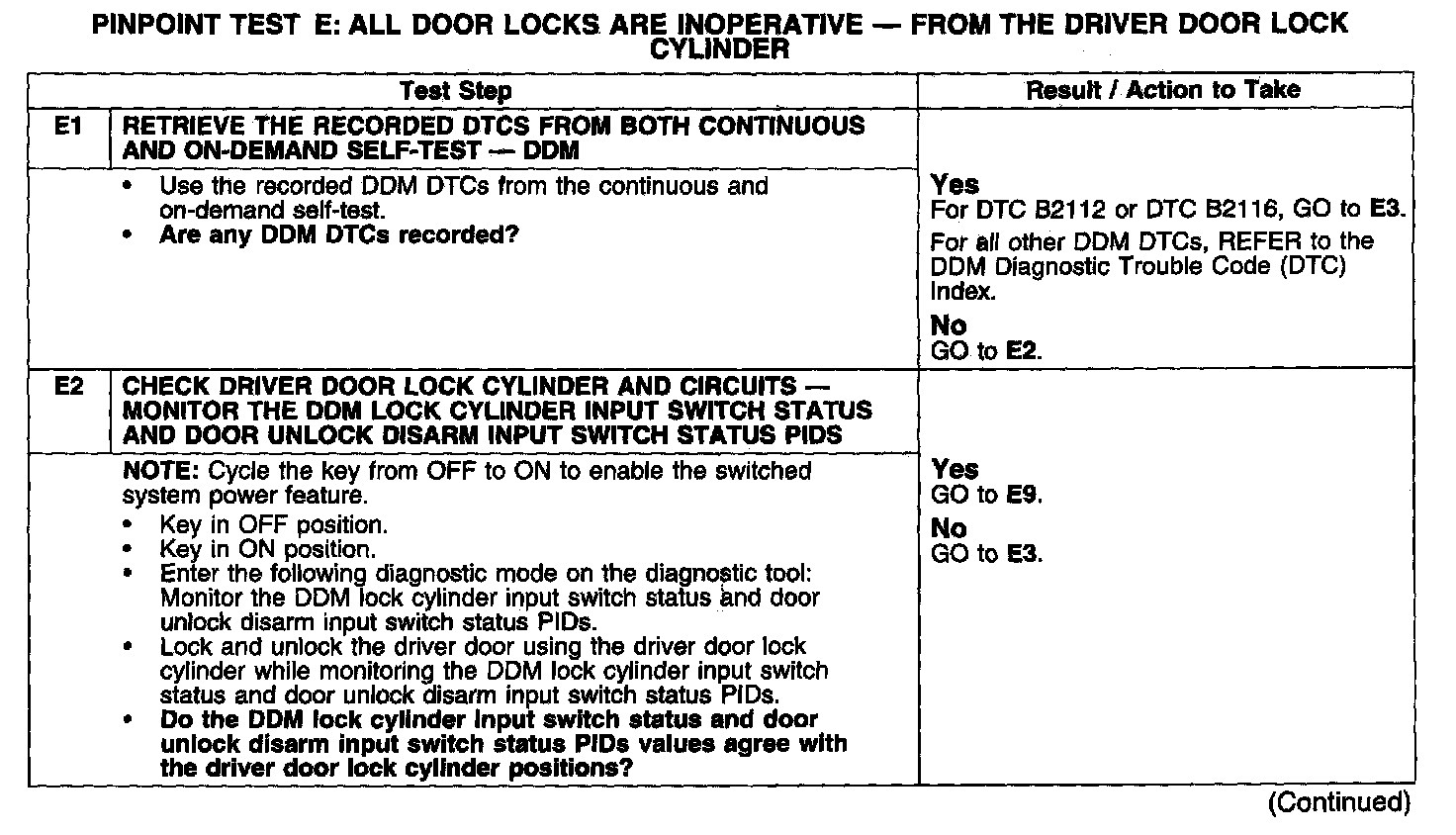

PINPOINT TEST E: ALL DOOR LOCKS ARE INOPERATIVE - FROM THE DRIVER DOOR LOCK CYLINDERTest E1-E2:
Test E3-E4:

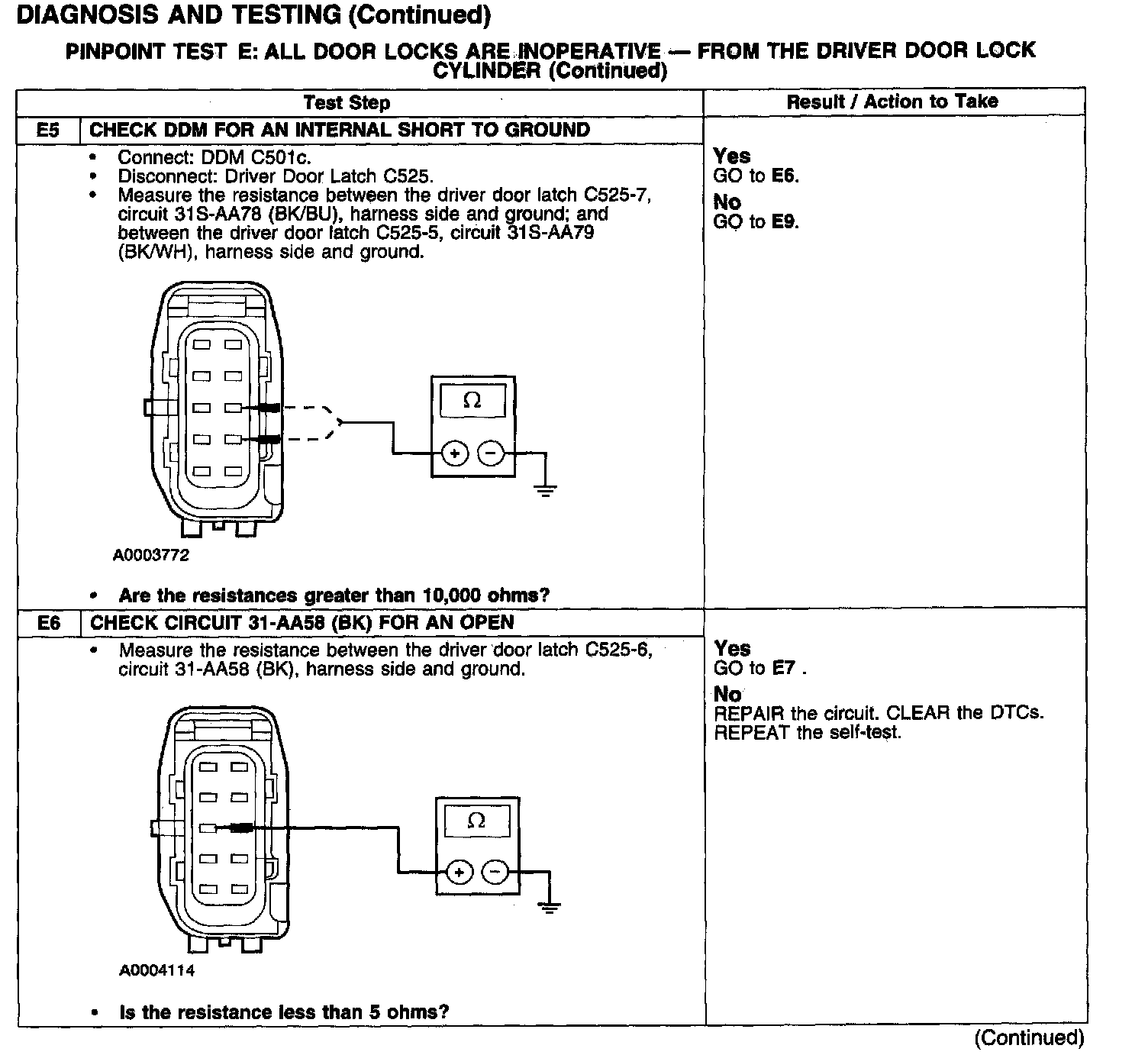

Test E5-E6:

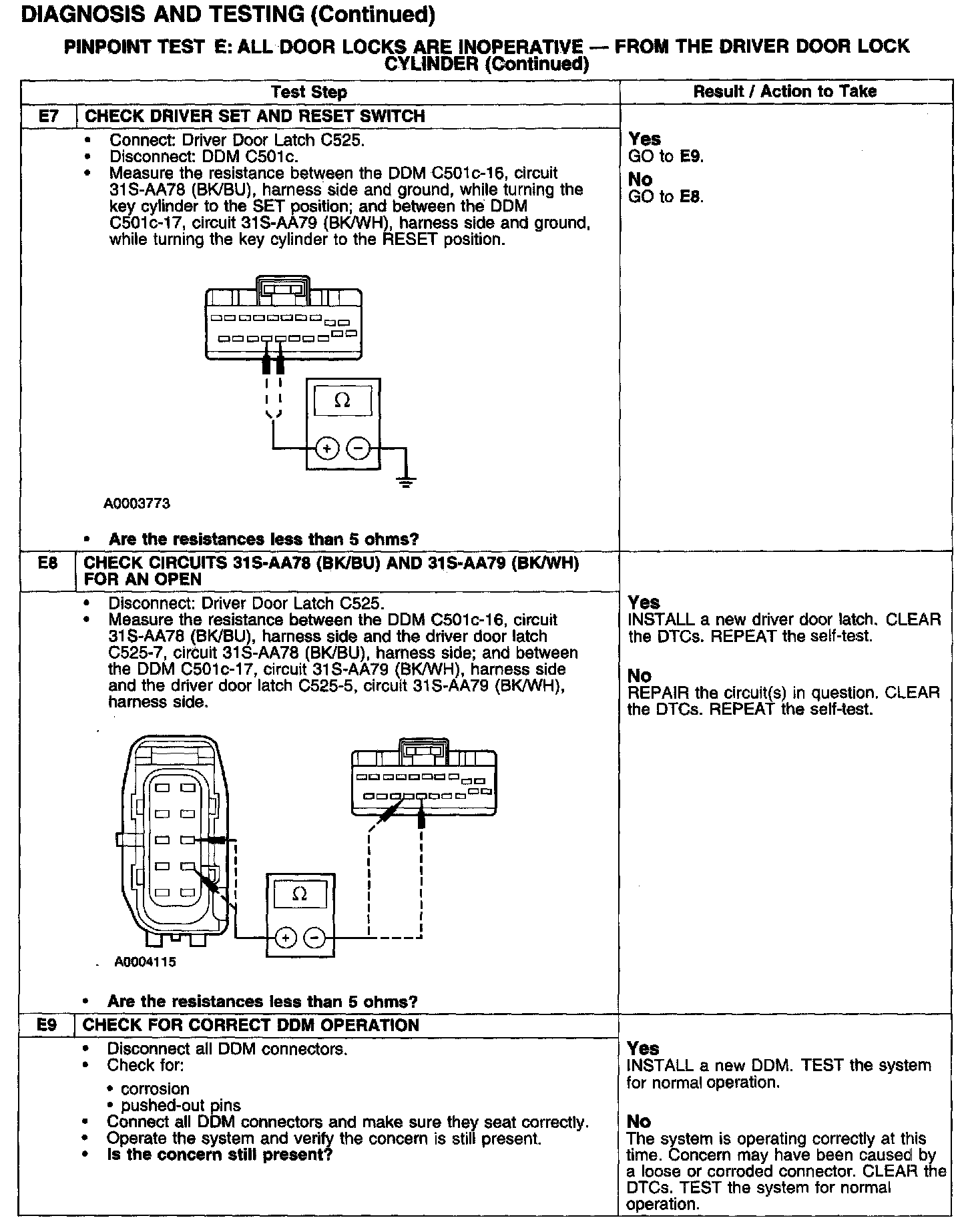

Test E7-E9:
Normal Operation
When the driver door lock cylinder is turned once to either lock or unlock position, the driver set/reset switch grounds either circuit 31S-AA78 (BK/BU) for the lock command or circuit 31S-AA79 (BK/WH) for the unlock command through circuit 31-AA58 (BK) to the driver door module (DDM). The DDM will lock and unlock the driver door. When a global lock/unlock command is requested through driver door lock cylinder, the driver set/reset switch grounds either circuit 31S-AA78 (BK/BU) for the lock command or circuit 31SAA79 (BK/WH) for the unlock command through circuit 31-AA58 (BK) to the driver door module (DDM). The DDM will lock or unlock the driver door and send an SCP message to the rear electronic module (REM) to lock/unlock the passenger doors.
Possible Causes
- DTC B2112, door driver set switch stuck failure
- DTC B2116, door driver reset switch stuck failure
- circuit 31-AA58 (BK) open
- circuit 31S-AA78 (BK/BU) open or a short to ground
- circuit 31S-AA79 (BK/WH) open or a short to ground
- driver door latch (driver set/reset switch)
- DDM
