Test F

PINPOINT TEST F: A SINGLE DOOR LOCK IS INOPERATIVE - DRIVER DOOR

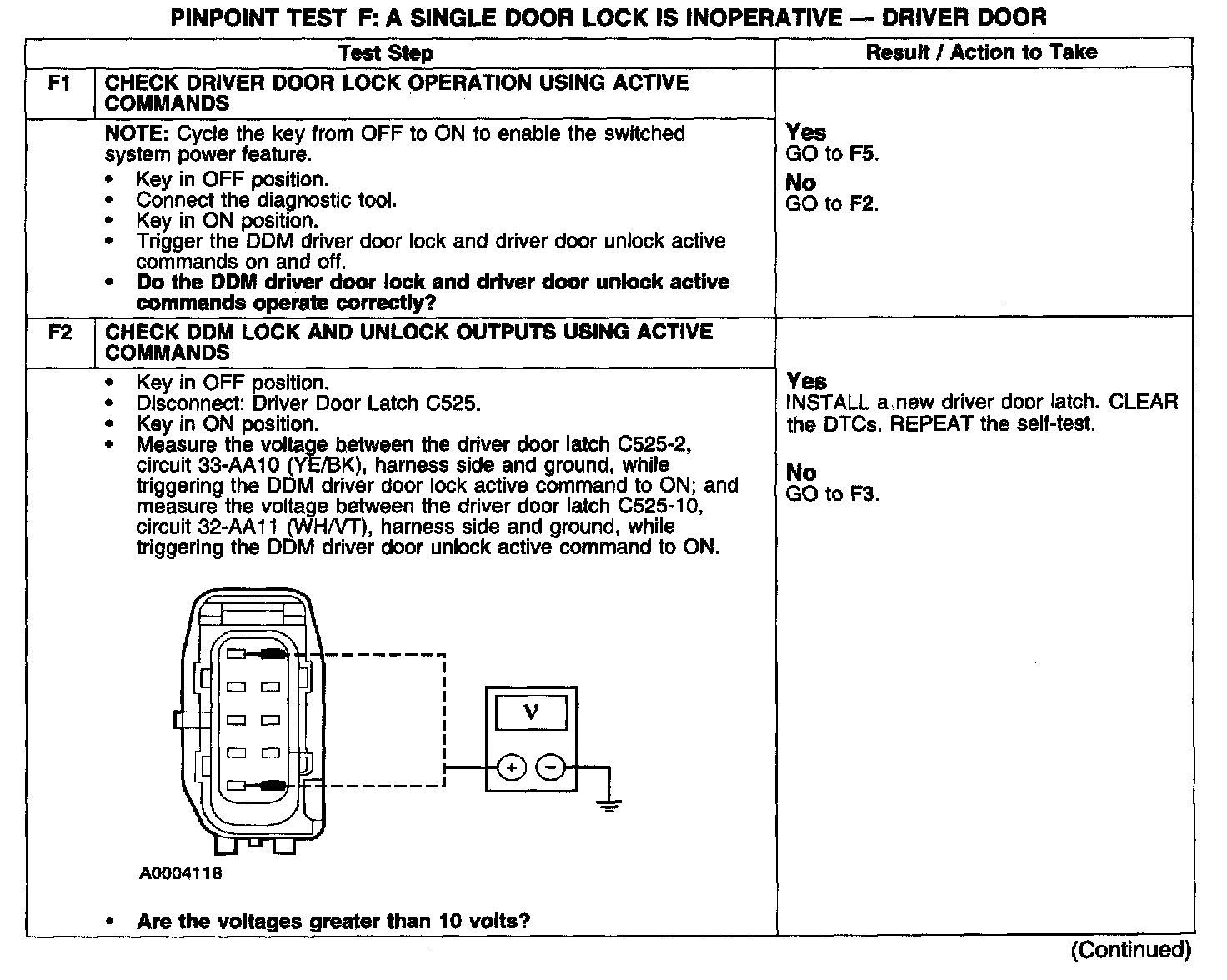

Test F1-F2:

Test F3-F5:

Normal Operation
The driver door module (DDM) receives lock/unlock inputs from the driver door lock control switch, passenger door lock control switch (through the rear electronic module), remote transmitter or keyless entry keypad. The DDM will then lock/unlock the driver door by utilizing circuit 33-AA10 (YE/BK) and circuit 32-AA11 (WH/VT).

Possible Causes
- circuit 33-AA10 (YE/BK) shorted to ground or open
- circuit 32-AA11 (WH/VT) shorted to ground or open
- driver door latch
- DDM
