Test L
PINPOINT TEST L: PANIC FEATURE IS INOPERATIVETest L1:

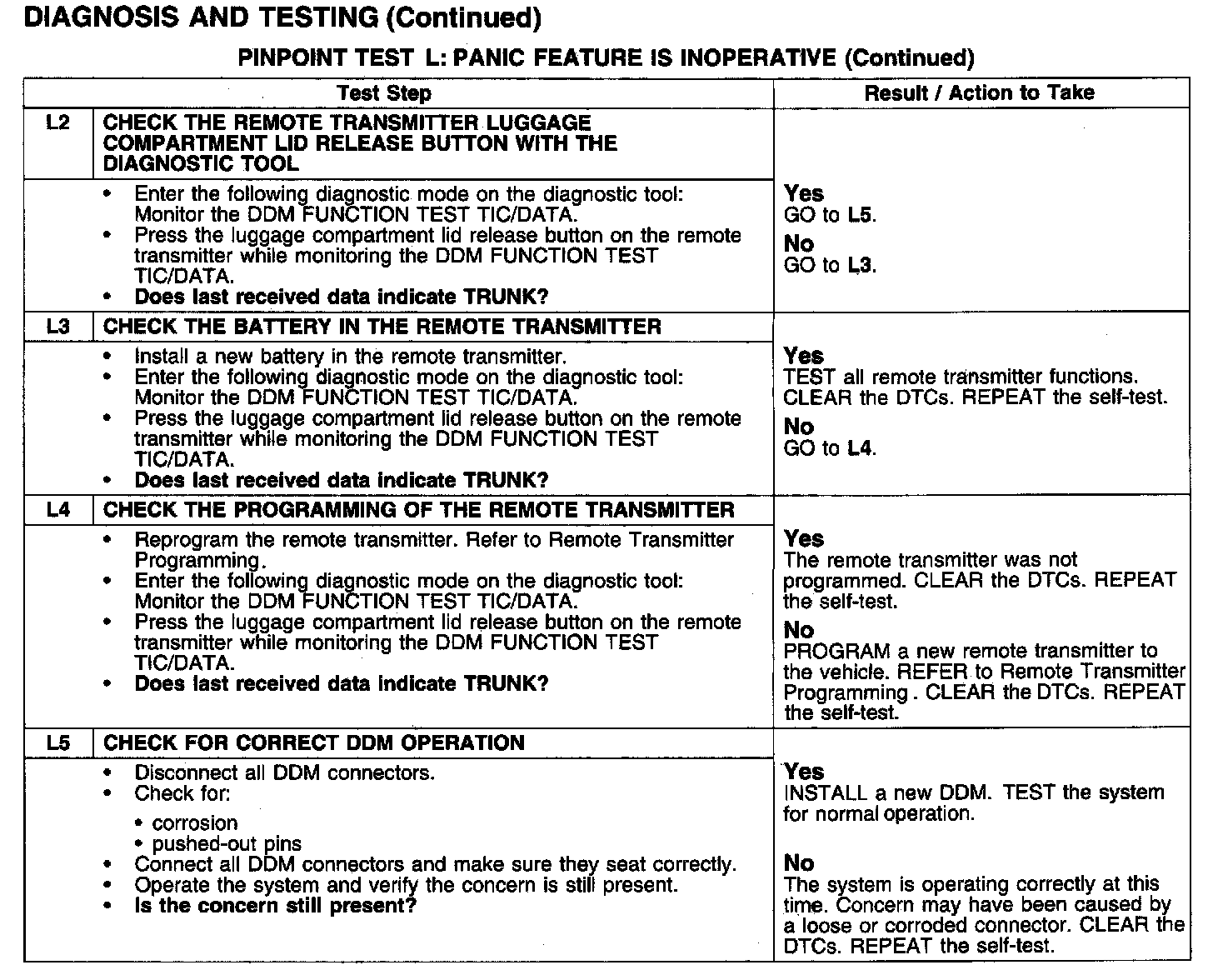

Test L2-L5:
Normal Operation When the panic button on the remote transmitter is pressed, it sends a signal to the driver door module (DDM) which sends the information to the front electronic module (FEM) to activate the alarm.
Possible Causes -
remote transmitter battery
-
remote transmitter programming
-
DDM
