Test O

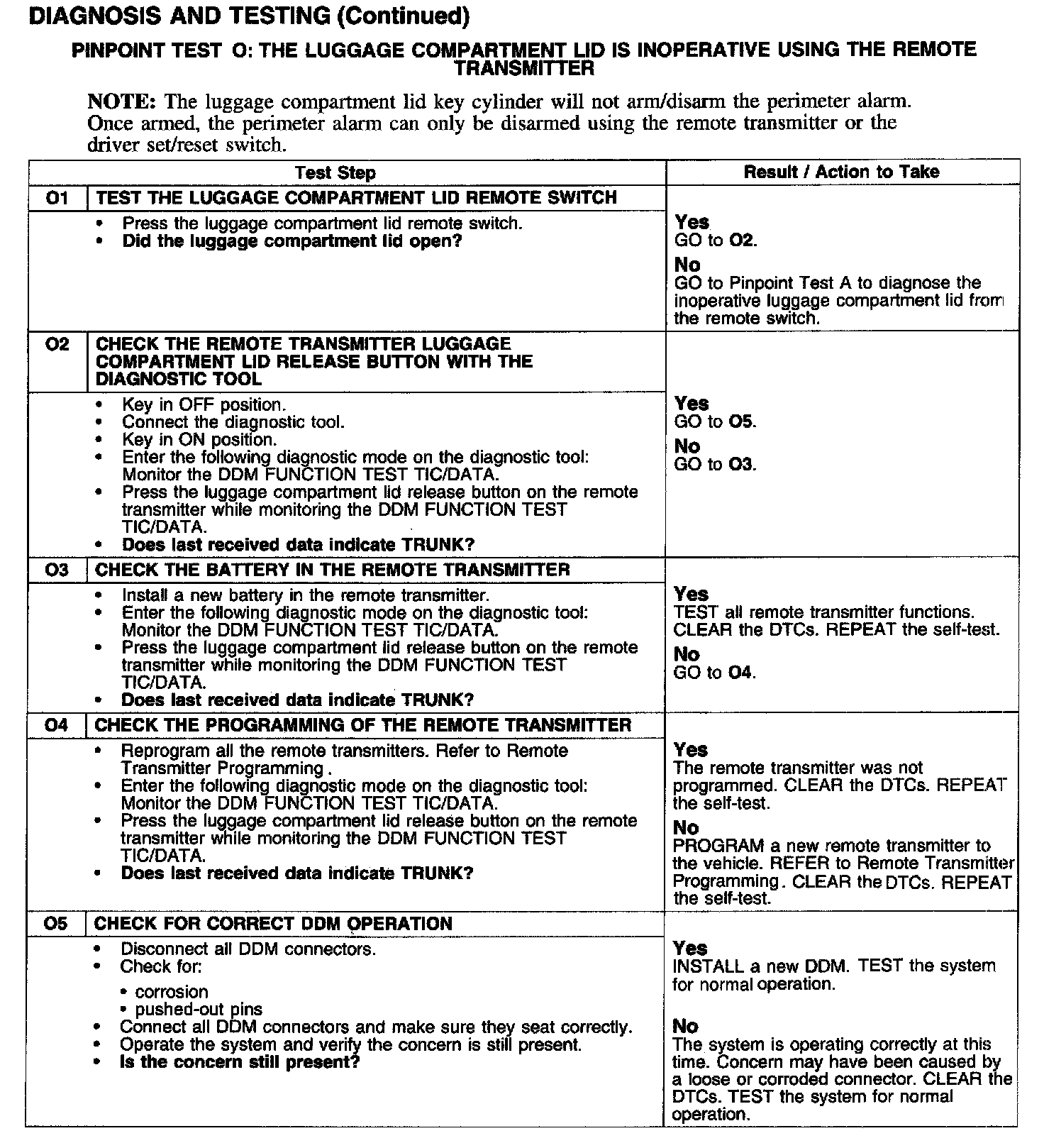

PINPOINT TEST O: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE USING THE REMOTE TRANSMITTER

Test O1-O5:

Normal Operation
When the luggage compartment lid release button on the remote transmitter is pressed it sends a signal to the driver door module (DDM) which sends a message through the SCP network to the rear electronic module (REM) to energize the luggage compartment lid actuator.

Possible Causes
- remote transmitter battery
- remote transmitter programming
- remote transmitter association with a memory position
- DDM
