Test P

PINPOINT TEST P: THE MEMORY SEAT DOES NOT OPERATE CORRECTLY USING THE REMOTE TRANSMITTER

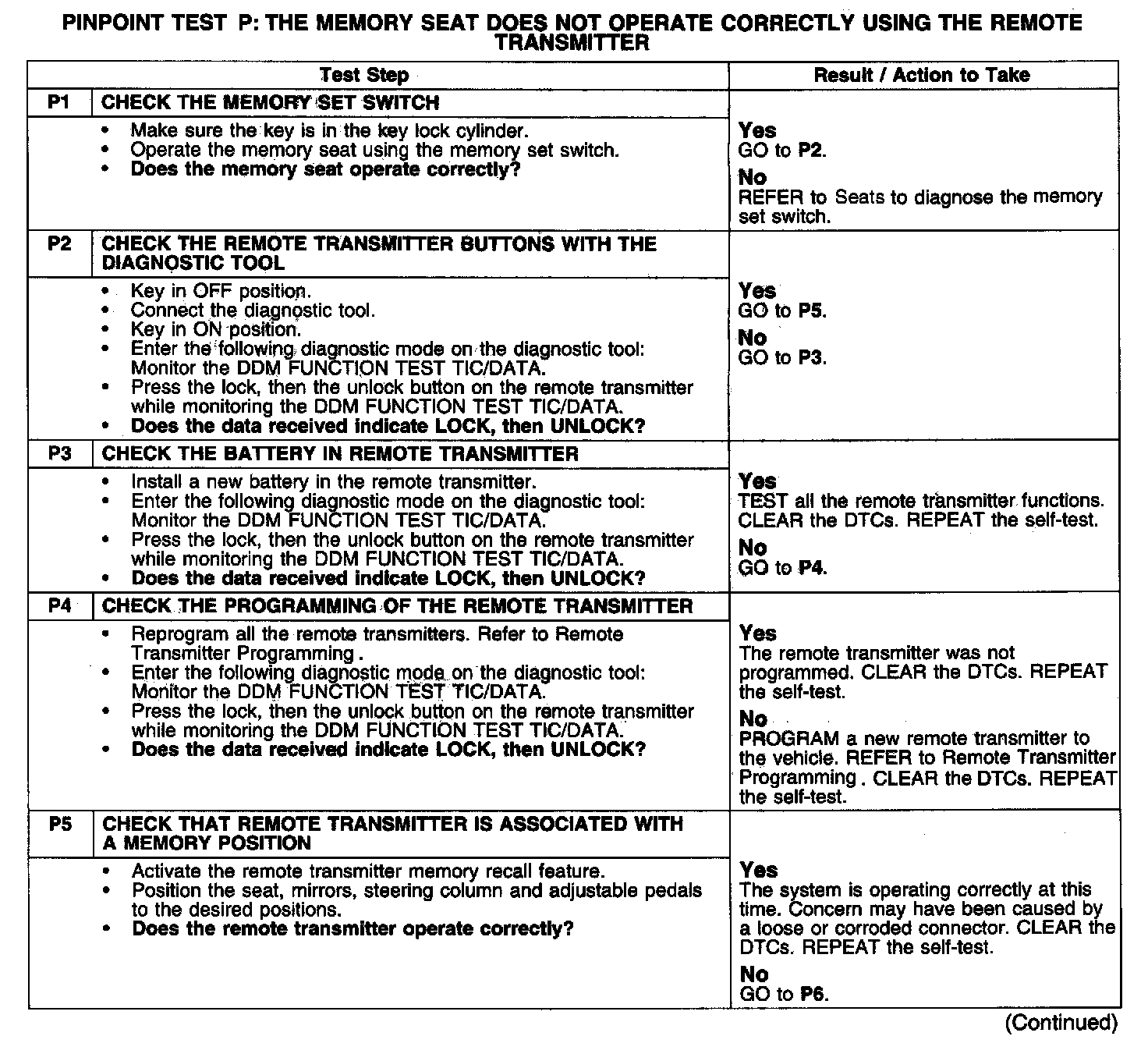

Test P1-P5:

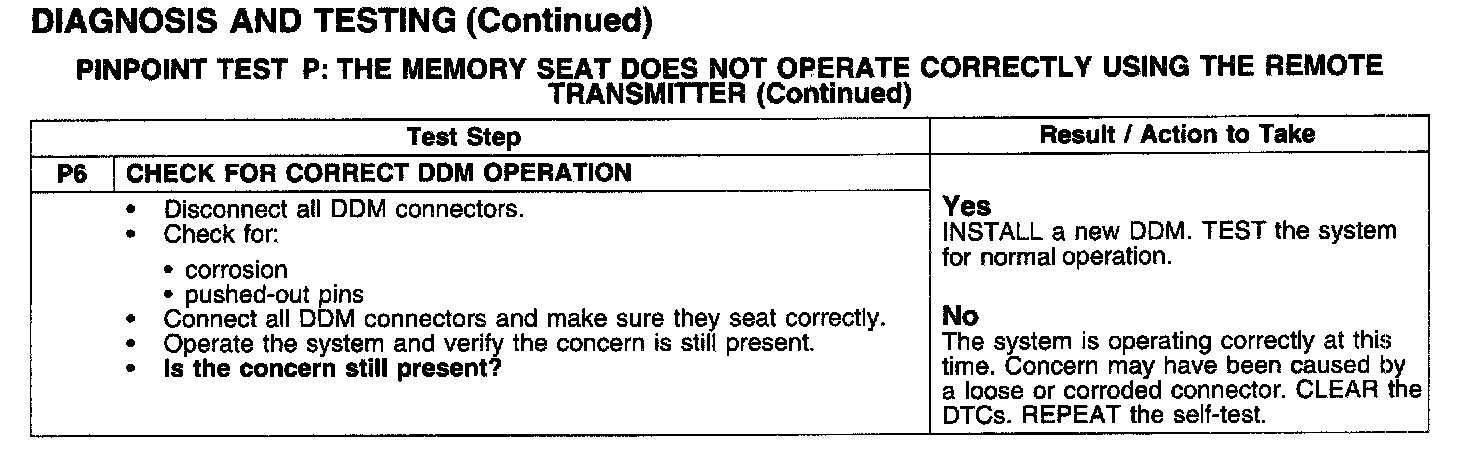

Test P6:

Normal Operation
When the UNLOCK button on the remote transmitter is pressed it sends a signal to the DDM to initiate the memory seat function if the transmitter has been associated with a memory position.

Possible Causes
- remote transmitter battery
- remote transmitter programming
- remote transmitter association with a memory position
- DDM
