Power Mirror Switch: Service and Repair

EXTERIOR MIRROR CONTROL SWITCH

REMOVAL

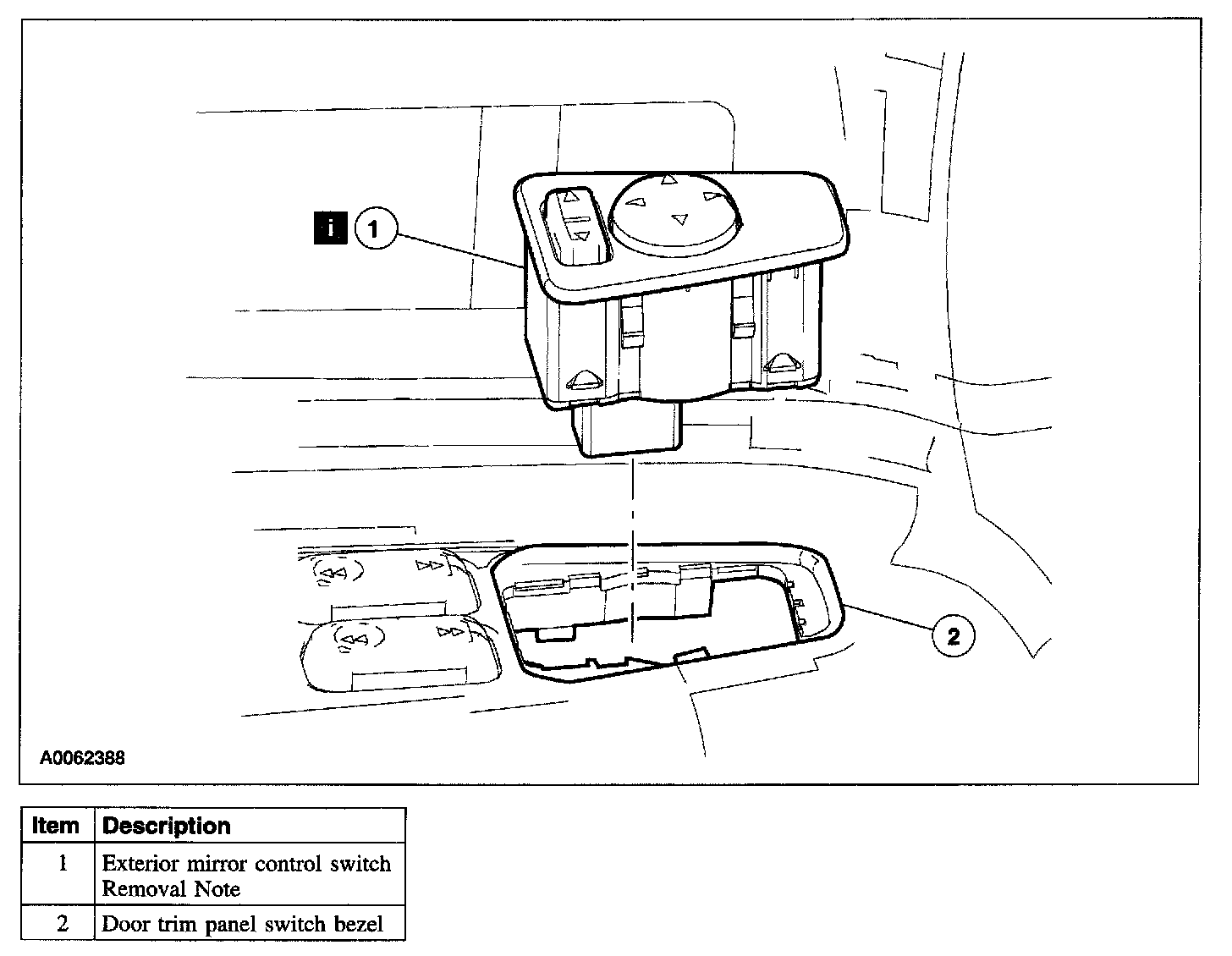

1. Remove the components in the order indicated in the illustration and table.

Item 1: Exterior Mirror Control Switch Removal Note
1. Lift up on the front of the door trim panel switch bezel and press the retaining tabs to remove the exterior mirror control switch.
2. Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
