Rear Seat Backrest
REAR SEAT BACKRESTDISASSEMBLY
1. Remove the rear seat backrest.
Part 1:
Part 2:

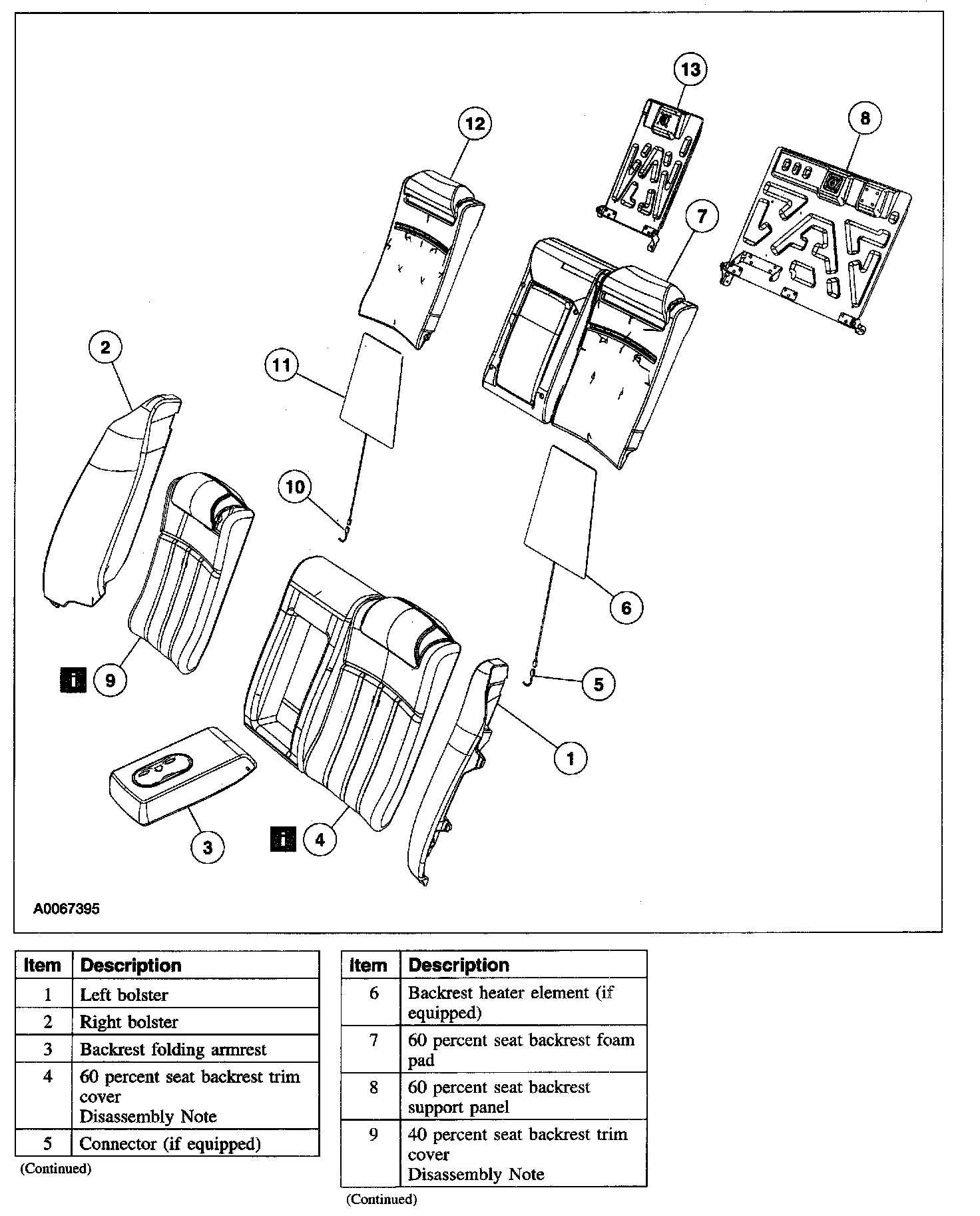

2. Disassemble the components in the order listed in the illustration and table. To remove individual components, carry out only the listed steps.
Item 4: 60 Percent Seat Backrest Trim Cover Disassembly Note
1. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
Separate the hook and loop fasteners.
2. Remove and discard the hog rings.
Item 9: 40 Percent Seat Backrest Trim Cover Disassembly Note
1. CAUTION: Use care when separating the seat upholstery from the hook and loop strip, or the hook and loop strip can be torn from the seat backrest foam pad.
Separate the hook and loop fasteners.
2. Remove and discard the hog rings.
ASSEMBLY
1. To assemble, reverse the disassembly procedure.
