Test N

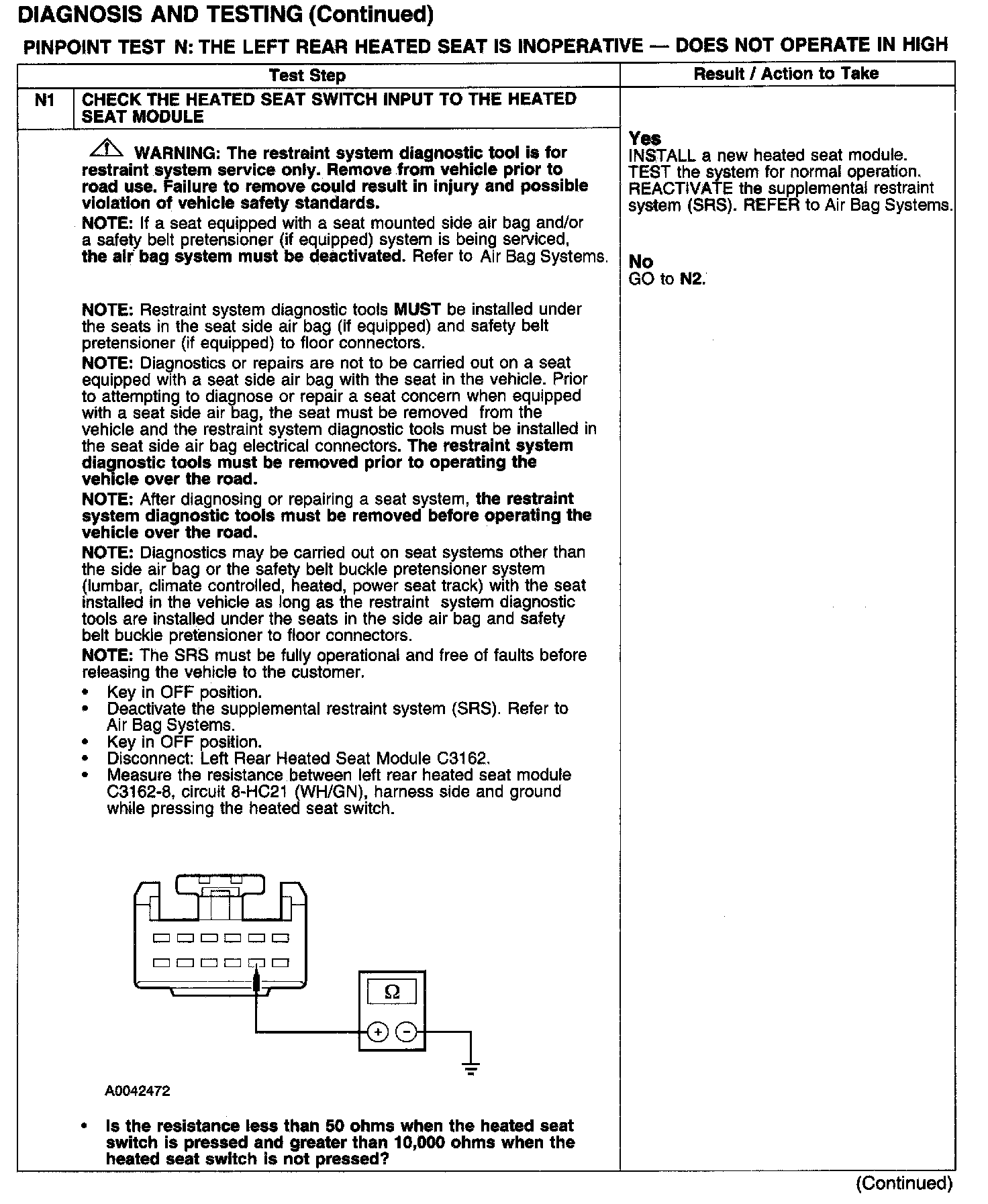

PINPOINT TEST N: THE LEFT REAR HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN HIGHTest N1:

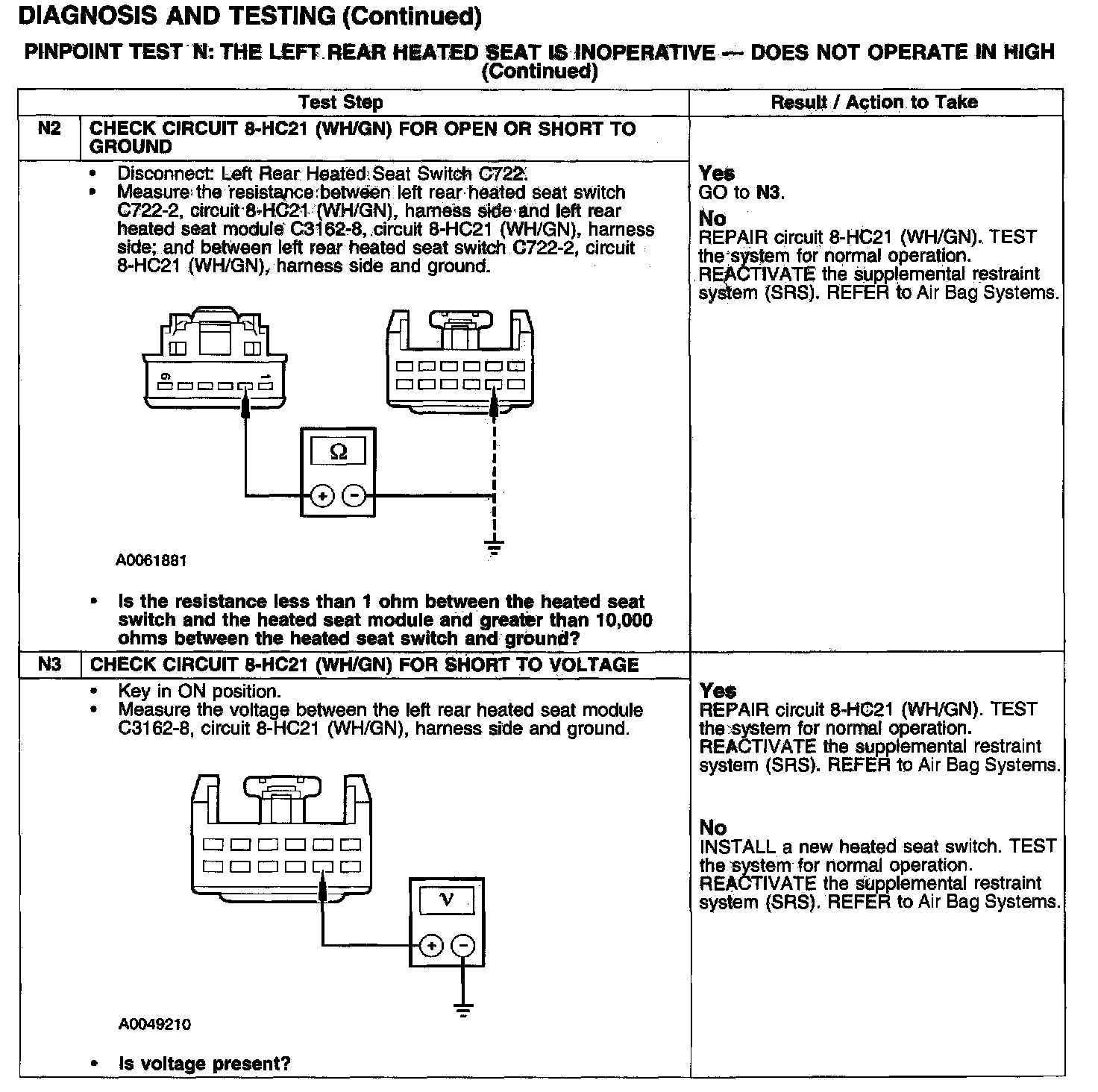

Test N2-N3:
Normal Operation The heated seat switch uses circuit 8-HC21A (WH/GN) for the high setting input to the heated seat module.
Possible Causes A driver heated seat that does not operate in high can be caused by:
-
wiring, terminals, or connectors.
-
a faulty heated seat switch.
-
a faulty heated seat module.
