Test P

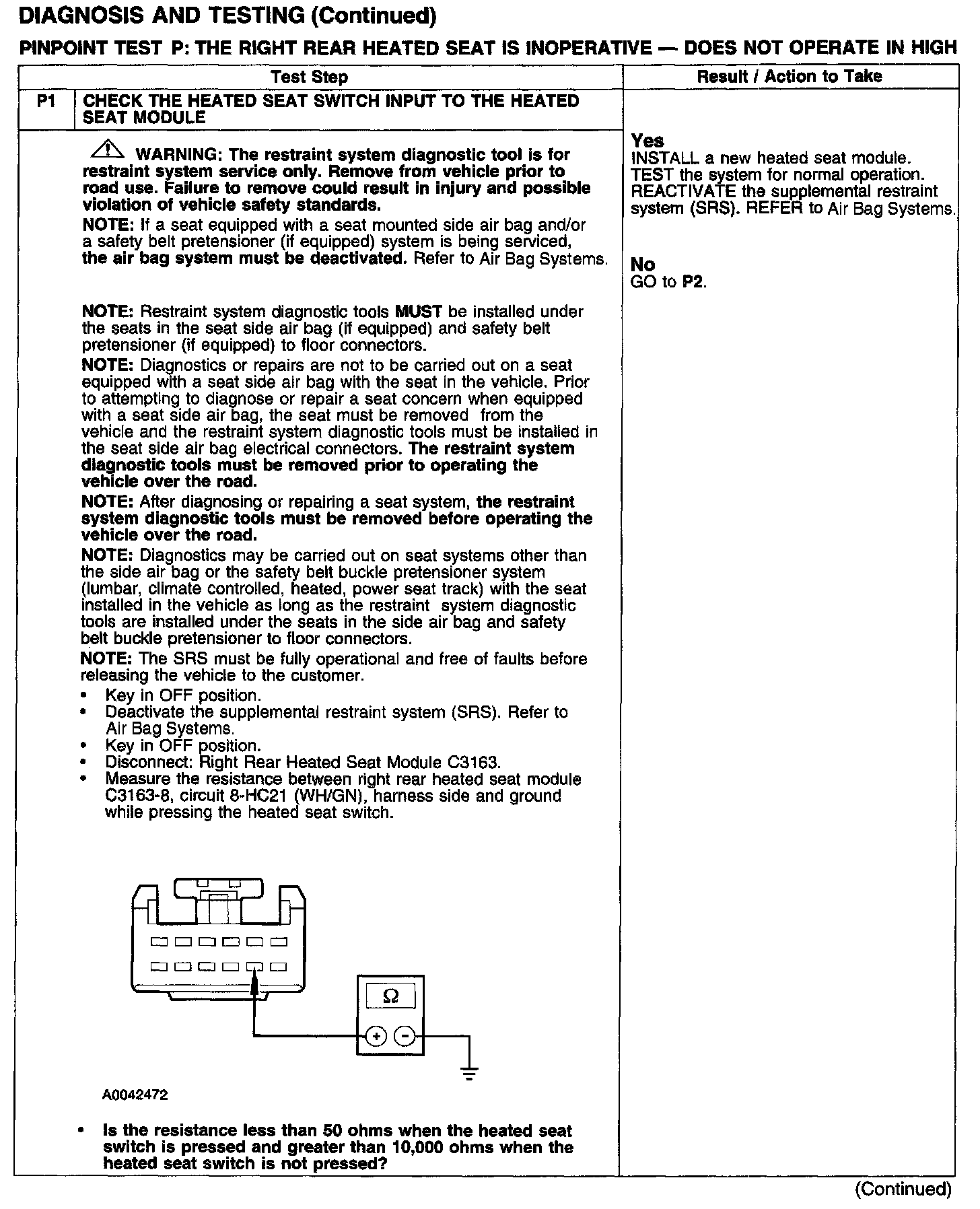

PINPOINT TEST P: THE RIGHT REAR HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN HIGHTest P1:

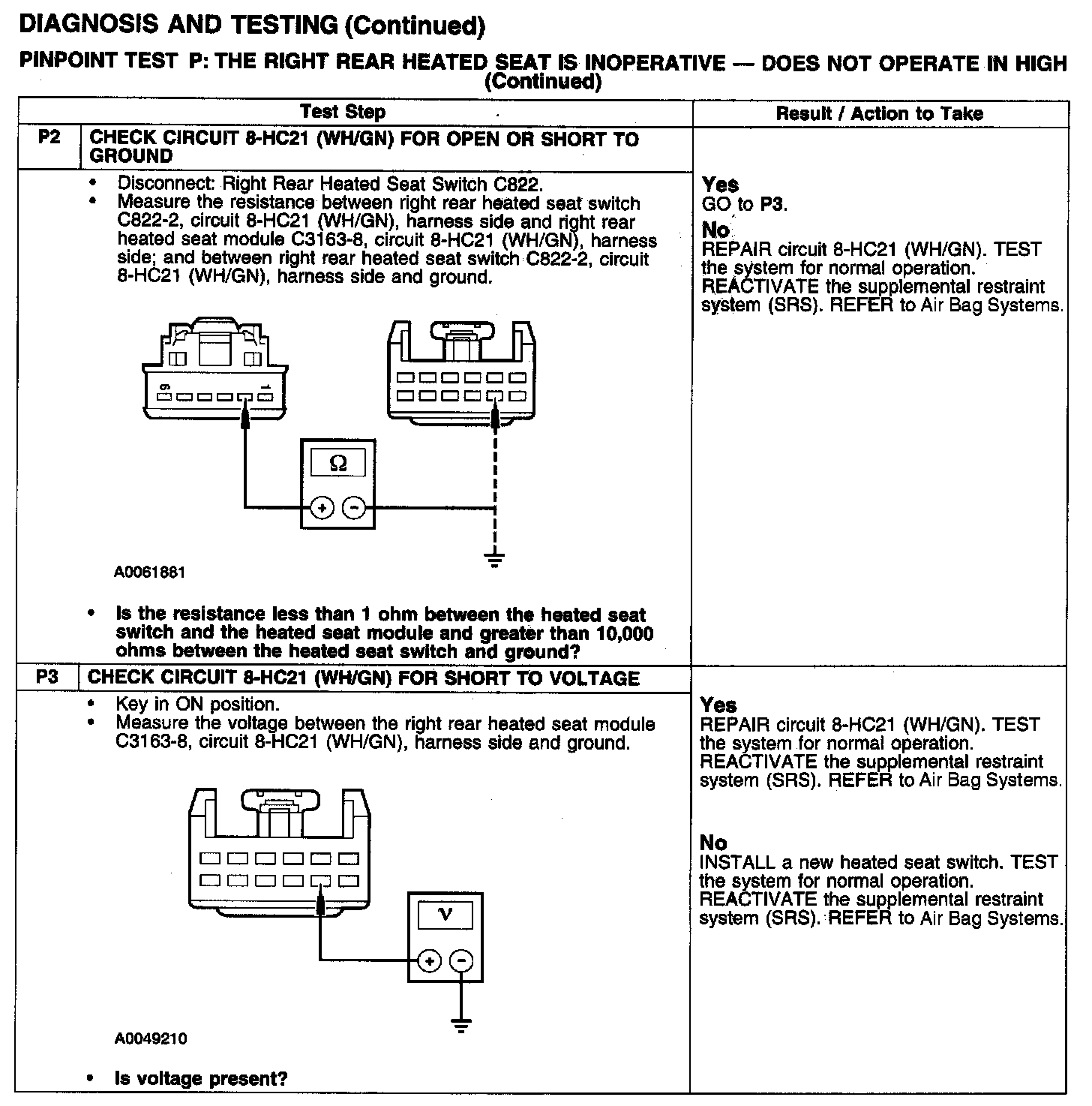

Test P2-P3:
Normal Operation The heated seat switch uses circuit 8-HC18 (WH/GN) for the high setting input to the heated seat module.
Possible Causes A passenger heated seat that does not operate in high can be caused by:
-
wiring, terminals, or connectors.
-
a faulty heated seat switch.
-
a faulty heated seat module.
