Test Q

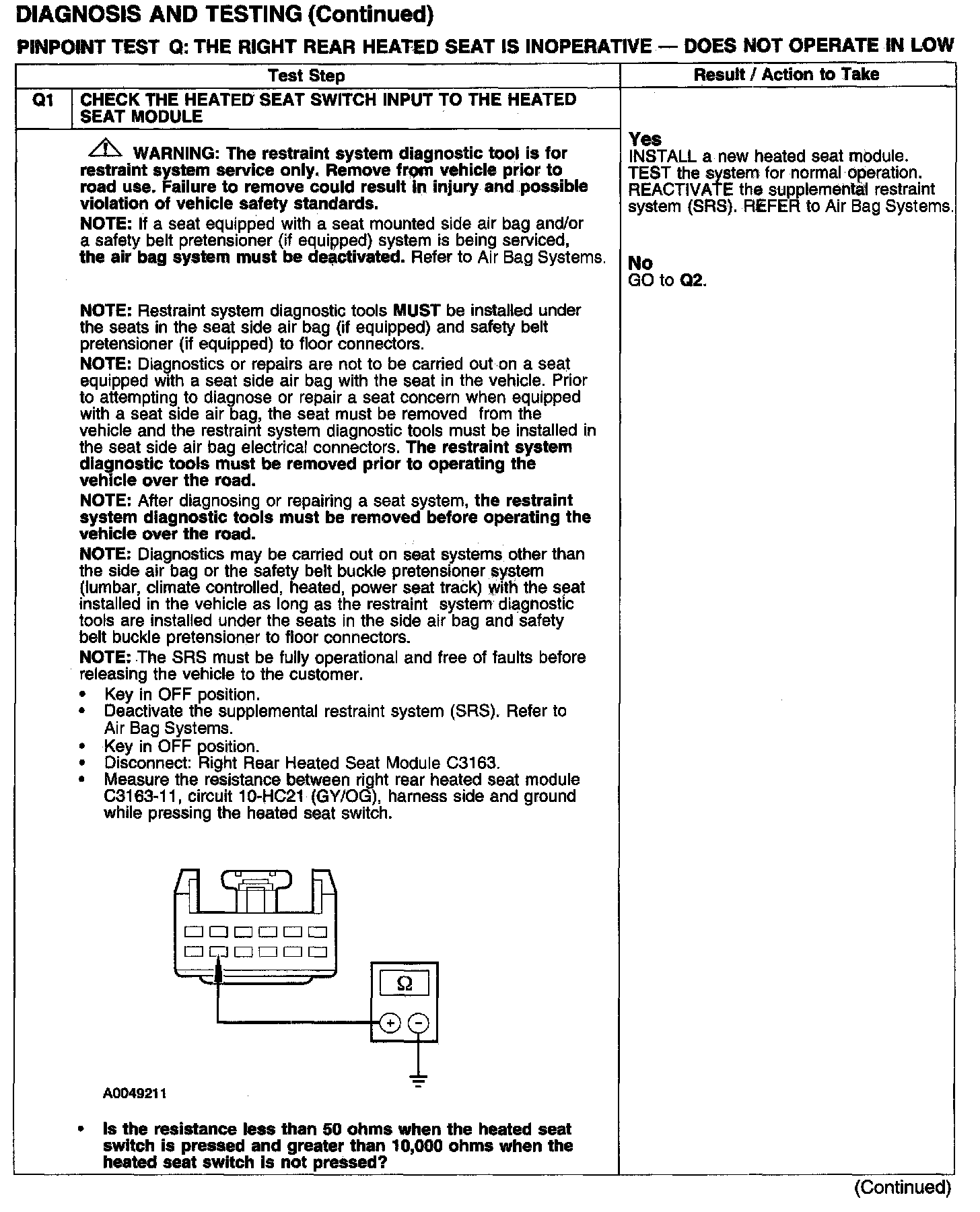

PINPOINT TEST Q: THE RIGHT REAR HEATED SEAT IS INOPERATIVE - DOES NOT OPERATE IN LOWTest Q1:

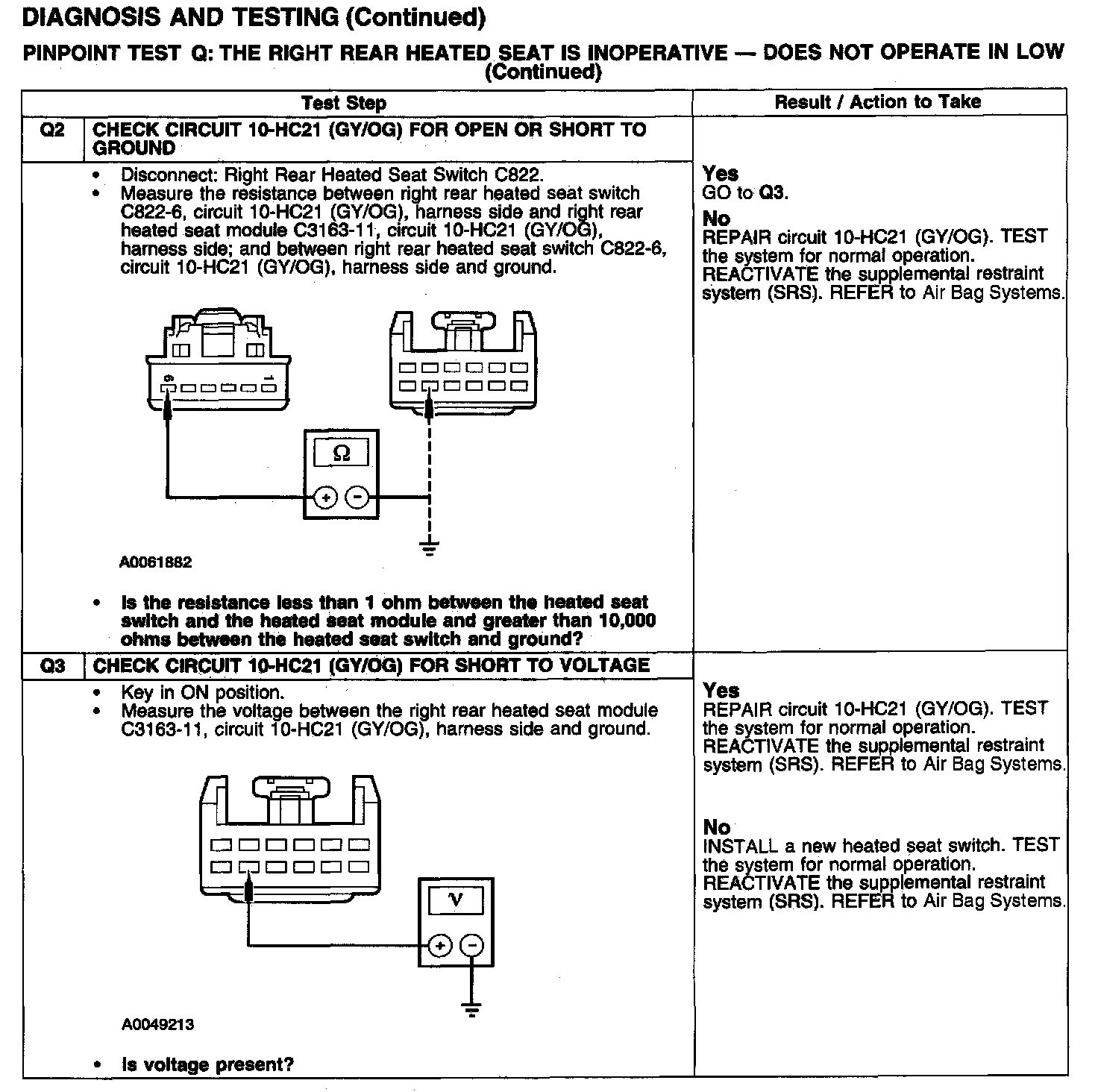

Test Q2-Q3:
Normal Operation The heated seat switch uses circuit 10-HC18 (GY/OG) for the low setting input to the heated seat module.
Possible Causes A passenger heated seat that does not operate in low can be caused by:
-
wiring, terminals, or connectors.
-
a faulty heated seat switch.
-
a faulty heated seat module.
