Exhaust System: Service and Repair

Exhaust System-3.9L





Special Tool(s)

1. With the vehicle in NEUTRAL, position it on a hoist.





2. Remove the bolts and the brace.

Part 1 Of 2:

Part 2 Of 2:

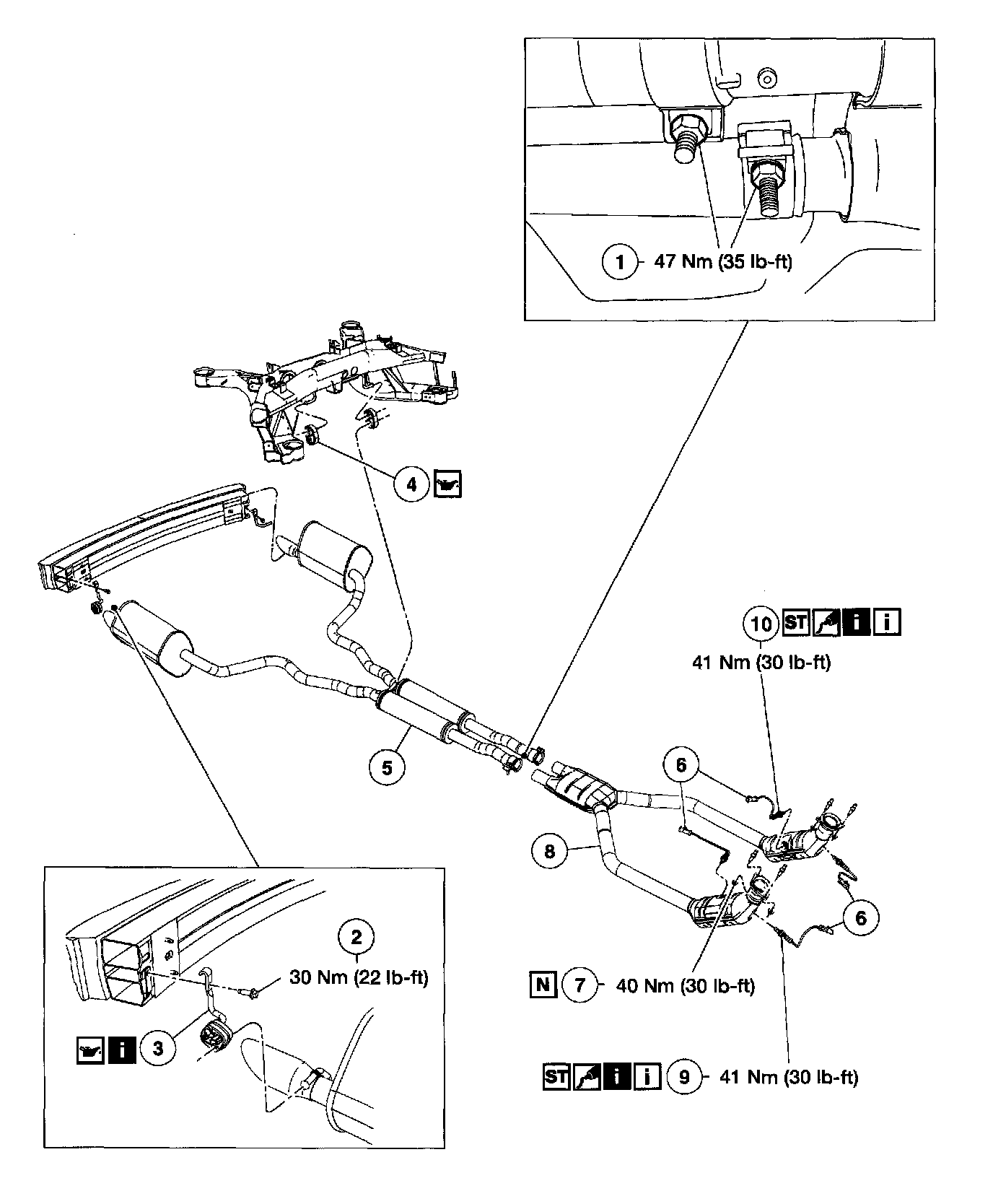

3. Remove the components in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.
5. Check and, if necessary, align the exhaust system.

Item 3: Exhaust Hanger Bracket Removal Note
1. Remove the exhaust hanger bracket and the exhaust hanger insulator as an assembly.

Item 9: Catalyst Monitor Sensor Removal Note





1. Using the special tool, remove the catalyst monitor sensors.

Item 10: Heated Oxygen Sensor Removal Note
1. Using the special tool, remove the heated oxygen sensors.

Item 10: Heated Oxygen Sensor Installation Note





1. Apply anti-seize to the threads of the sensors before installation. Using the special tool, install the sensor.

Item 9: Catalyst Monitor Sensor Installation Note
1. Apply anti-seize lubricant to the threads of the sensors before installation. Using the special tool, install the sensor.
