Air Register: Service and Repair

INSTRUMENT PANEL REGISTERS

REMOVAL

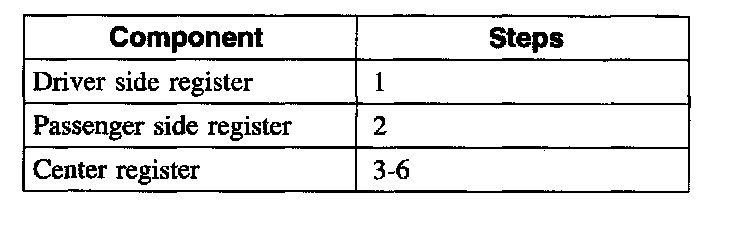

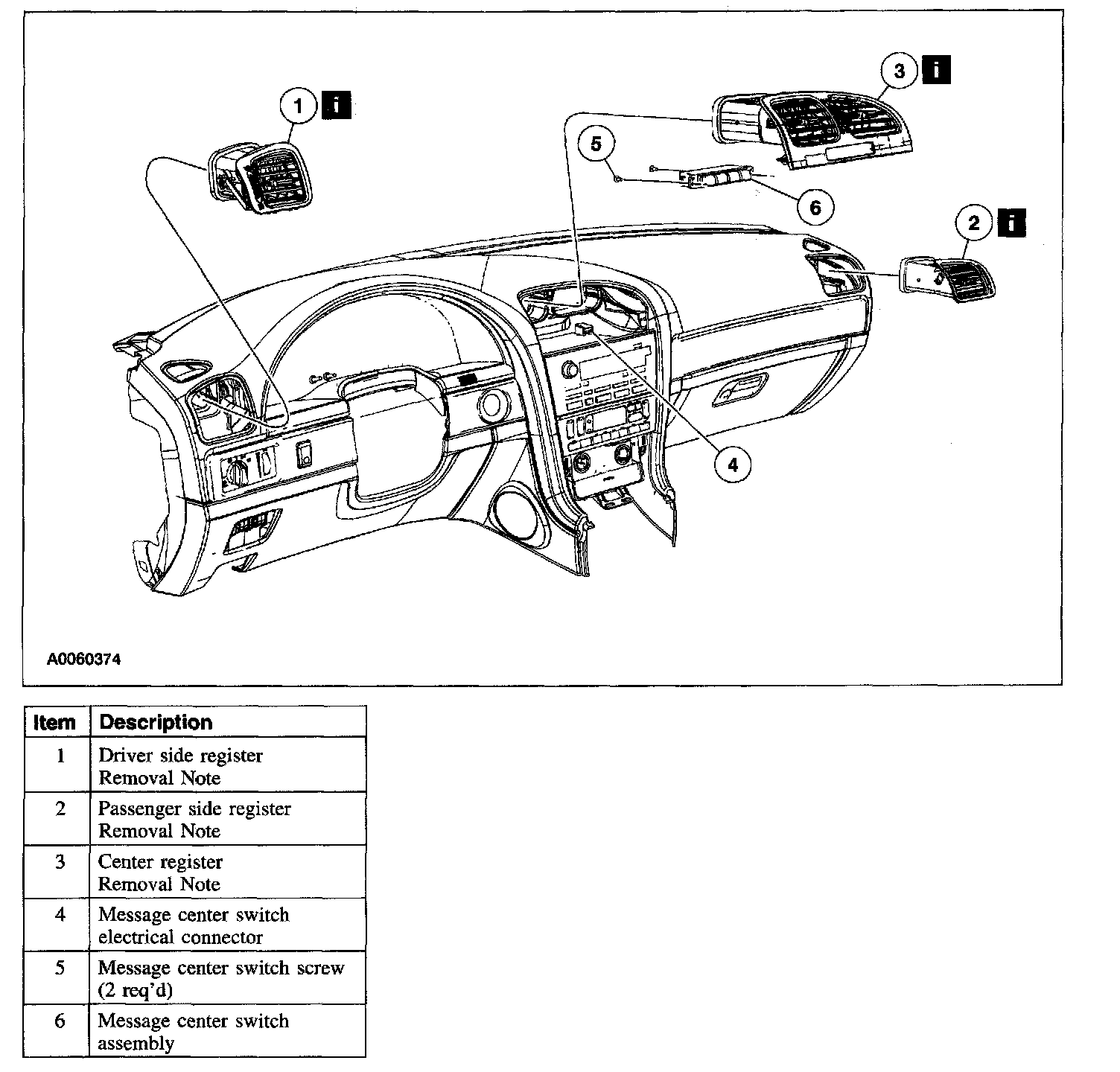

1. Remove the components in the order indicated in the illustration and table. To remove individual components, only carry out the listed steps.

Item 1-2: Driver Side and Passenger Side Register Removal Note







1. Depress the inboard side tab with a flat blade tool. Pull the register rearward, depress the outboard tab and remove the register.

Item 3: Center Register Removal Note

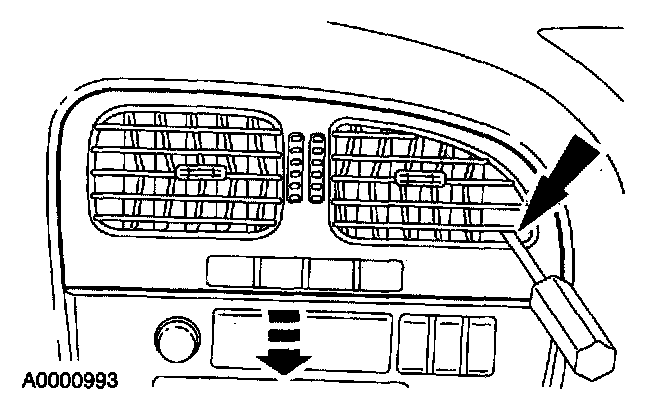

1. Insert a mini-pick in the pocket and pull the register from the instrument panel.

INSTALLATION
1. To install, reverse the removal procedure.
