Test M

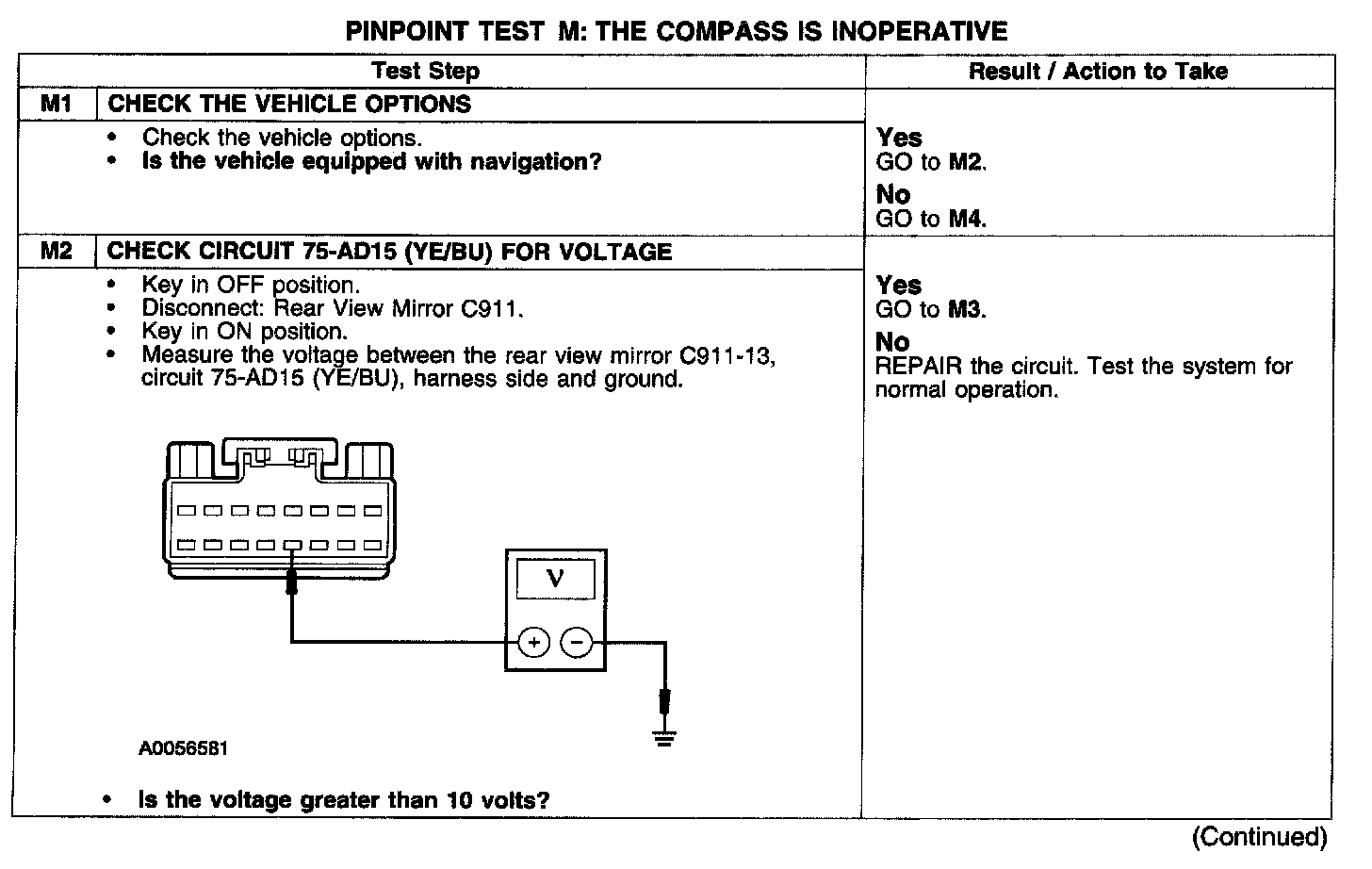

PINPOINT TEST M: THE COMPASS IS INOPERATIVETest M1-M2:

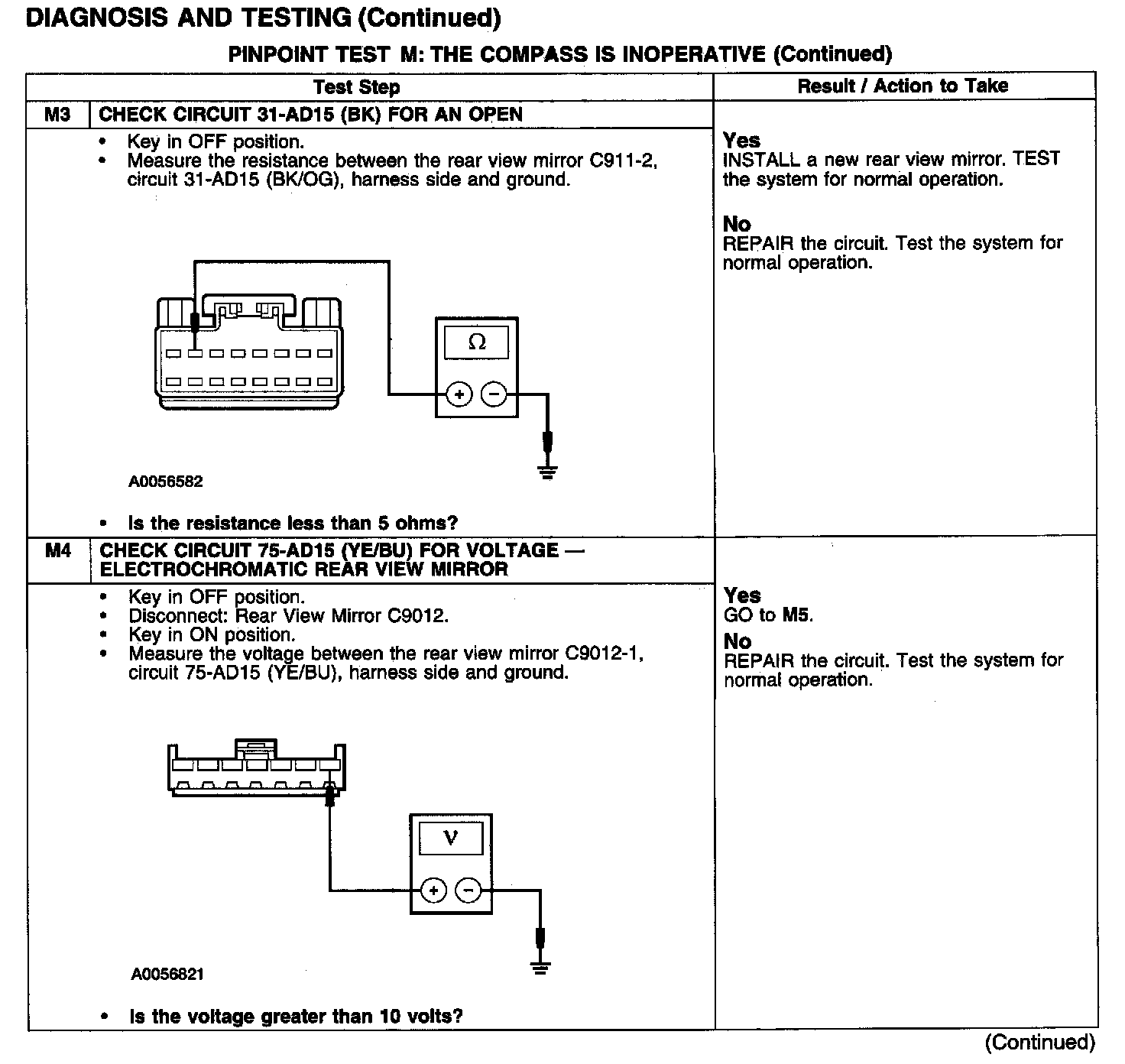

Test M3-M4:

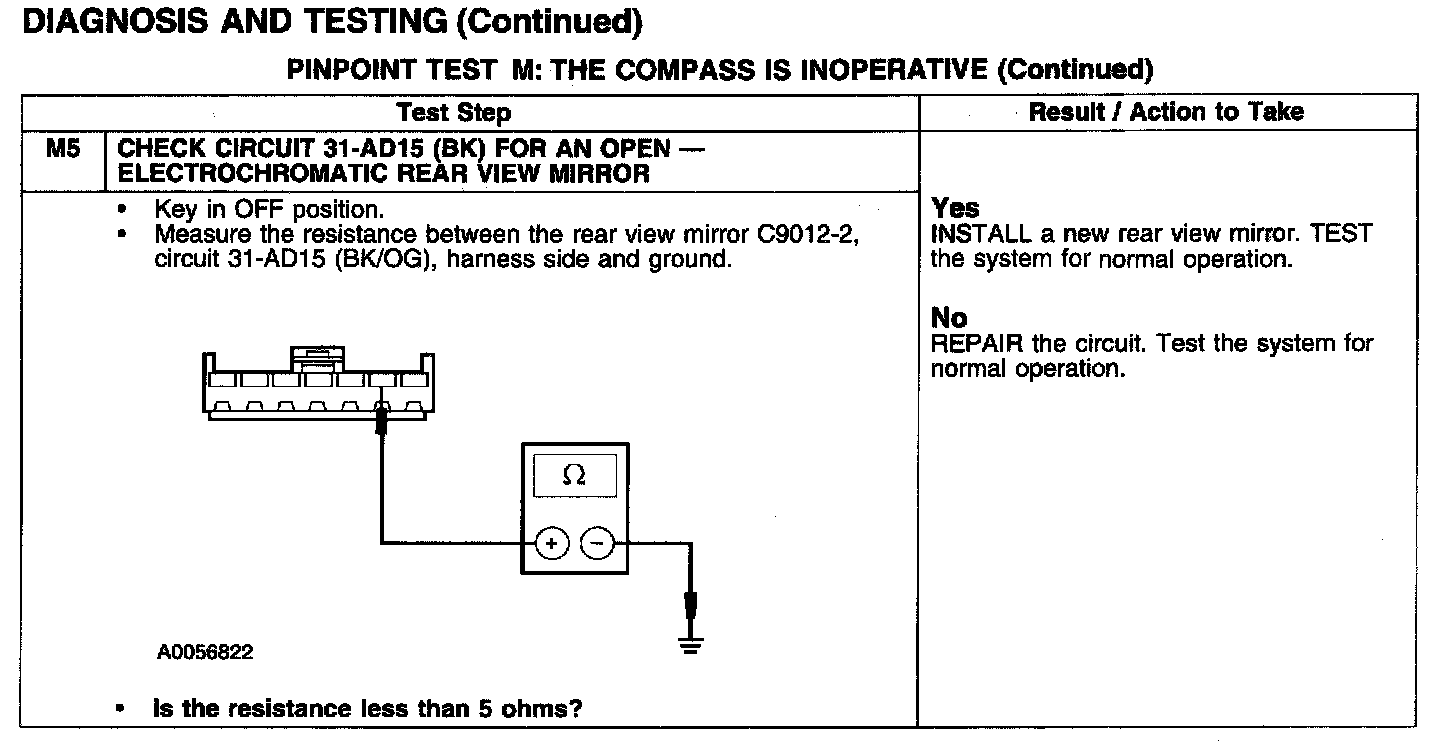

Test M5:
Normal Operation The
compass display and module are integrated into the rear view mirror. The rear view mirror receives switched B+ voltage via circuit 75-AD15 (YE/BU). Circuit 31-AD15 (BK/OG) provides the mirror ground.
Possible Causes -
circuit 75-AD15 (YE/BU) open or shorted to ground
-
circuit 31-AD15 (BK/OG) open
-
rear view mirror
