Air Cleaner Housing: Service and Repair

AIR CLEANER ASSEMBLY

REMOVAL
1. Remove the engine appearance cover.

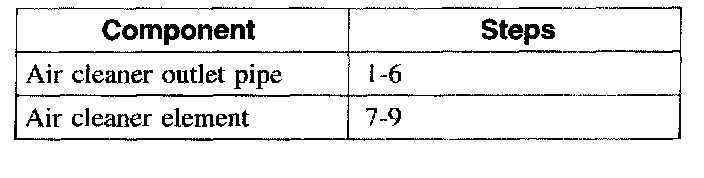

2. Remove the components in the order indicated in the illustration and table. To remove individual components, carry out only the listed steps.

Item 8: Air Cleaner Cover Removal Note

1. NOTE: No tools are needed to remove the air cleaner cover. Removal should be carried out using hands only.

Release the snaps and separate the air cleaner cover from the air cleaner fray.

INSTALLATION
1. To install, reverse the removal procedure.

Item 8: Air Cleaner Cover Installation Note

1. NOTE: No tools are needed to install the air cleaner cover. Installation should be carried out using hands only.

Use the alignment notches to correctly align the air cleaner cover to the air cleaner tray.
