Driver Door Module (DDM)

DRIVER DOOR MODULE (DDM)

REMOVAL

1. CAUTION:
- Prior to the removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic equipment. This information needs to be downloaded into the new module once installed.
- Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.

2. Remove the driver door trim panel.

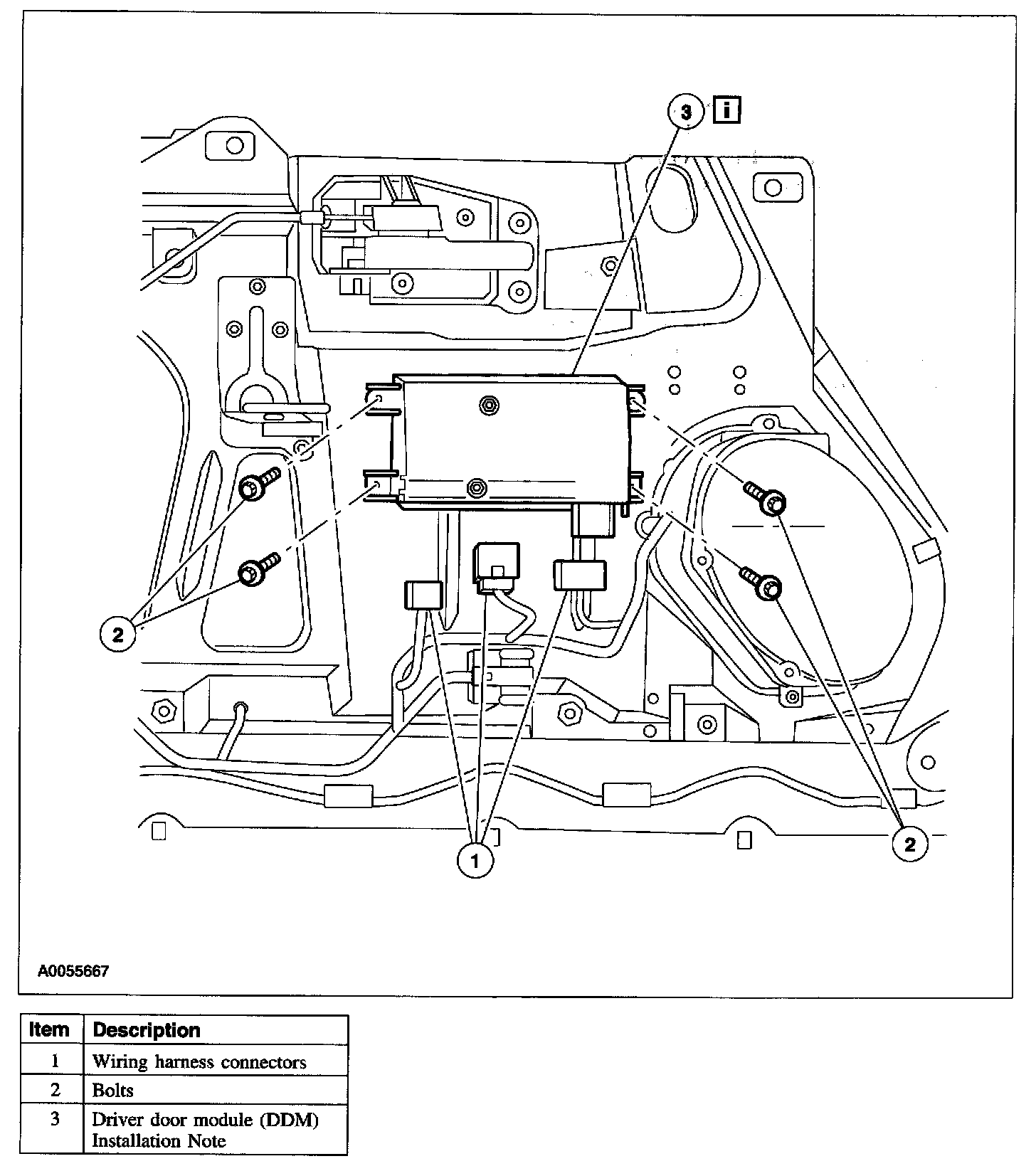

3. Remove the components in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.

Item 3: Driver Door Module (DDM) Installation Note
1. Once the DDM is installed, it is necessary to download the module configuration information from the diagnostic tool into the new module. Refer to Module Configuration.
