Parking Assist Control Module: Service and Repair

Parking Aid Module

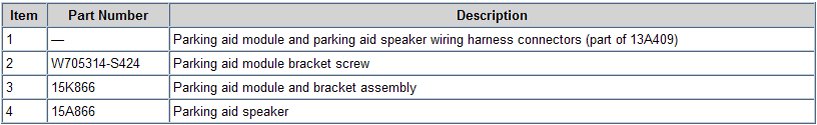

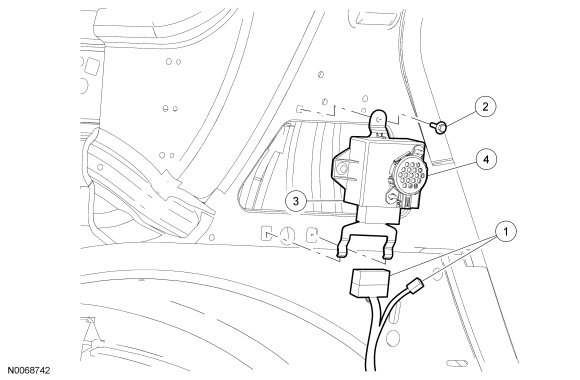

Late Build Expedition

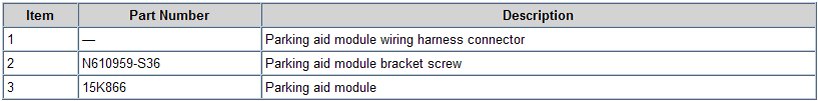

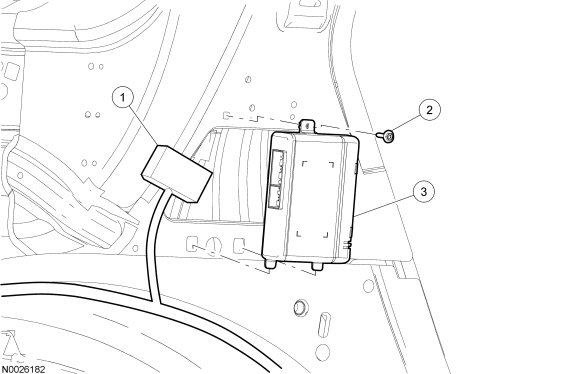

Early Build Expedition and Navigator









Removal and Installation

1. Remove the LH quarter trim panel. Service and Repair

2. For late build Expedition, if replacing the parking aid speaker only, proceed as follows:
^ Disconnect the parking aid speaker electrical connector.
^ Disengage the retainer clips.
^ Remove the parking aid speaker.

3. For all vehicles, if replacing the parking aid module, proceed as follows:
^ Disconnect the electrical connectors.
^ Remove the parking aid module screw.
^ Remove the parking aid module.

4. To install, reverse the removal procedure.
5. PERFORM the Park Aid Calibration and Self-Test Diagnostics. Park Aid Calibration and Self-Test Diagnostics
