Home >> Lincoln >> 2003 >> Navigator 4WD V8-5.4L DOHC VIN R >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

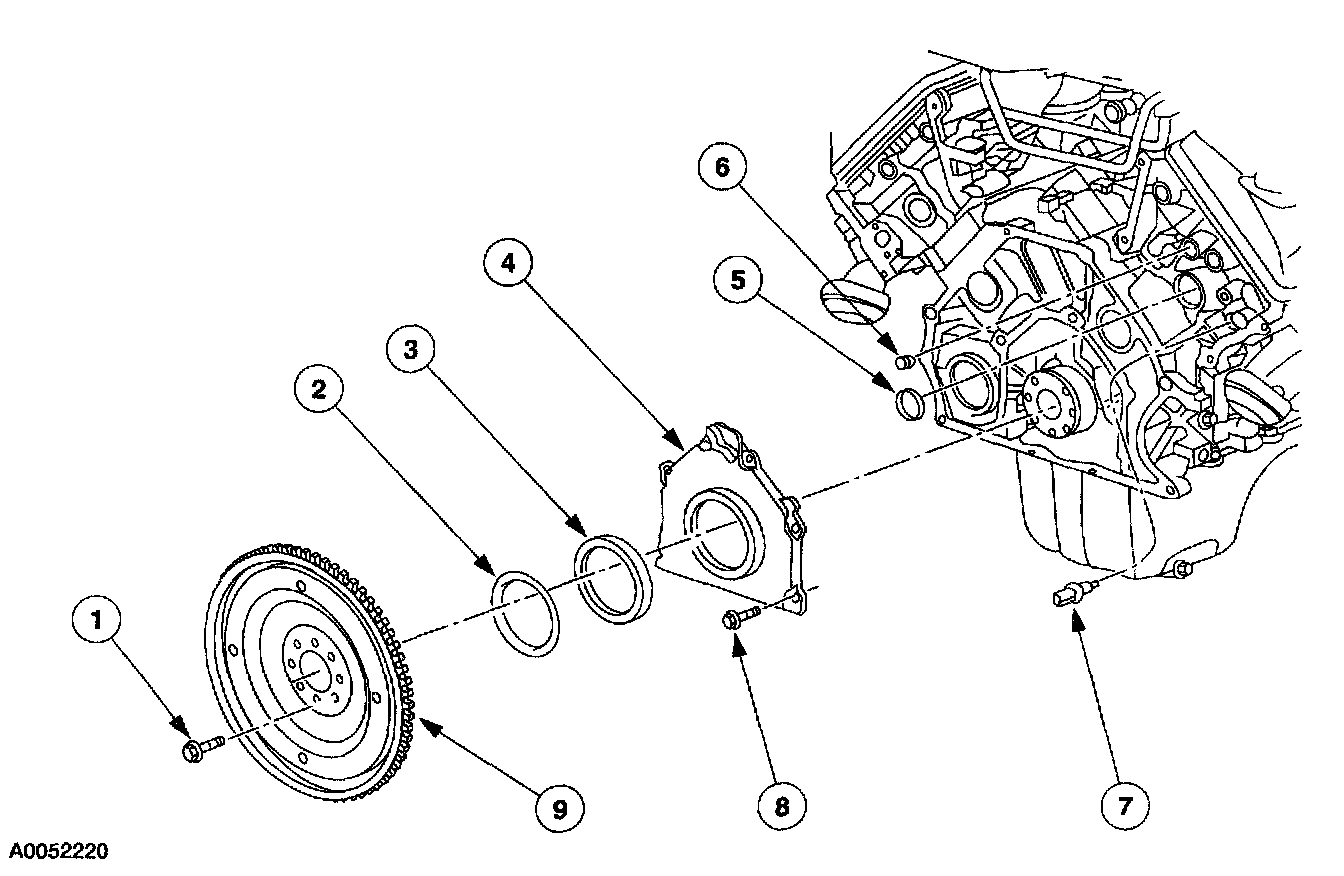

Part 1 Of 14:

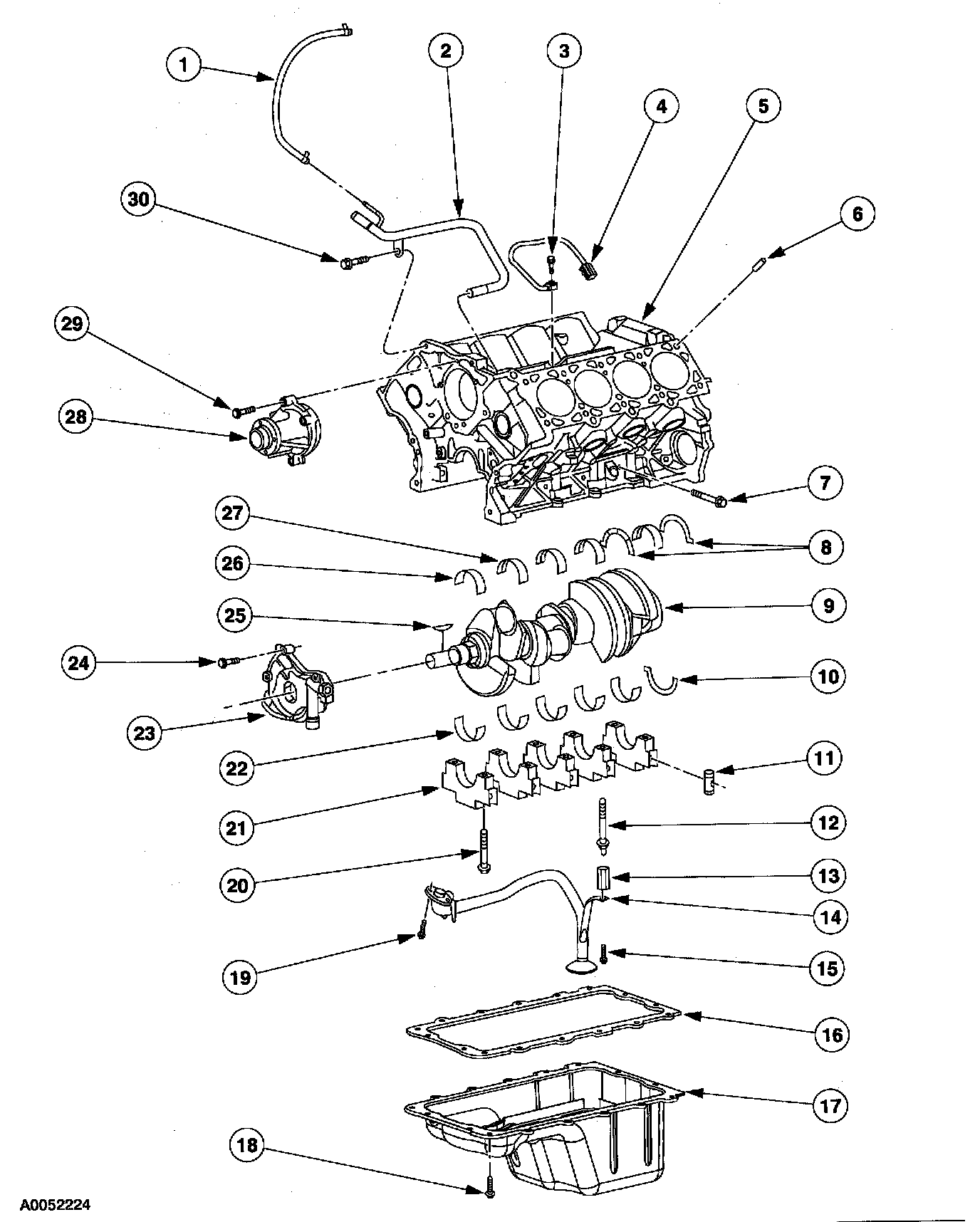

Part 2 Of 14:

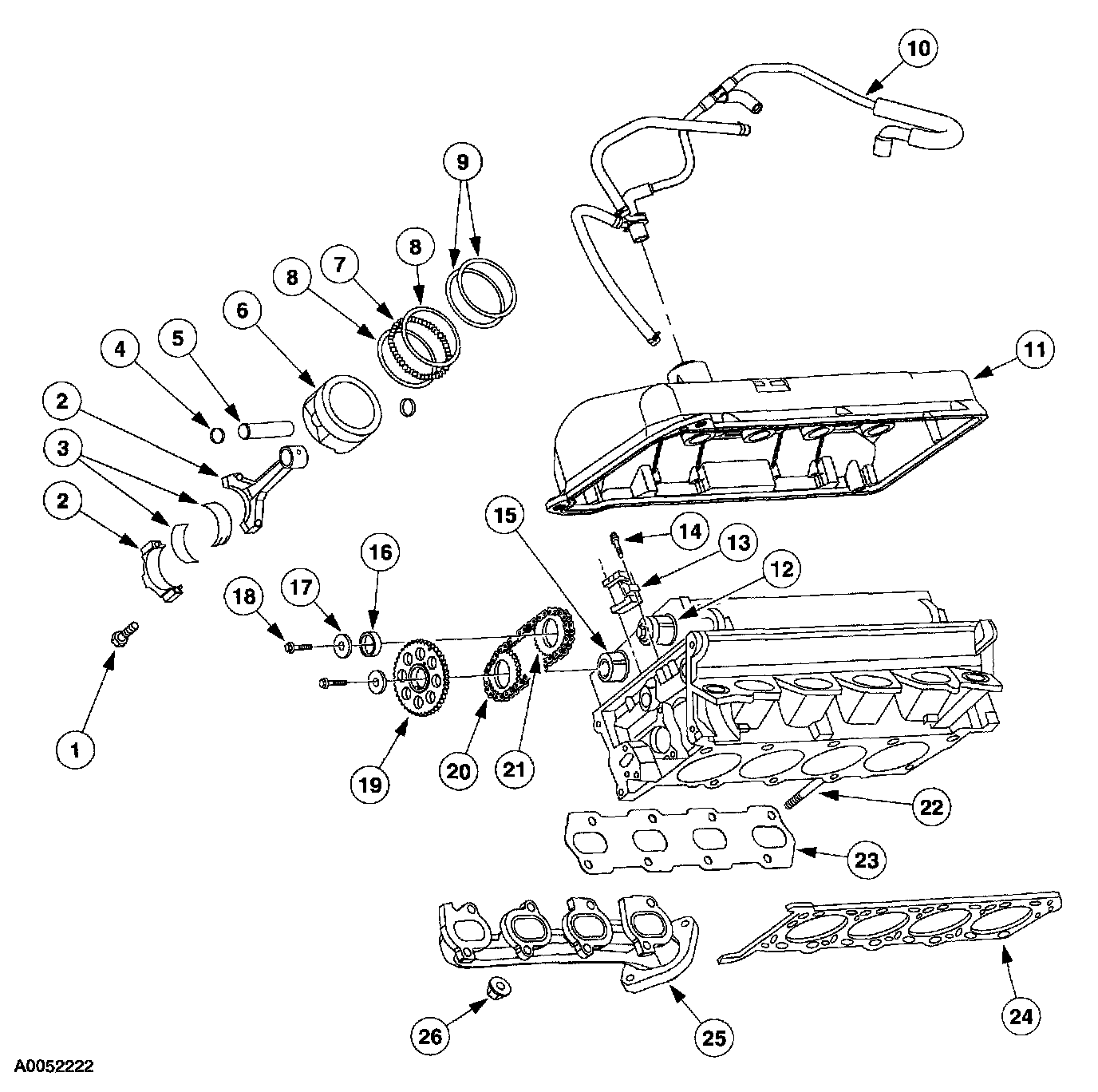

Part 3 Of 14:

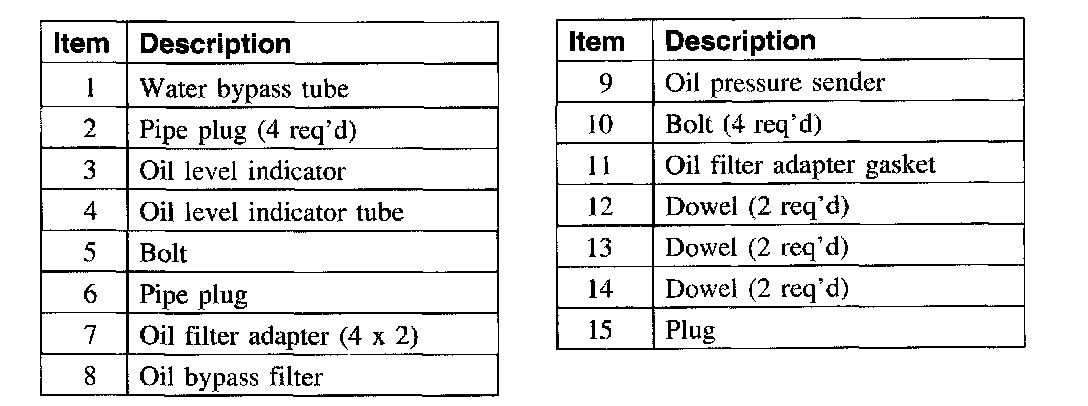

Part 4 Of 14:

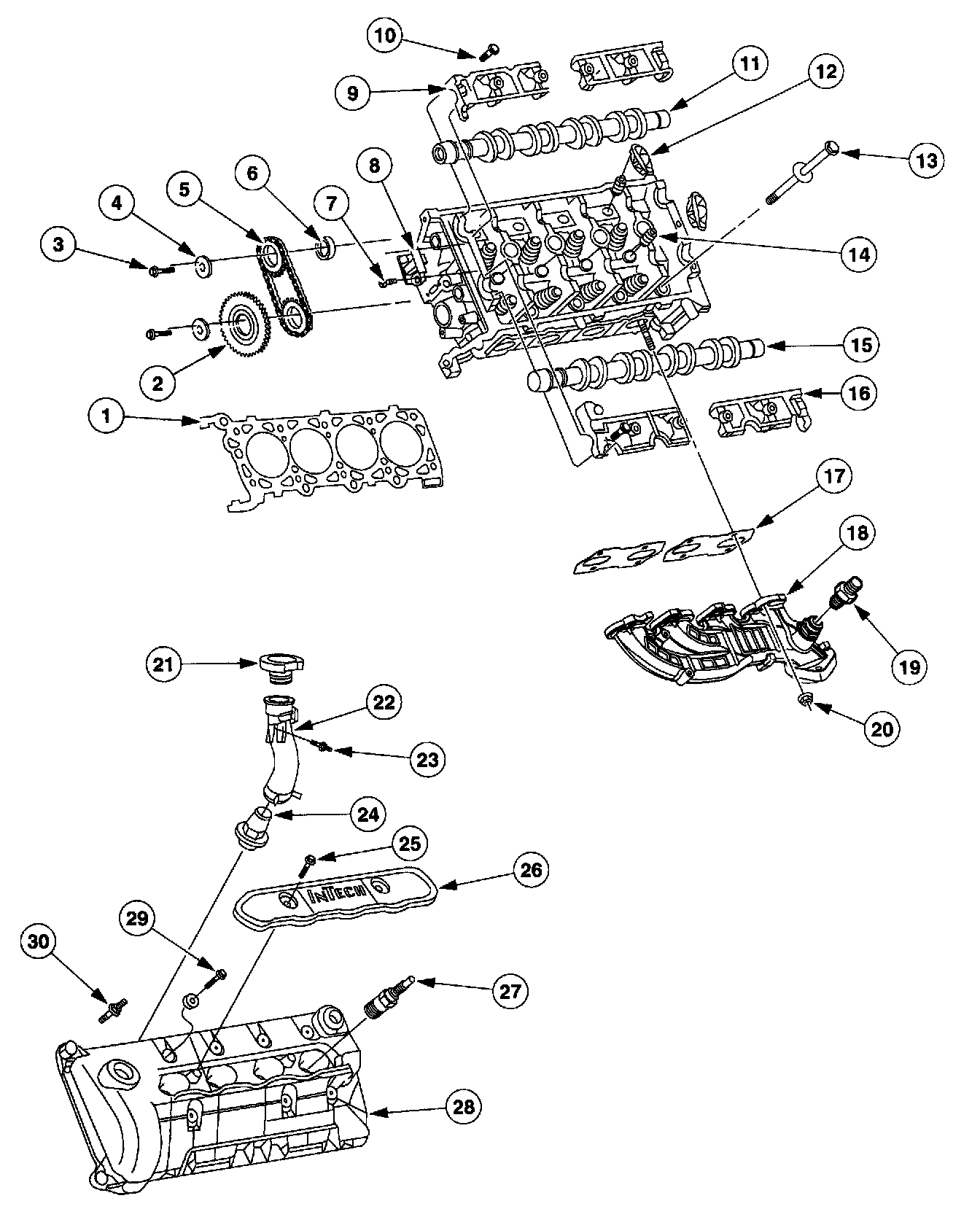

Part 5 Of 14:

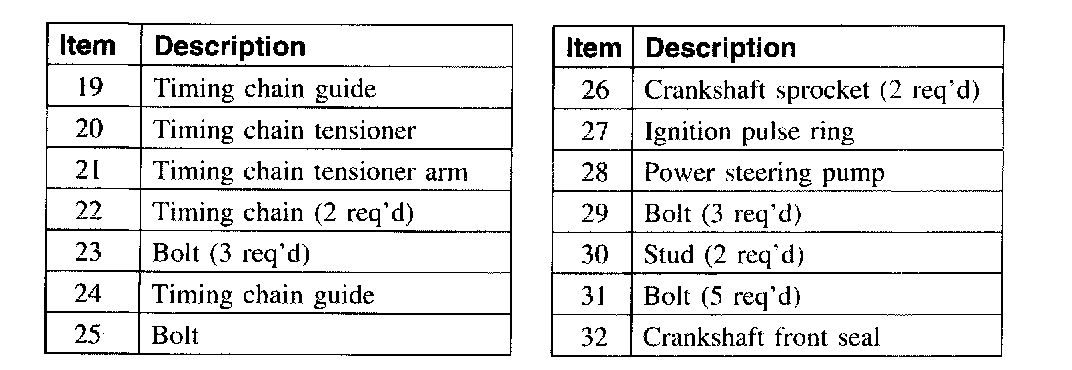

Part 6 Of 14:




Part 7 Of 14:




Part 8 Of 14:




Part 9 Of 14:




Part 10 Of 14:




Part 11 Of 14:




Part 12 Of 14:




Part 13 Of 14:




Part 14 Of 14:
