Cross-Member: Service and Repair

TRANSMISSION CROSSMEMBER

Removal and Installation

1. Raise and support vehicle.







2. Remove the four crossmember splash shield bolts and splash shield.

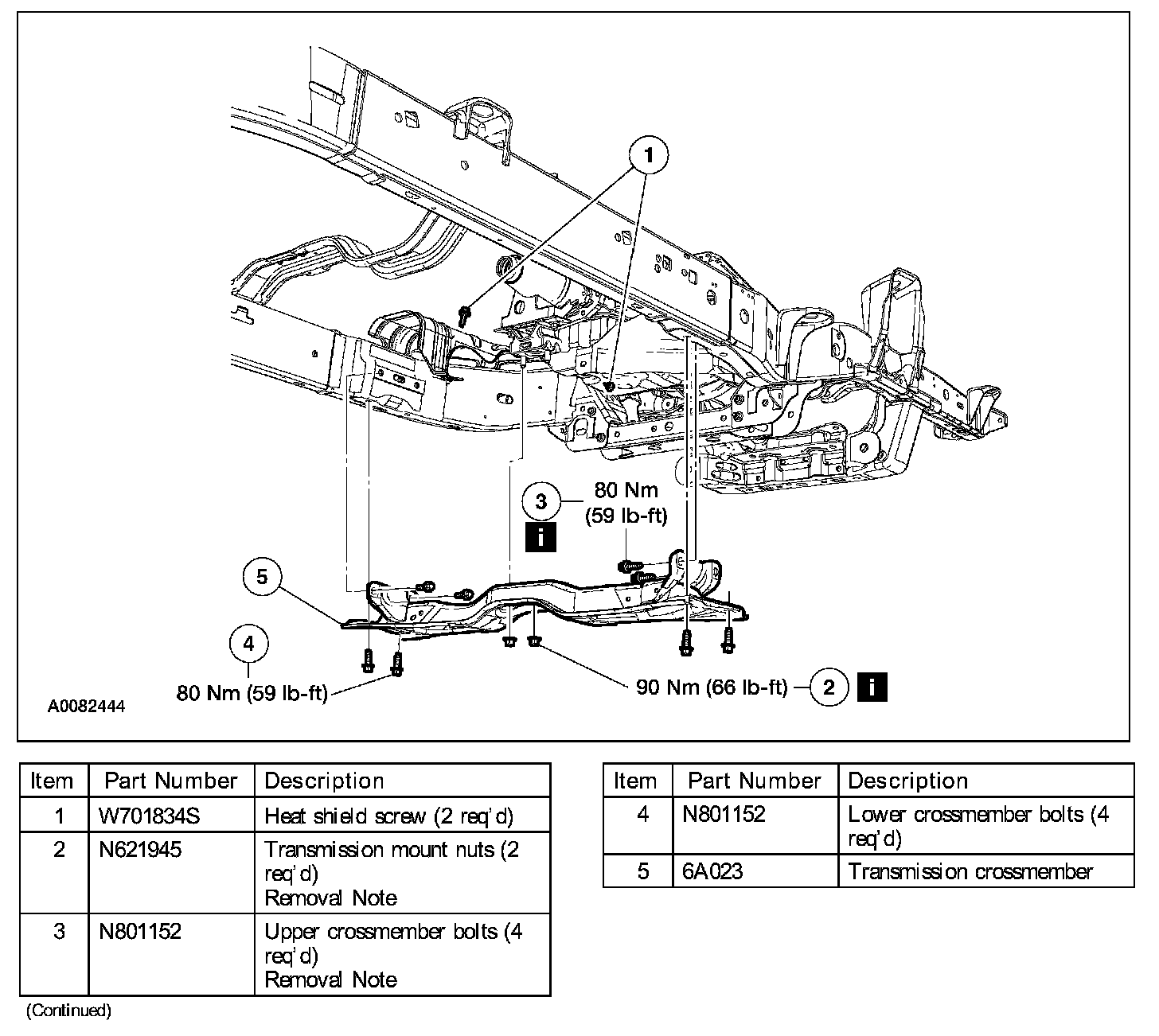

3. Remove the parts in the order indicated in the illustration and table.
4. To install, reverse the removal procedure.

Item 2: Transmission Mount Nuts Removal Note
1. Support transmission with suitable jack.

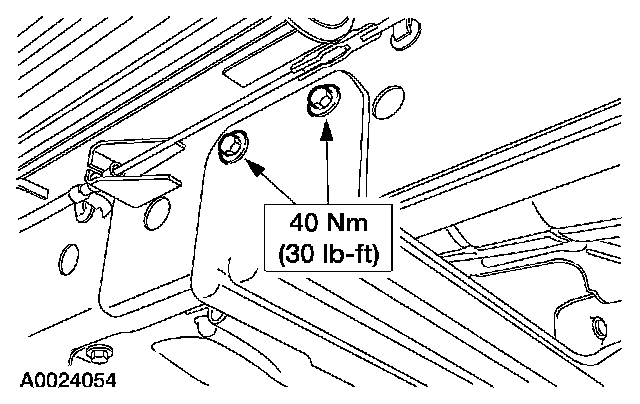

Item 3: Upper Crossmember Bolts Removal Note

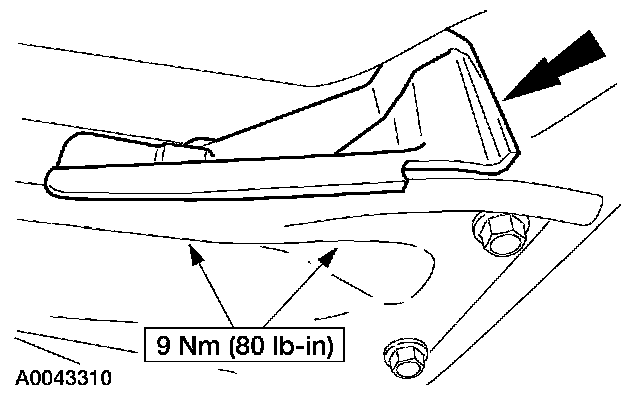

1. Remove the plastic shield on the right side of the crossmember to access bolts.
