Test I
PINPOINT TEST I: INSUFFICIENT, ERRATIC OR NO HEATTest I1-I2:

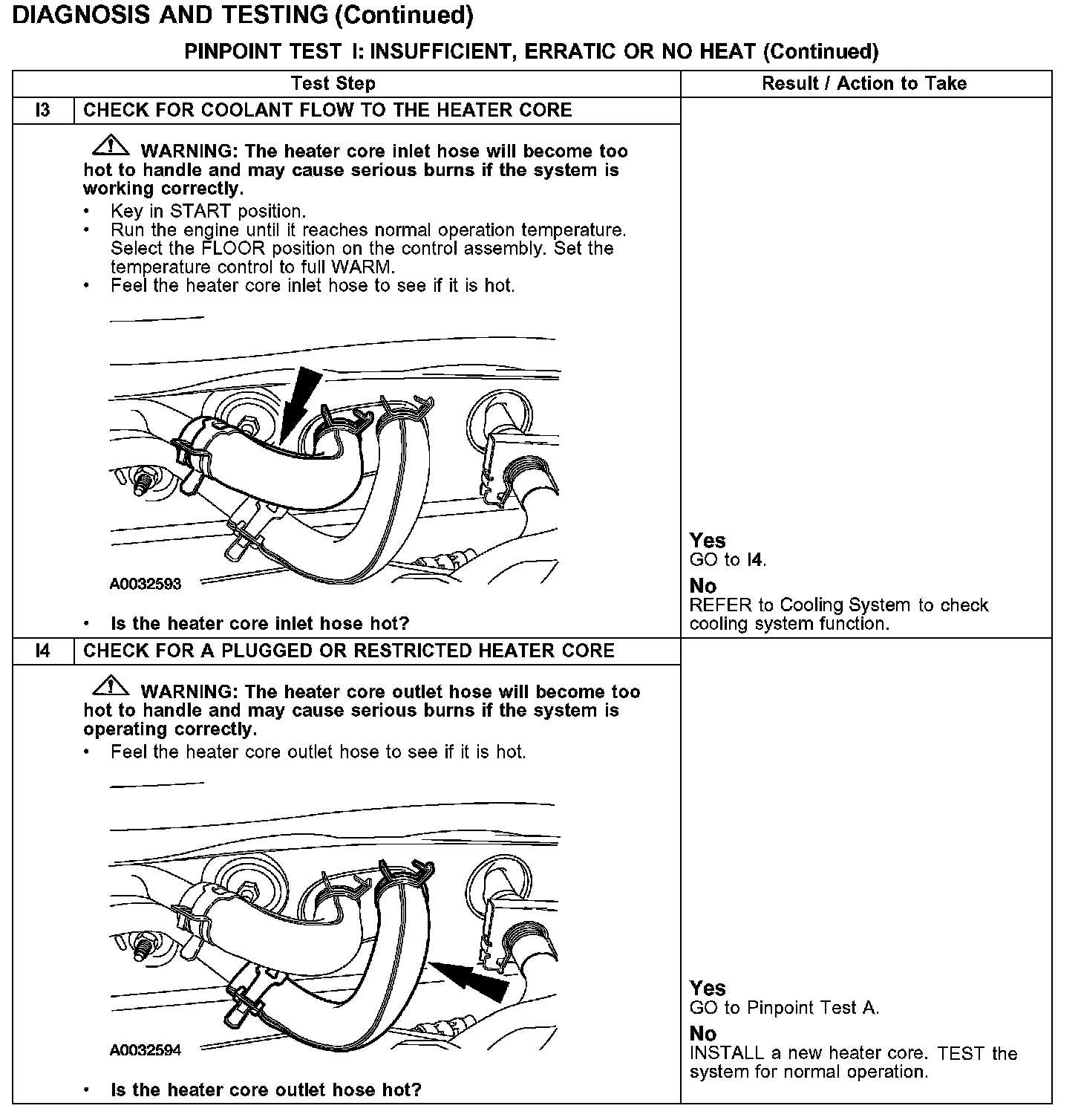

Test I3-I4:
Normal Operation Under normal operation, warm coolant flows from the engine through the
heater core and back to the engine.
Possible Causes -
Temperature blend door/actuator.
-
Coolant level.
-
Plugged
heater core.
