Drive Belt: Service and Repair

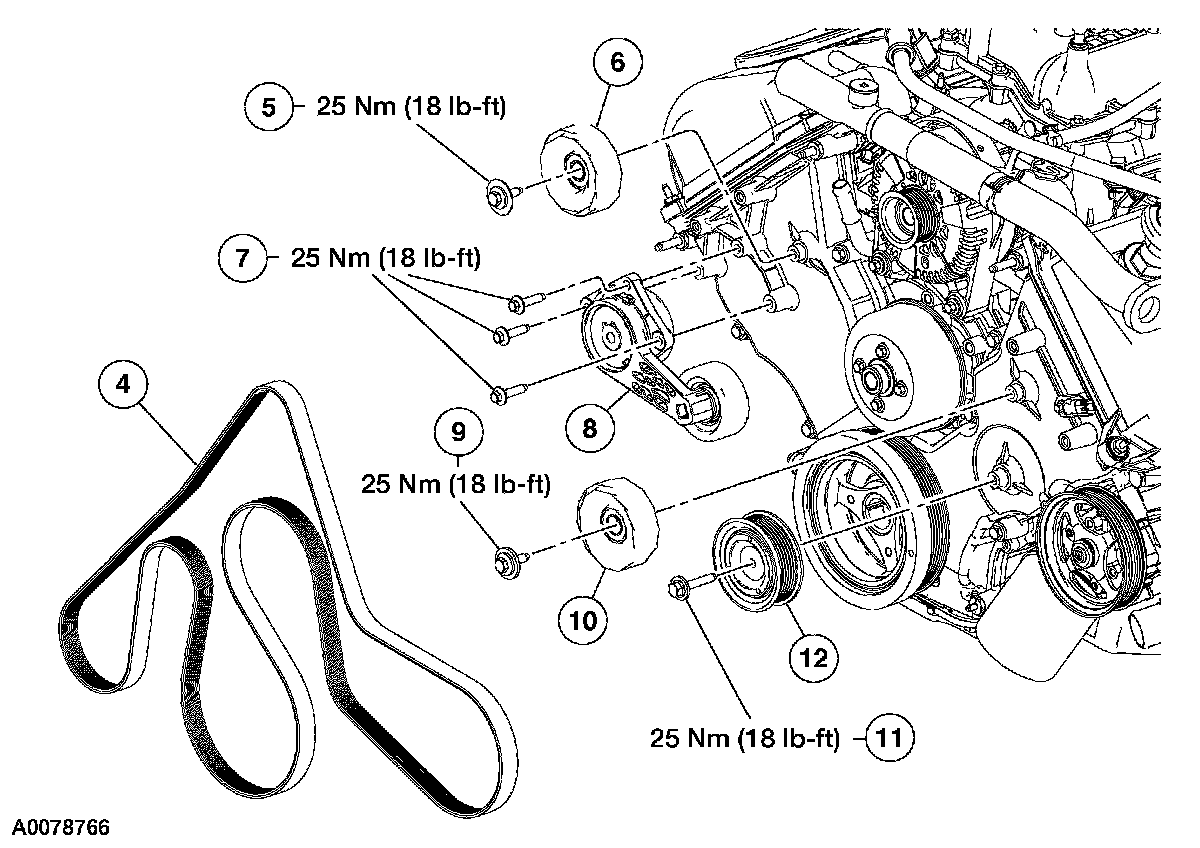

Accessory Drive Belt, Tensioner and Pulley

1. Remove the parts in the order indicated in the illustrations and tables.














To remove individual parts, only carry out the listed steps:

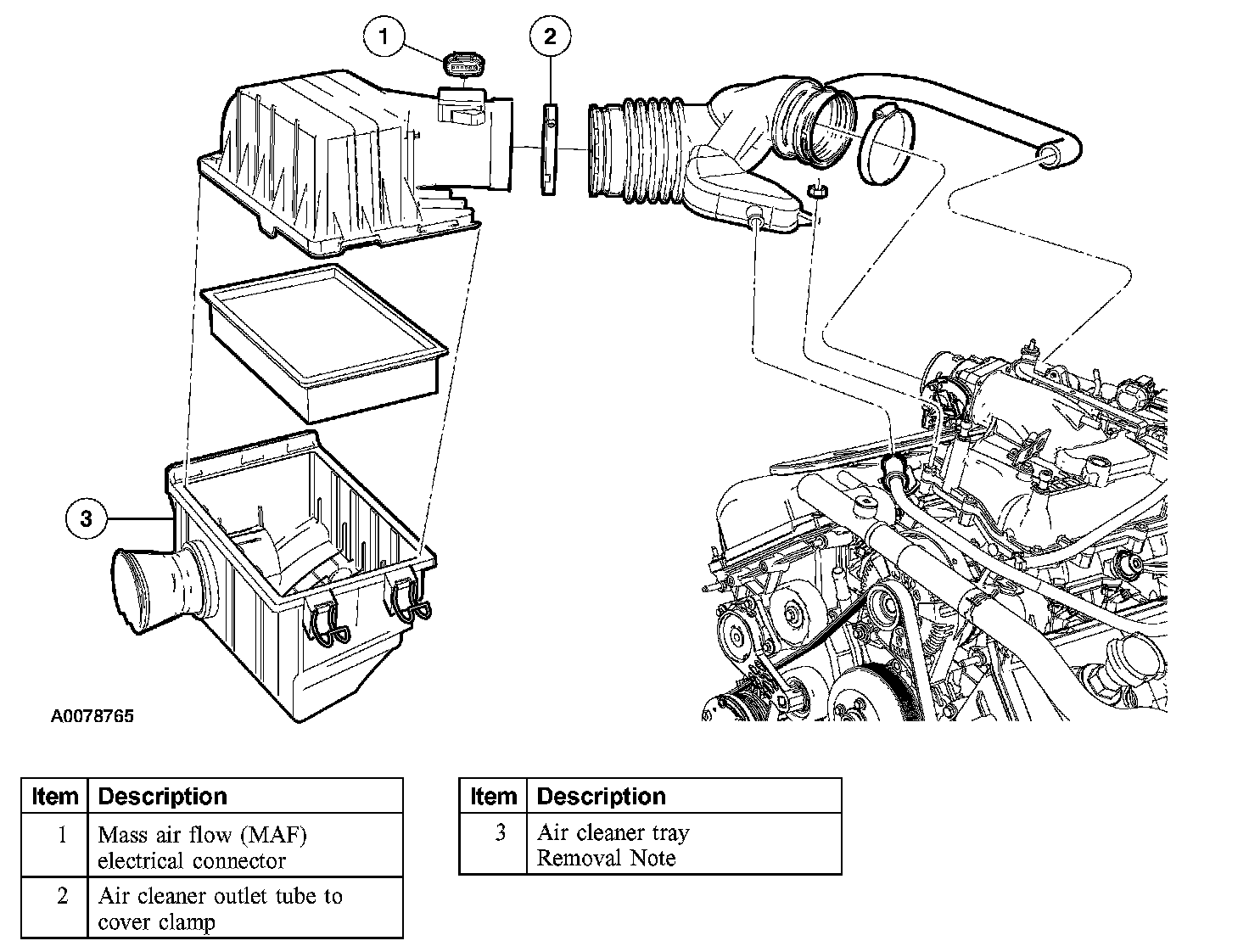

2. Remove the air cleaner tray and cover as one assembly.
3. To install, reverse the removal procedure.

Item 3: Air Cleaner Tray Removal Note

1. Pull up and then away on the air cleaner tray to release it from the body.

Item 4: Accessory Drive Belt Removal Note








1. Rotate the belt tensioner clockwise and remove the accessory drive belt.
