Diagnostic Trouble Code Tests and Associated Procedures

DIAGNOSTIC TROUBLE CODE (DTC) CHART

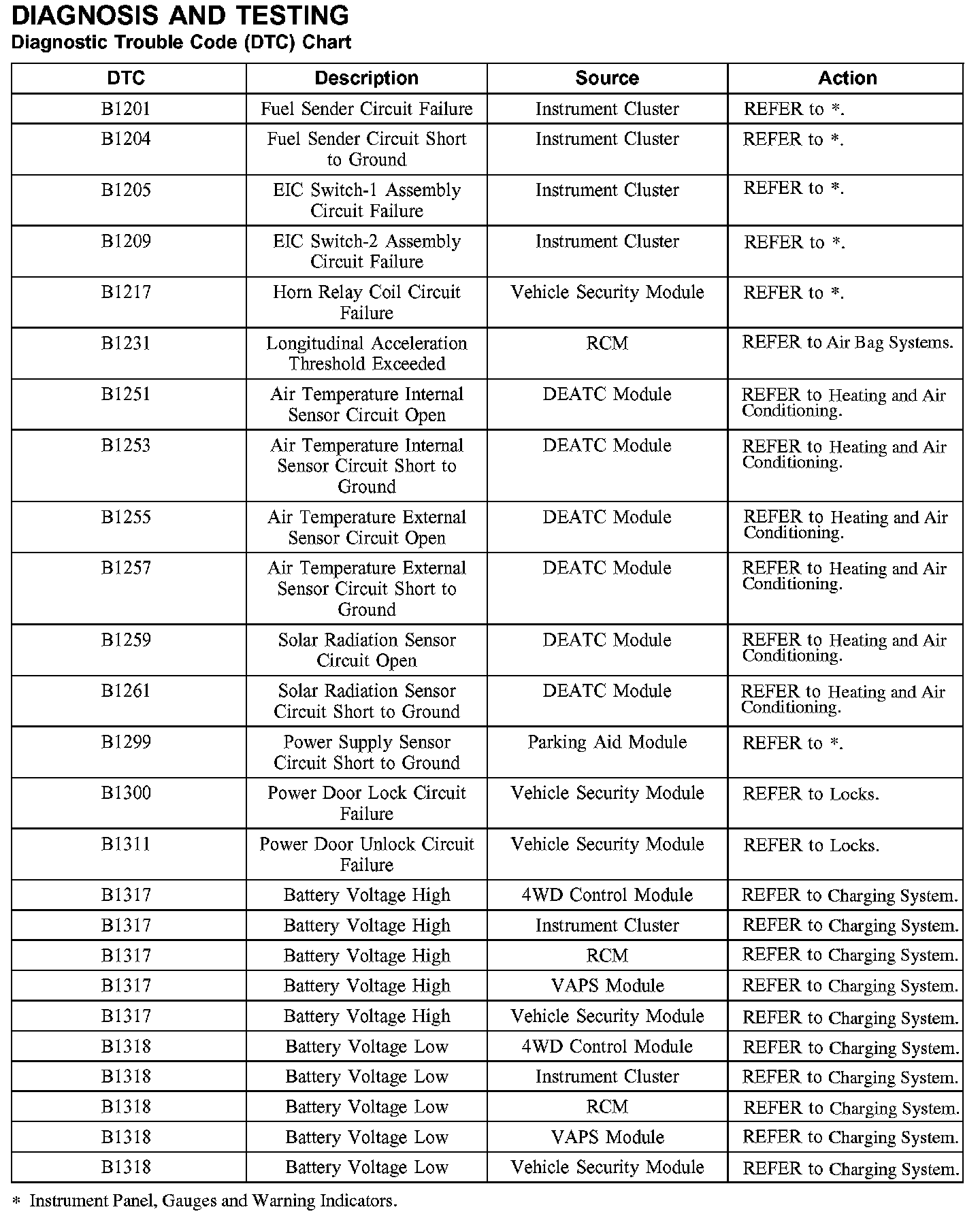

DTC Chart B1201 - B1318:

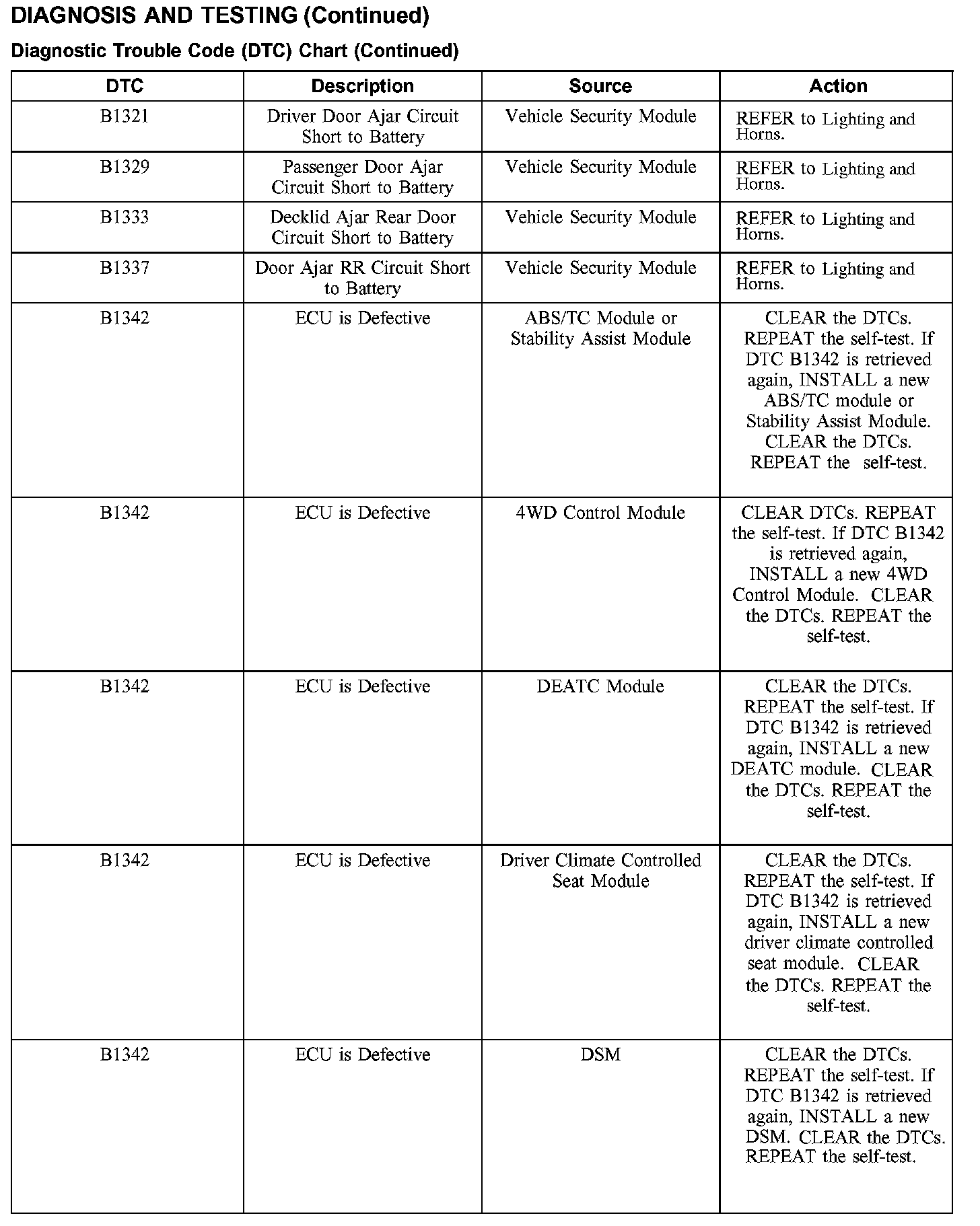

DTC Chart B1321 - B1342:

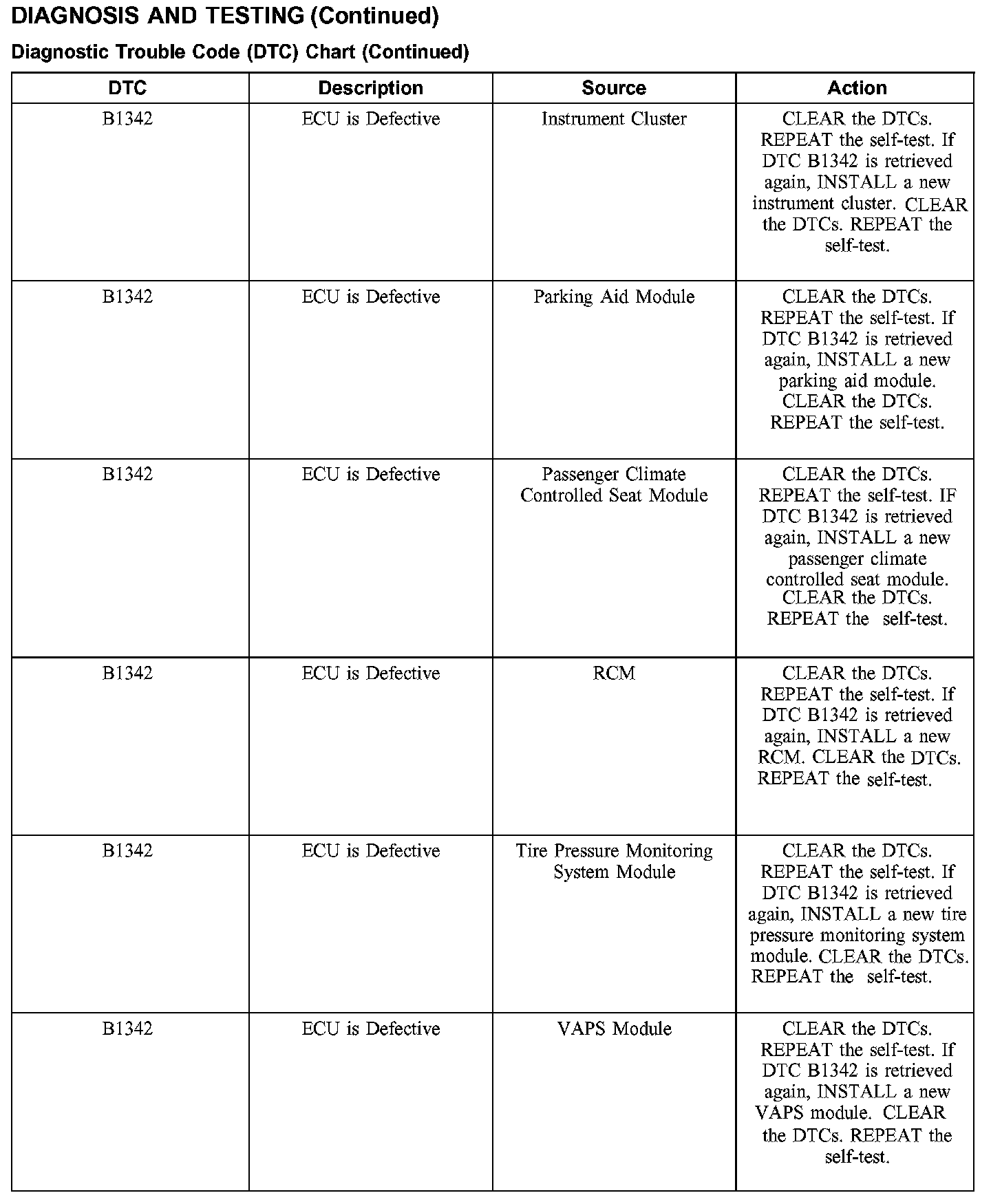

DTC Chart B1342:

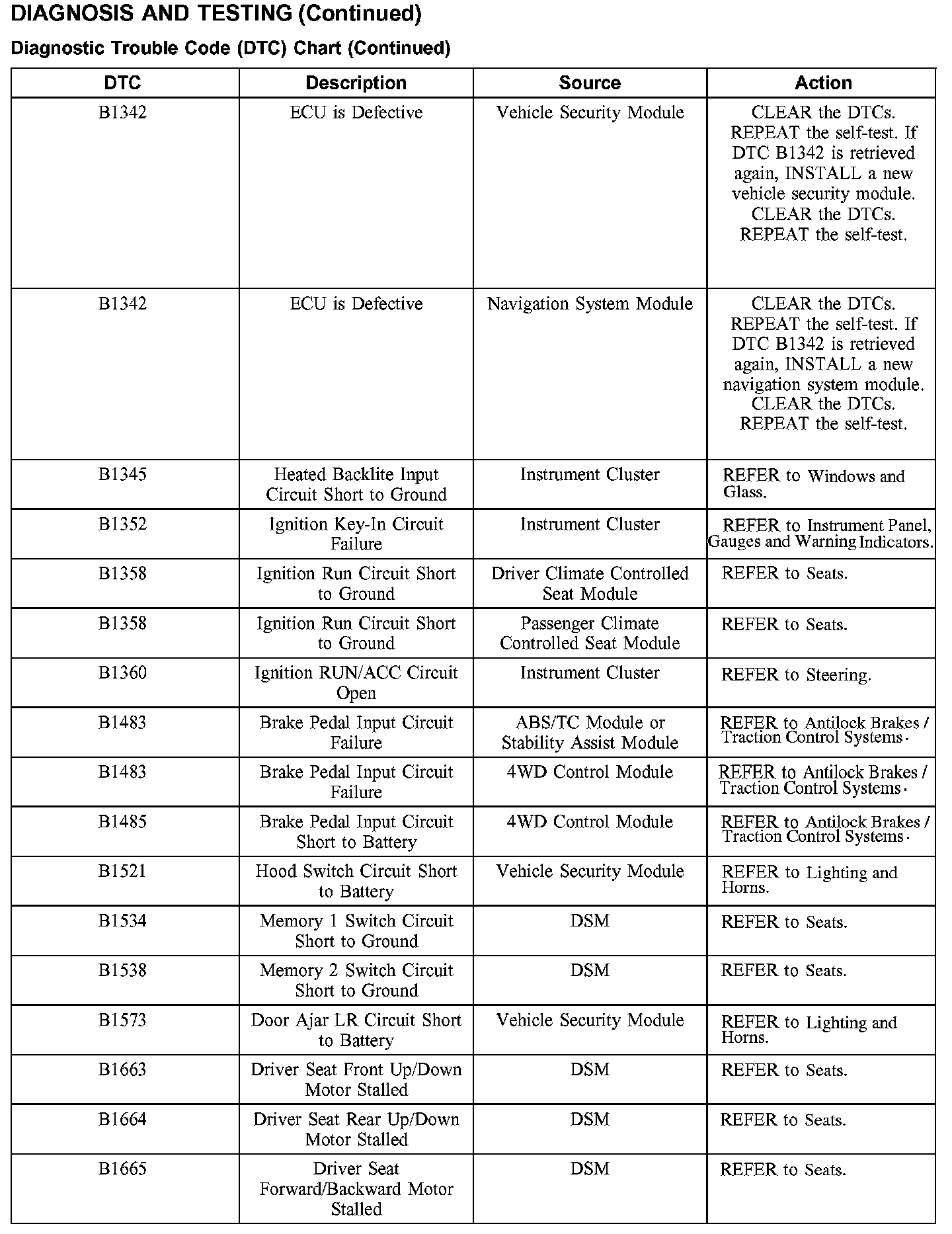

DTC Chart B1342 - B1665:

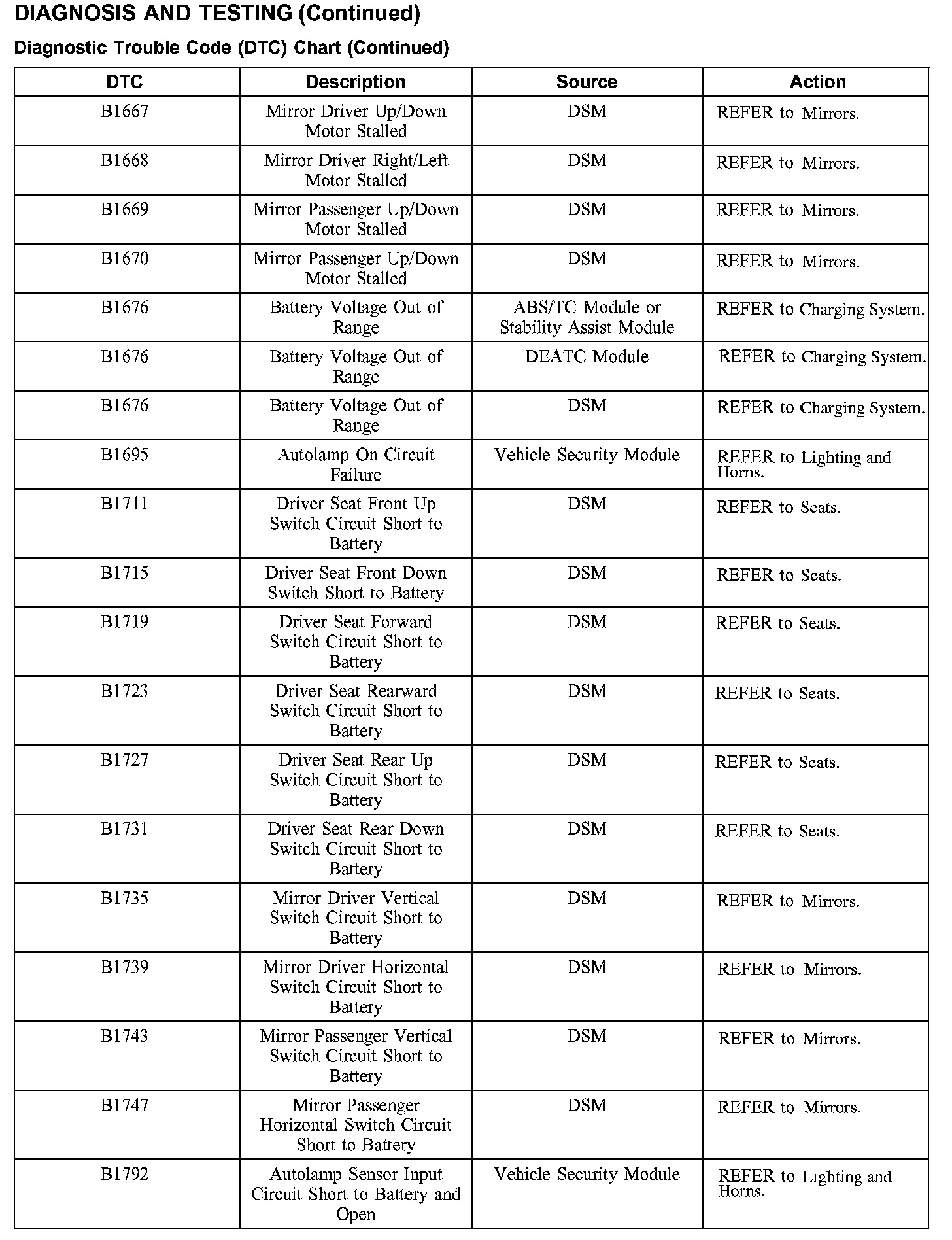

DTC Chart B1667 - B1792:

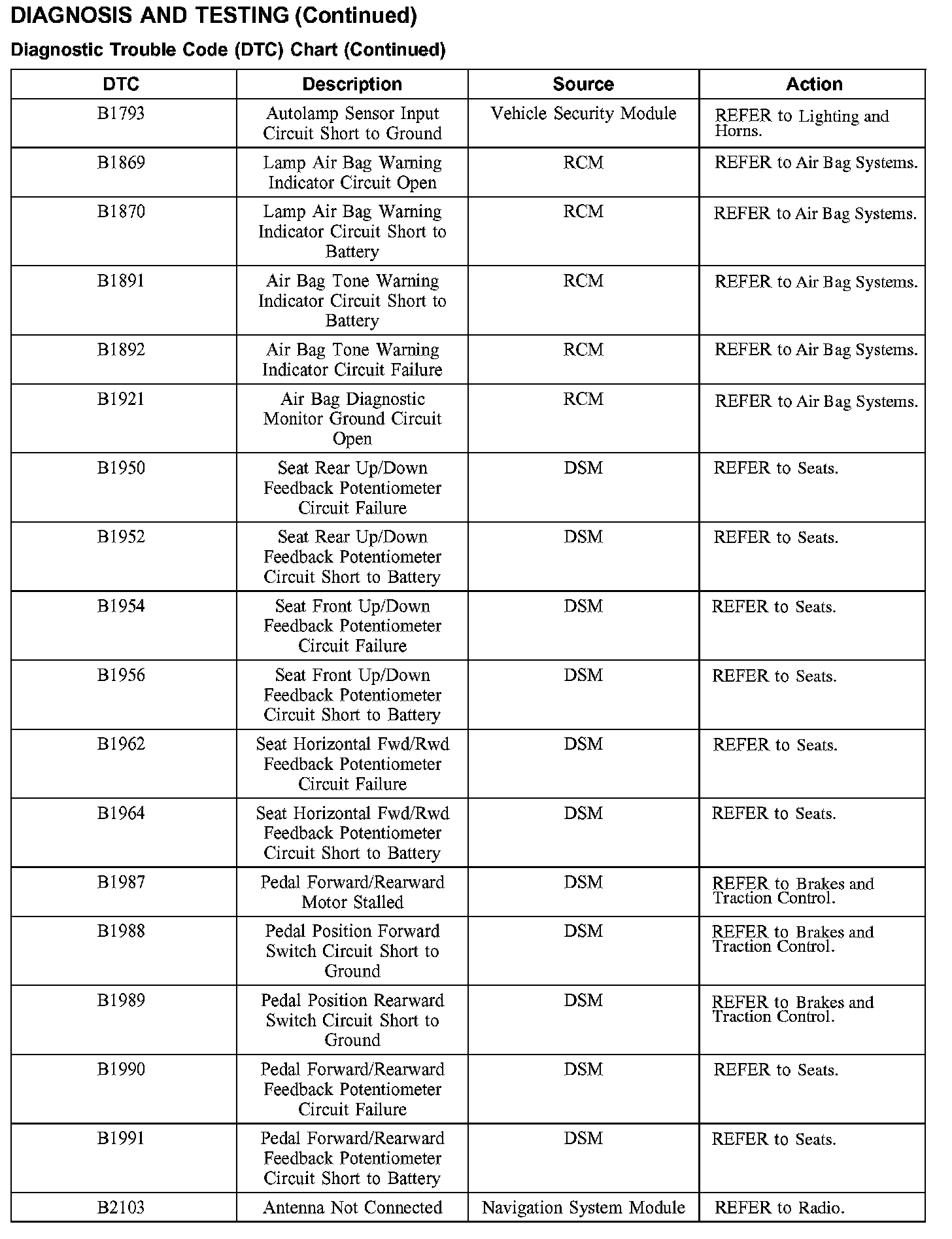

DTC Chart B1793 - B2103:

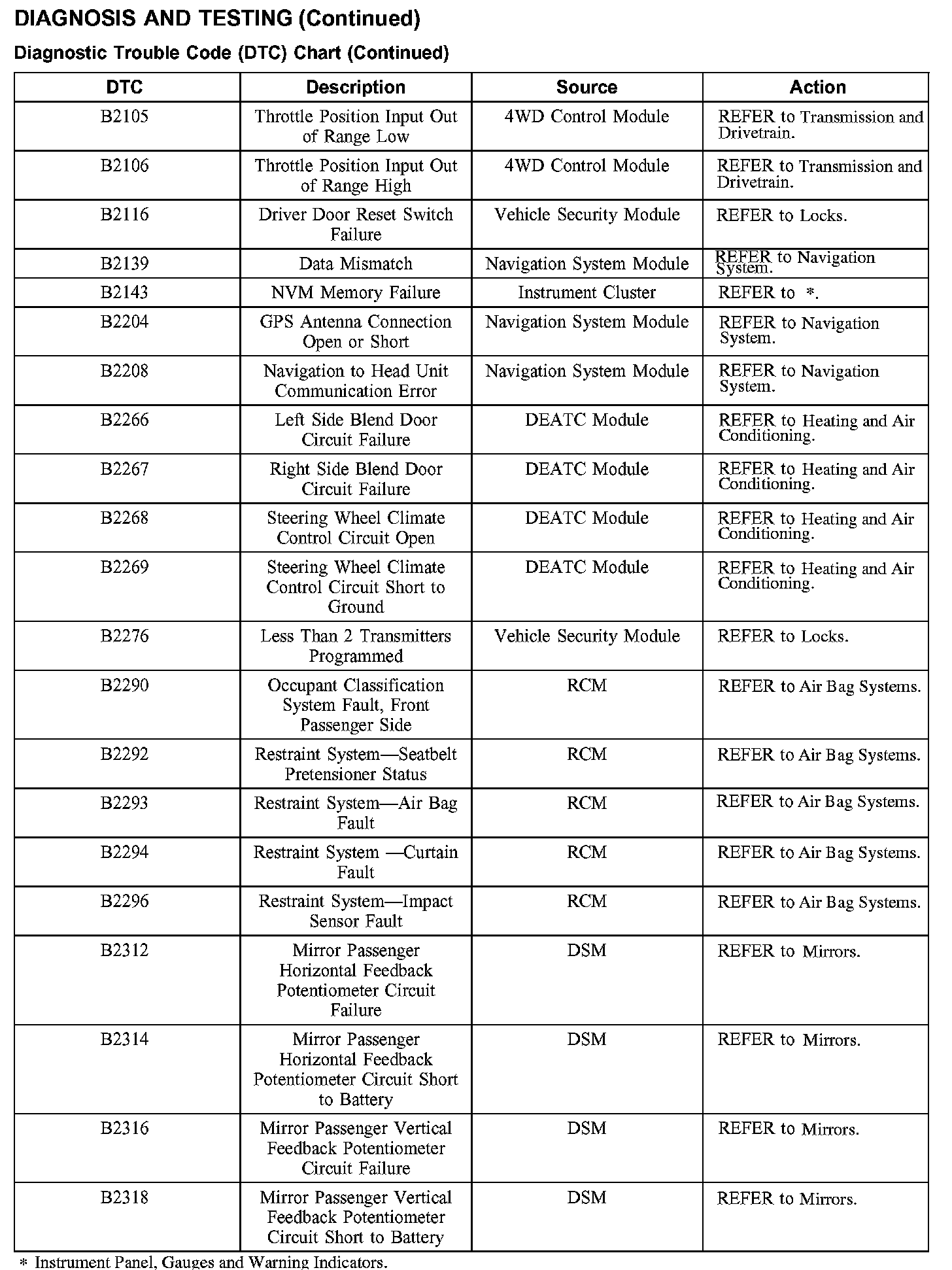

DTC Chart B2105 - B2318:

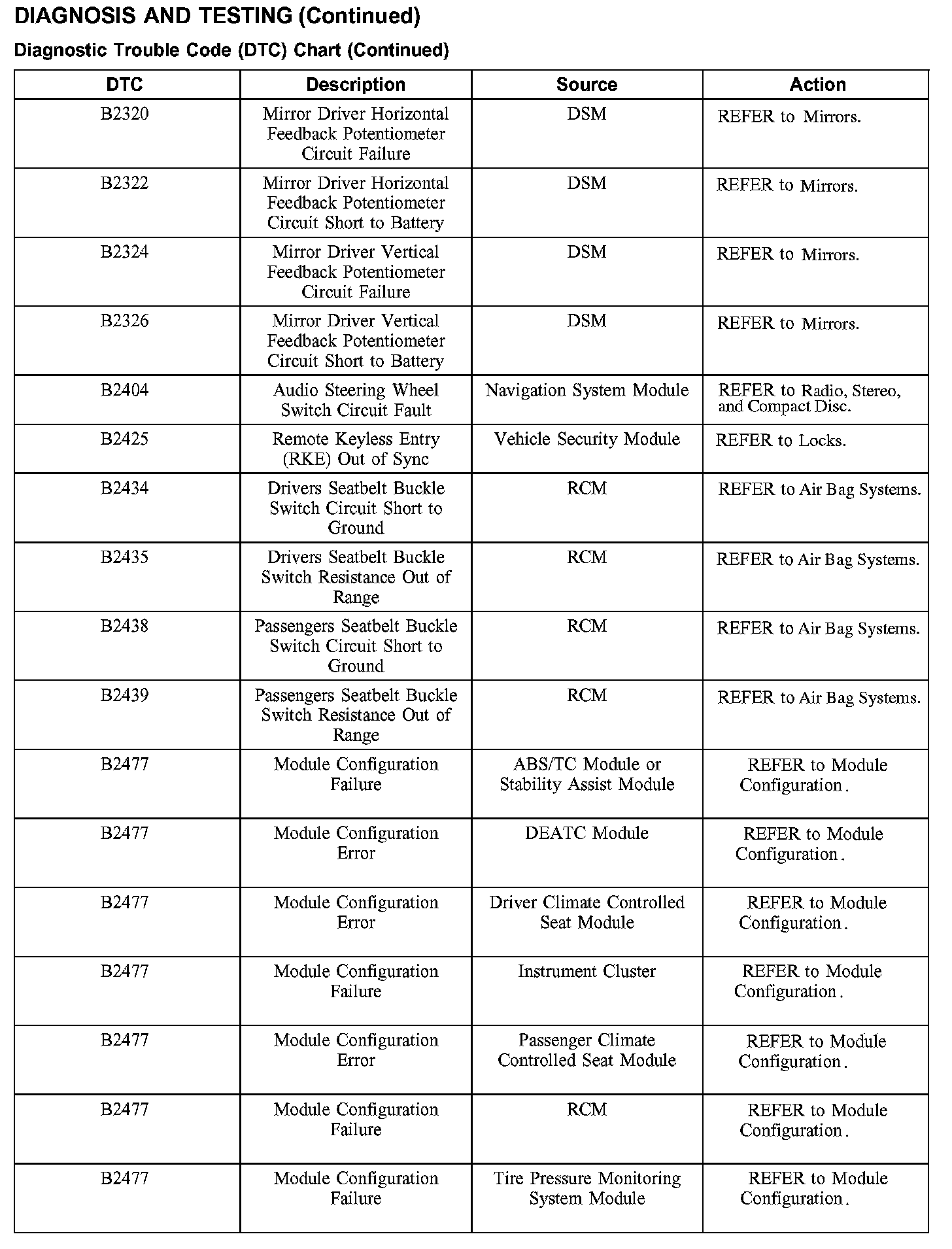

DTC Chart B2320 - B2477:

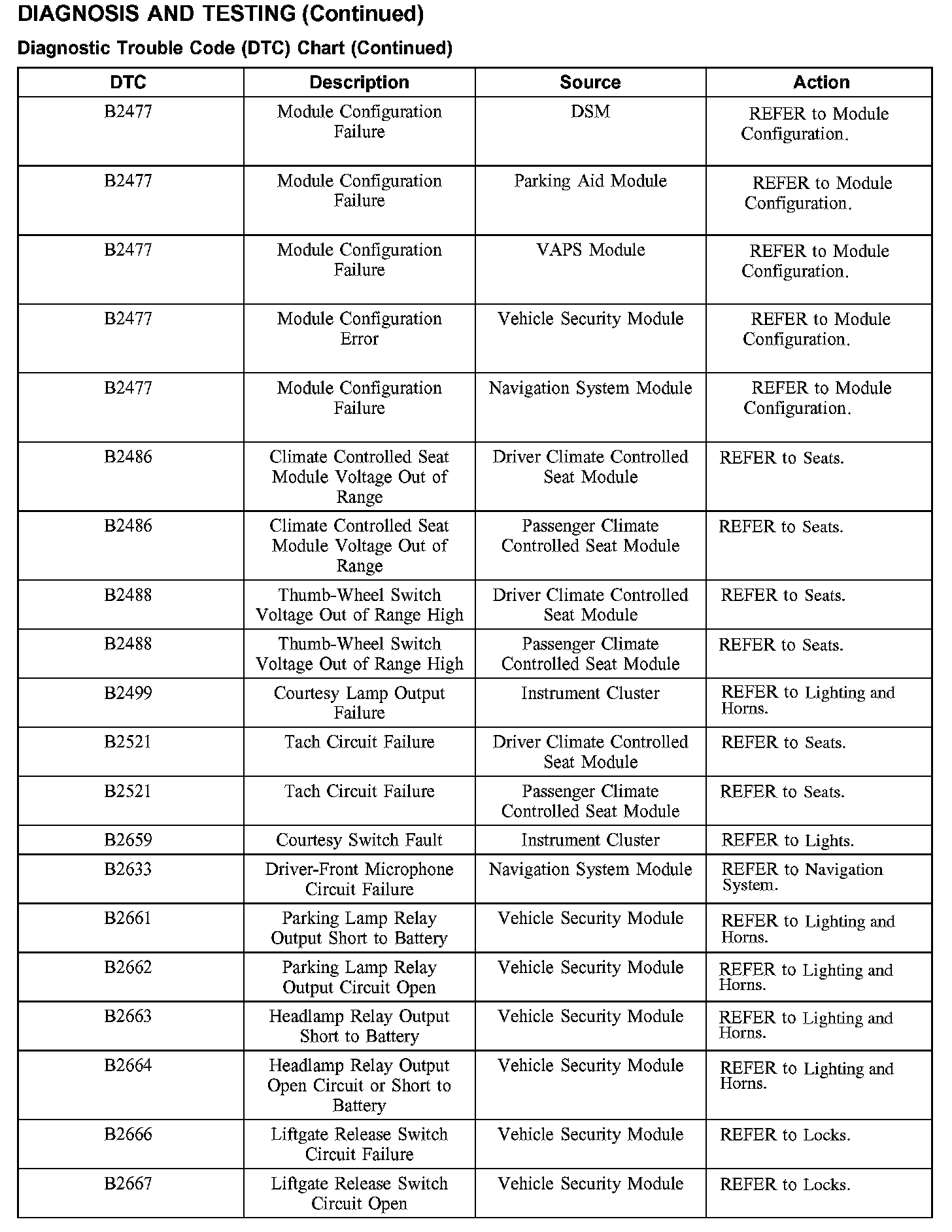

DTC Chart B2477 - B2667:

DTC Chart B2669 - B2849:

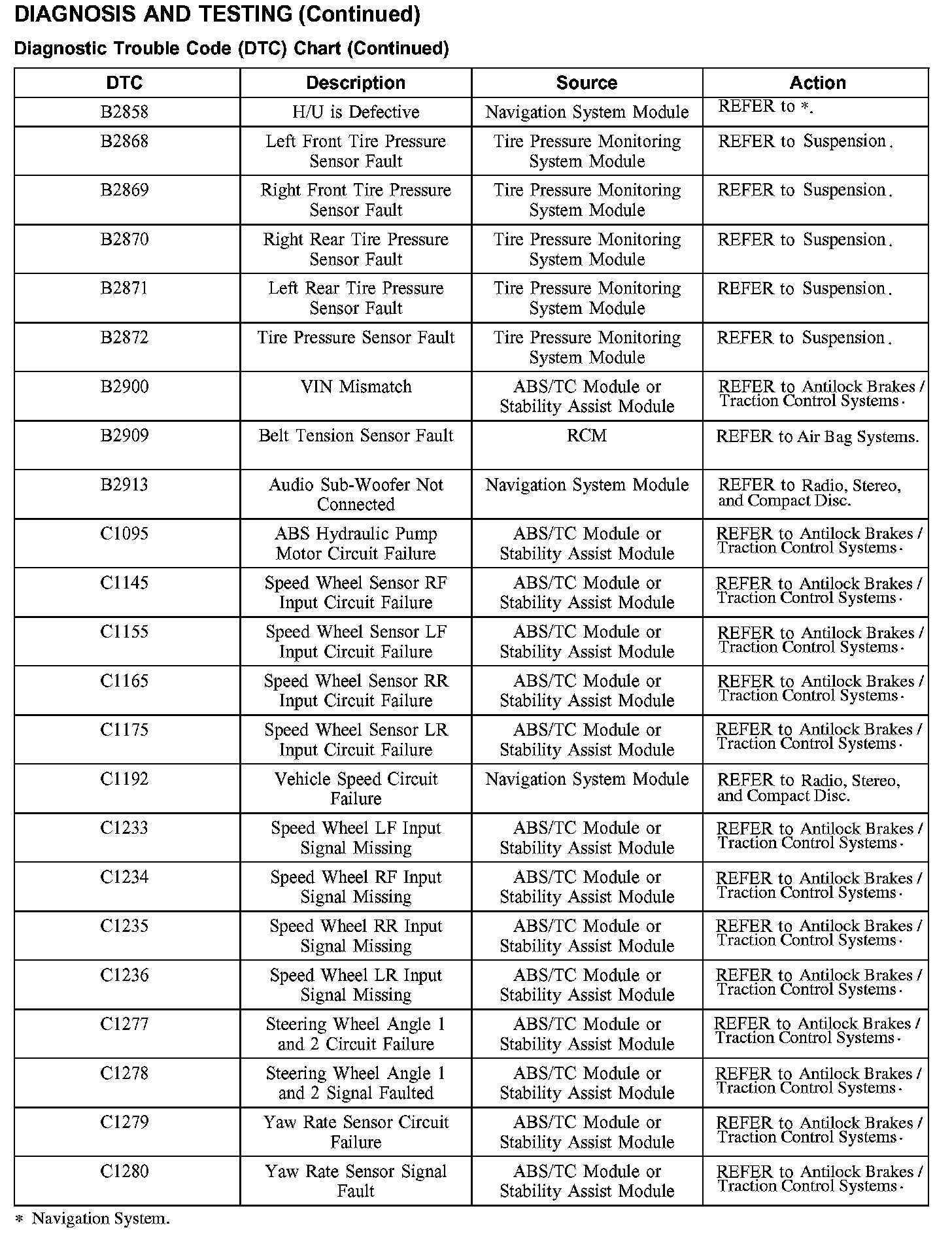

DTC Chart B2858 - C1280:

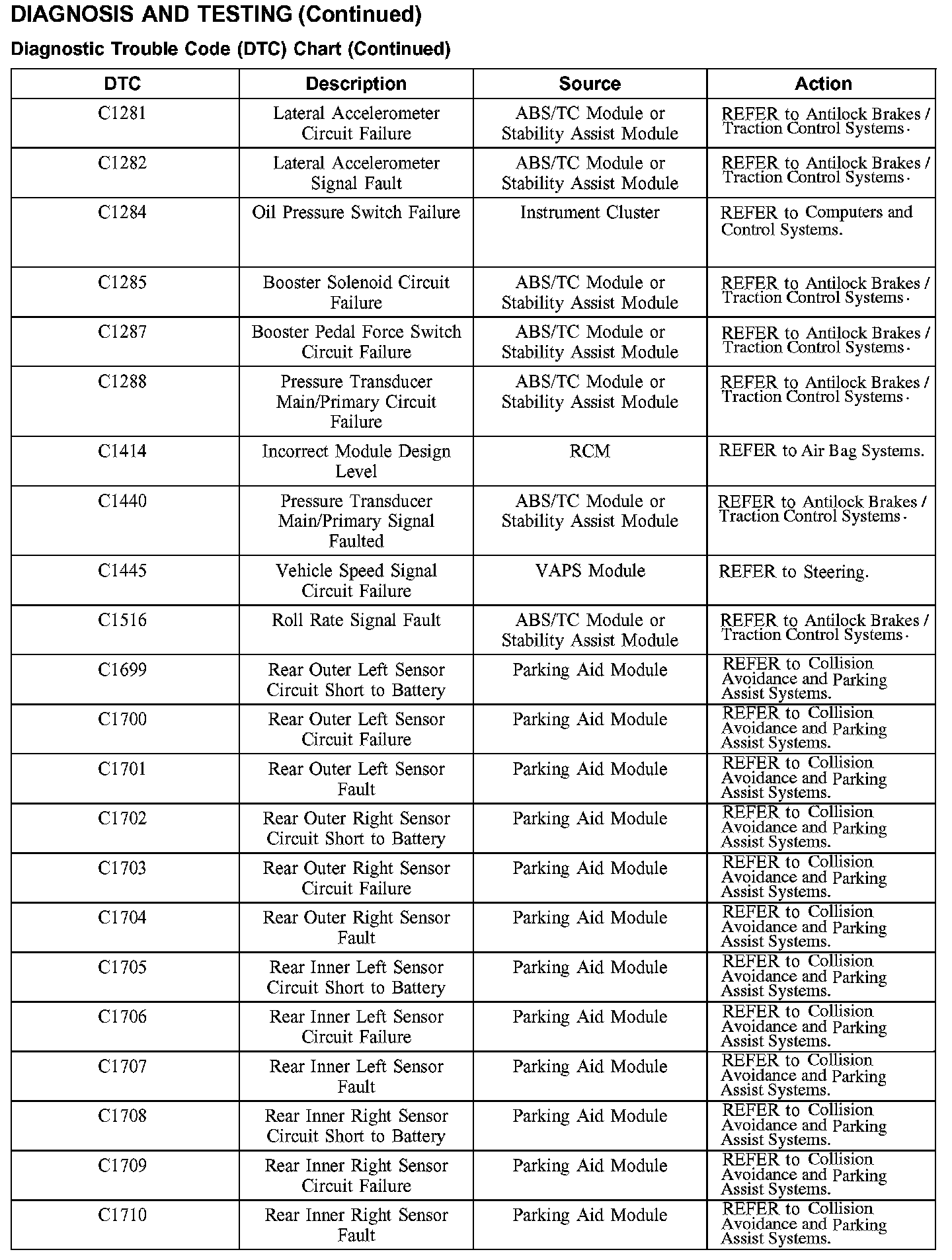

DTC Chart C1281 - C1710:

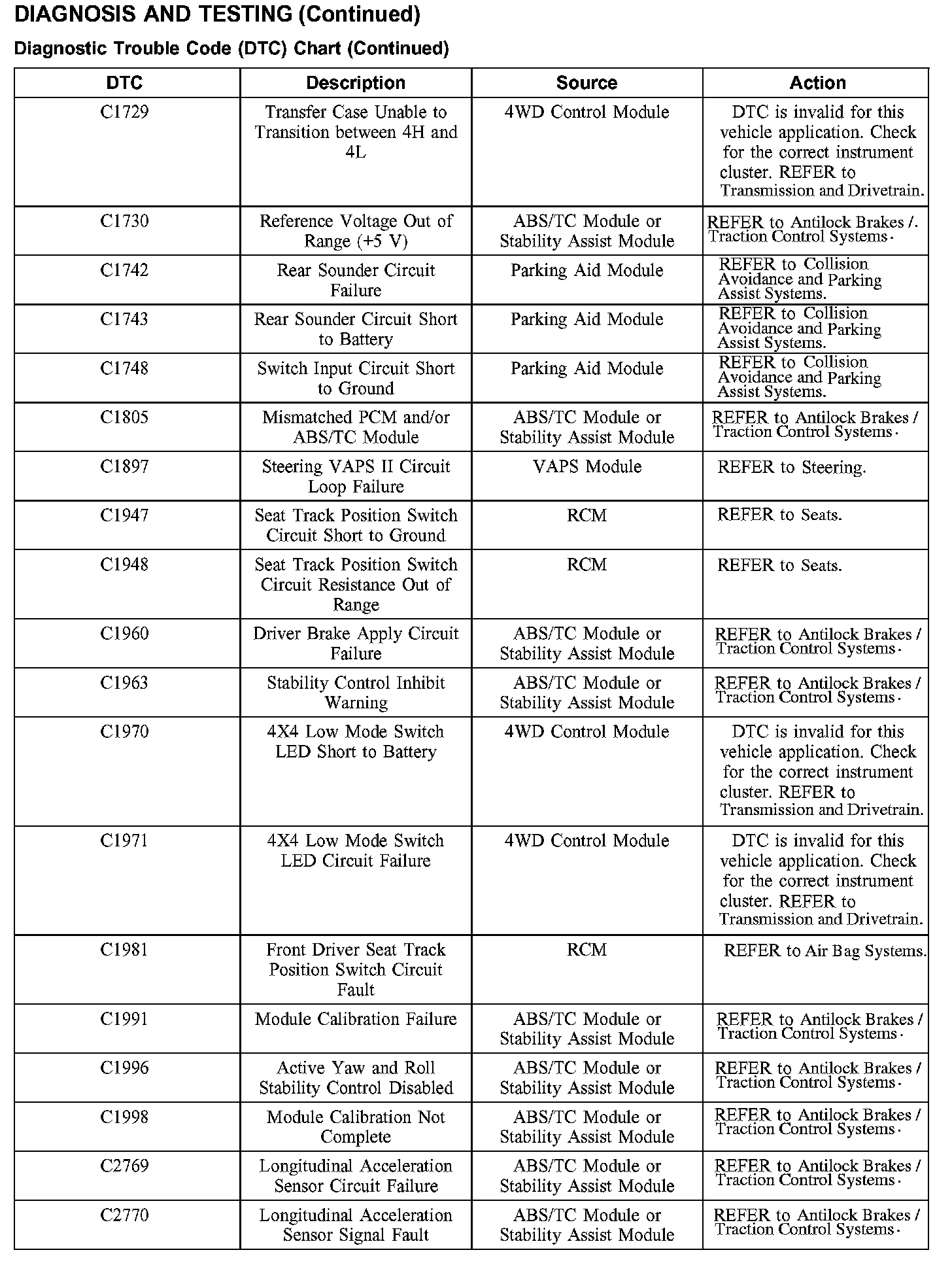

DTC Chart C1729 - C2770:

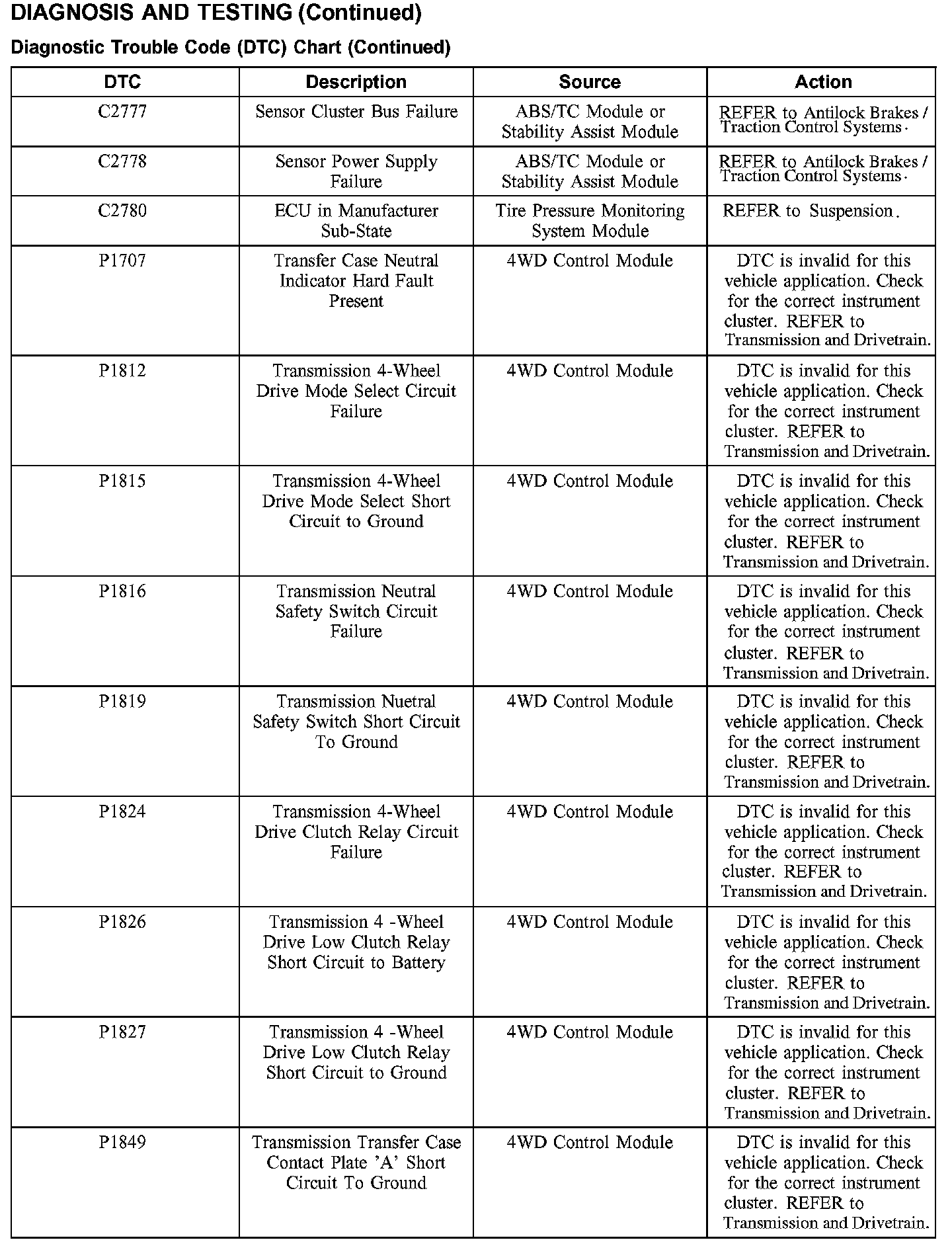

DTC Chart C2777 - P1849:

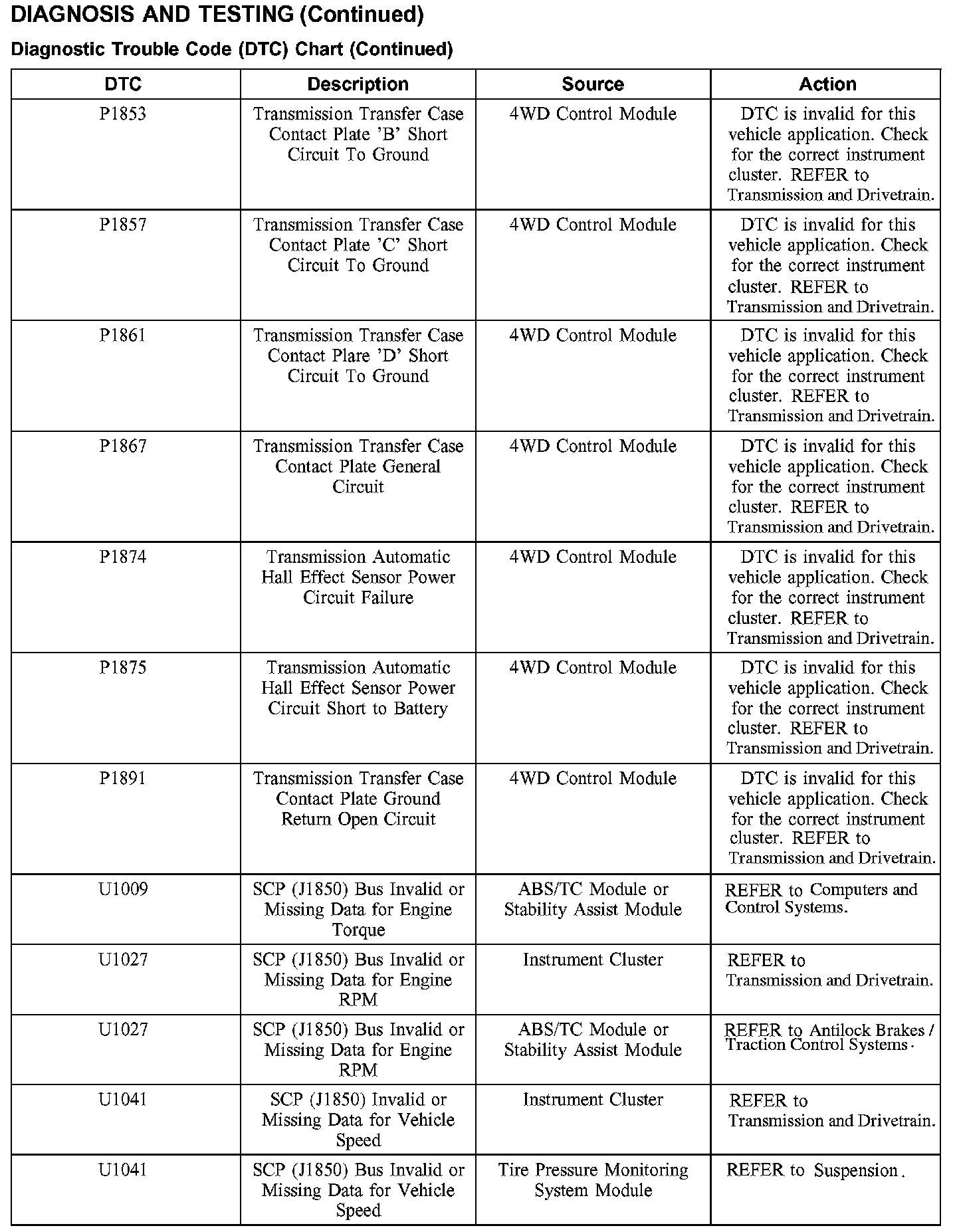

DTC Chart P1853 - U1041:

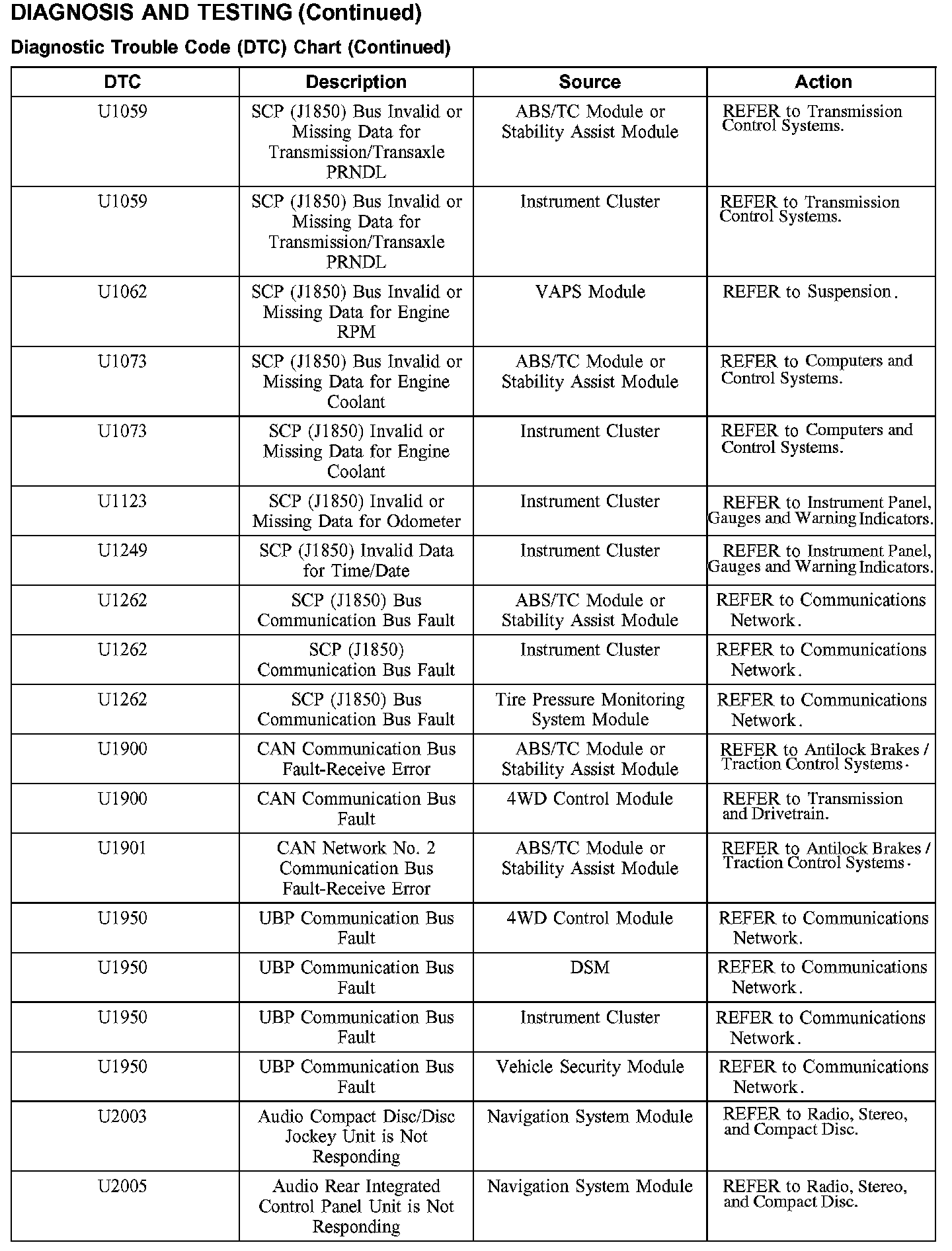

DTC Chart U1059 - U2005:

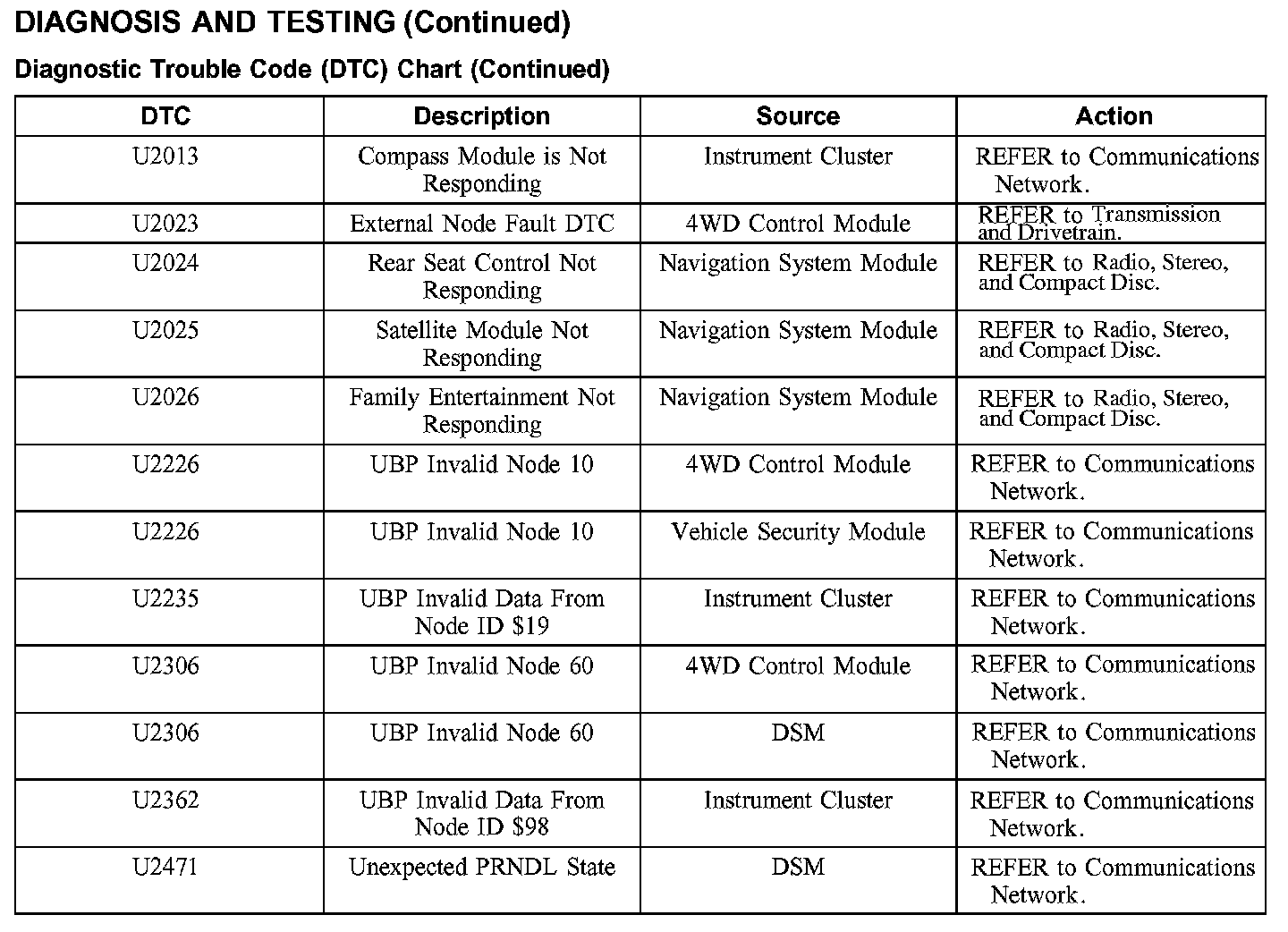

DTC Chart U2013 - U2471:
