Test G

PINPOINT TEST G: NAVIGATION SYSTEM DOES NOT OPERATE CORRECTLY - THE NAVIGATION SCREEN IS INOPERATIVE

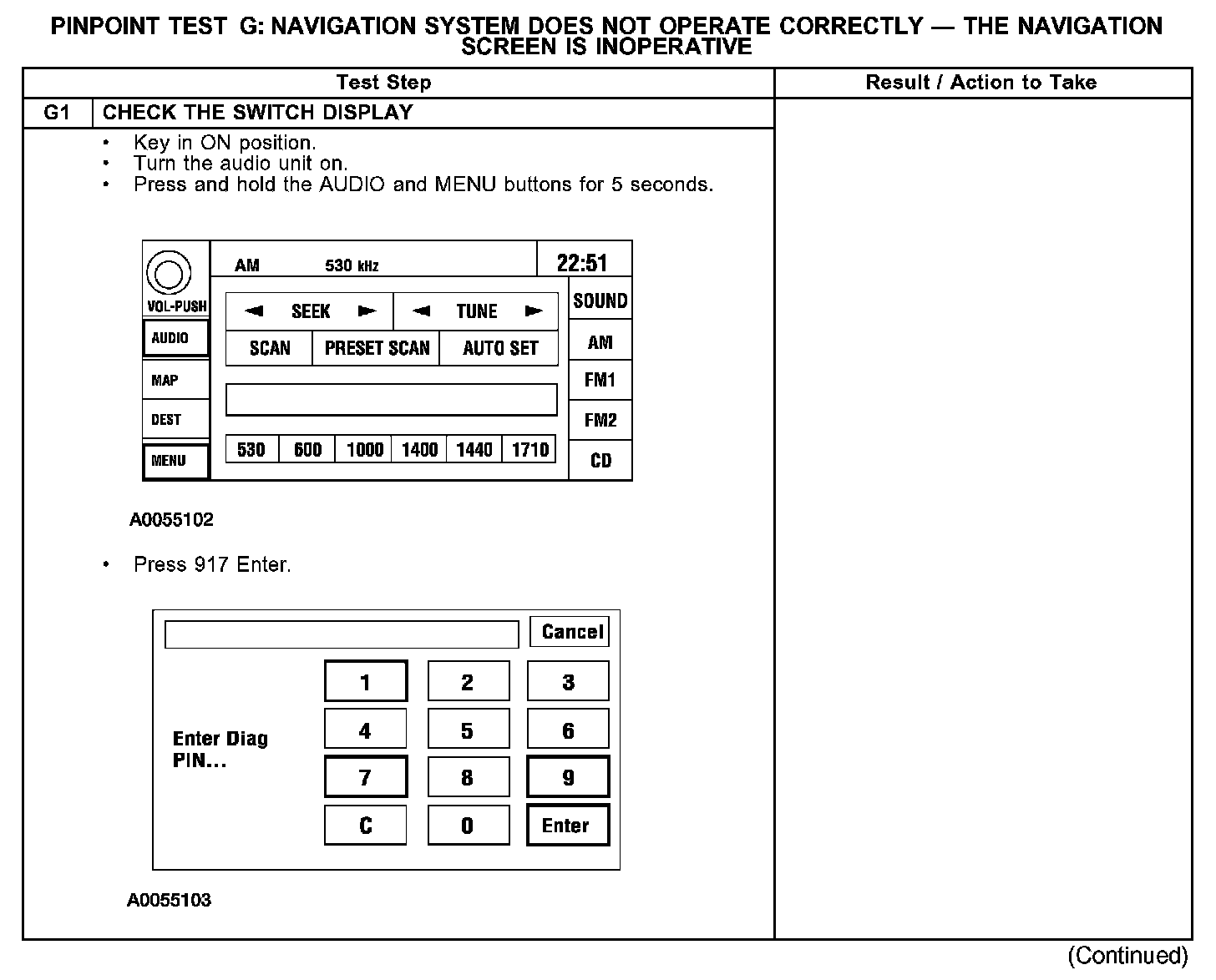

Test G1:






Test G1-G3:






Test G3-G4:






Normal Operation
The screen display of the audio unit for audio and navigation is controlled by the navigation system module. A map digital versatile disc (DVD) stored in the navigation system module sends route data to the audio unit through the video interface circuits.

Possible Causes
- navigation system disc
- navigation system module
- audio unit
