Test N

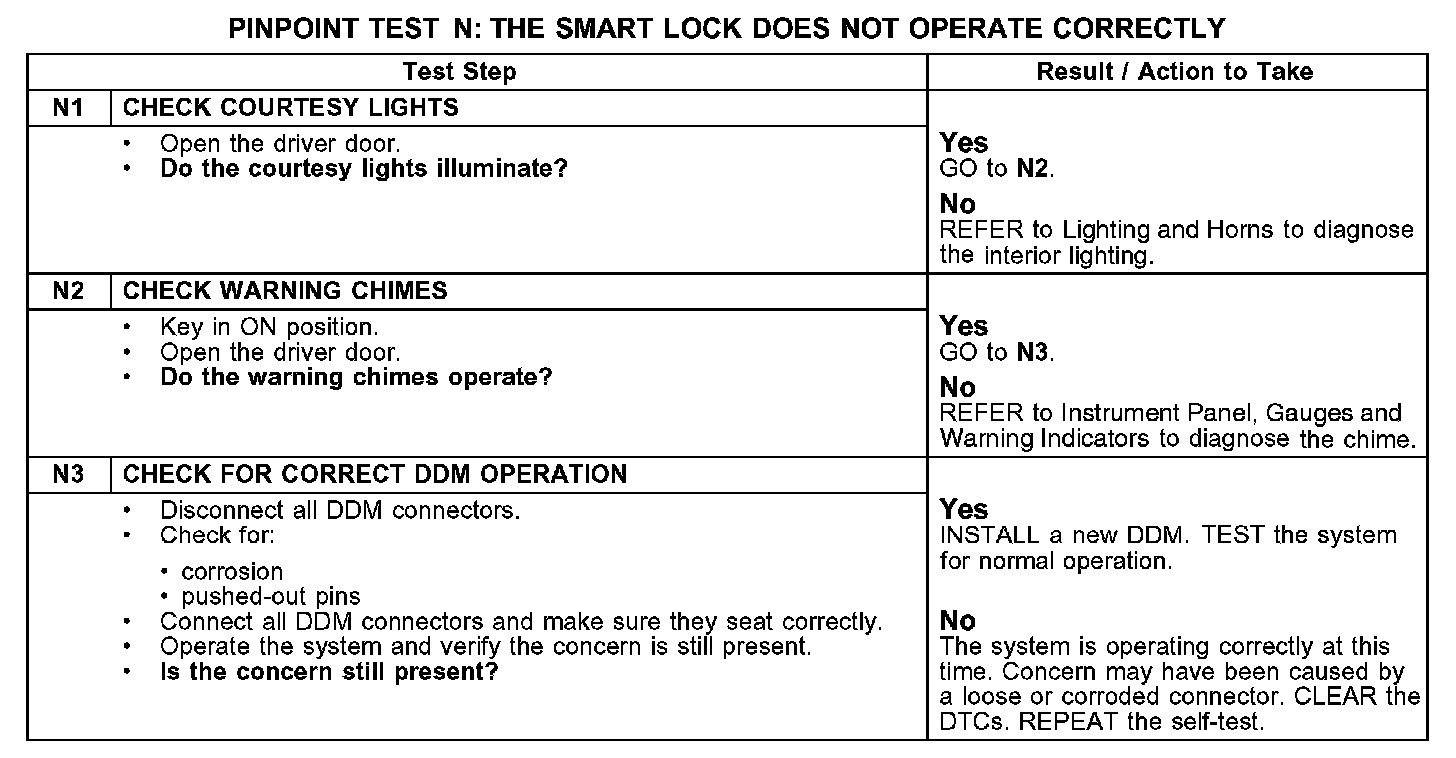

PINPOINT TEST N: THE SMART LOCK DOES NOT OPERATE CORRECTLY

Test N1-N3:

Normal Operation
The smart unlocking function helps prevent the driver from locking the keys in the vehicle. With the driver or passenger door ajar, the key in the ignition and the driver door lock control switch is pressed, all doors will lock then the driver door will unlock. With the driver or passenger door ajar, the key in the ignition and the passenger door lock control switch pressed, all the doors lock, then all the doors will unlock.

Possible Causes
- Driver door ajar switch
- Passenger door ajar switch
- driver door module (DDM)
