Exterior Mirror
EXTERIOR MIRRORREMOVAL 1.
Remove the front door
trim panel.
2.

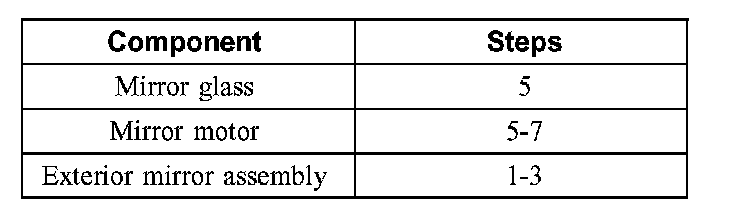

To remove individual components, only carry out the steps.
Part 1:
Part 2:
3.

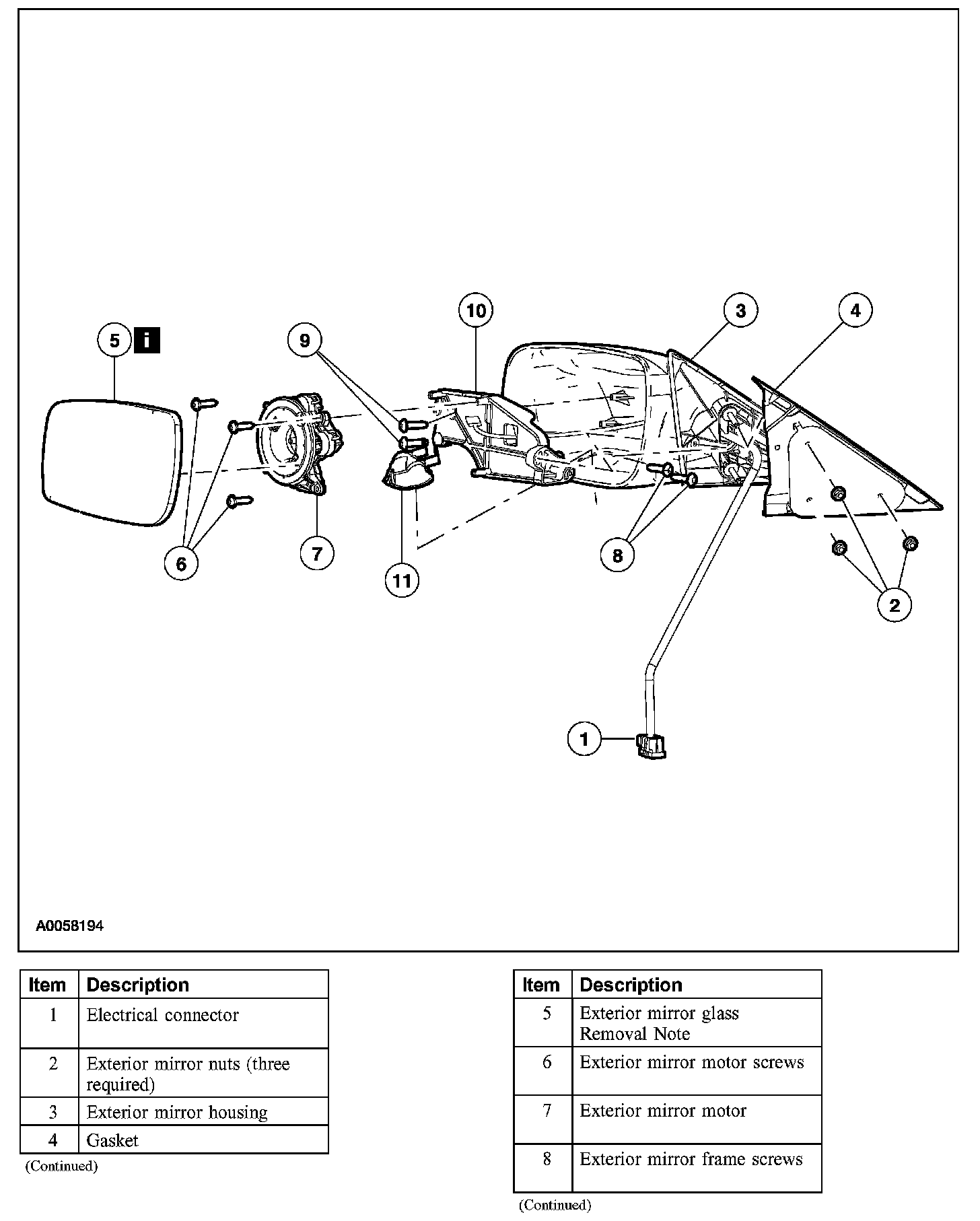

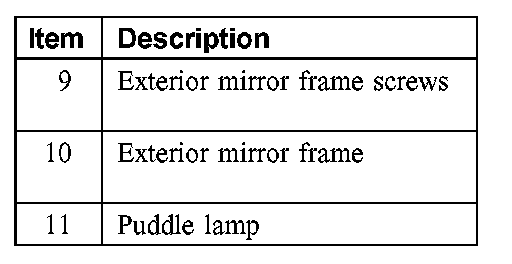

Remove the components in the order indicated in the illustration and table.
Item 5: Mirror Glass Removal Note 1.
If equipped, disconnect the heated mirror electrical connectors.
INSTALLATION 1.
To install, reverse the removal procedure.
