Front

Brake Caliper-Front

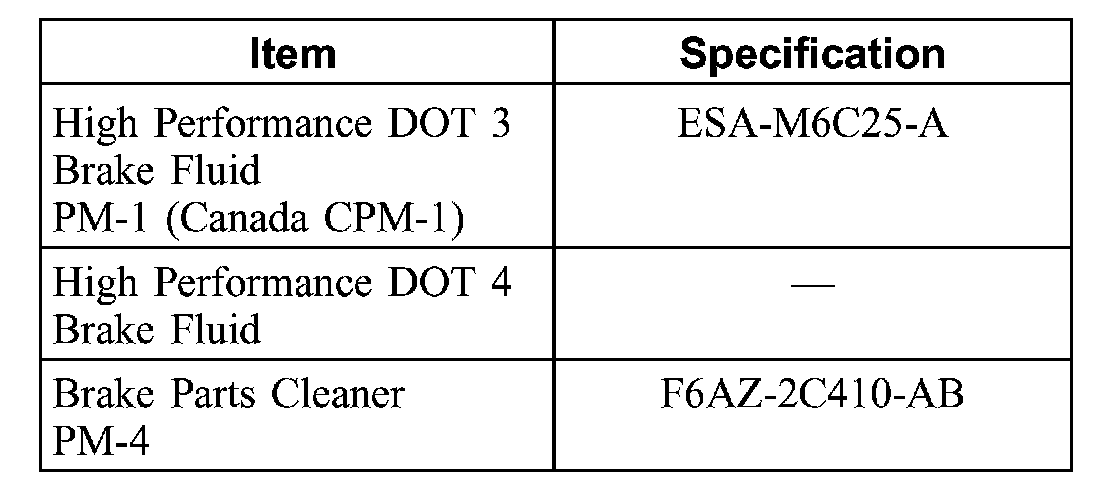

Material:

Material

Disassembly and Assembly
1. Remove the disc brake caliper.
2. Secure the disc brake caliper in a vise.








3. NOTE: Do not hone the piston bores. If the bores are excessively scored or corroded, install a new brake disc caliper.

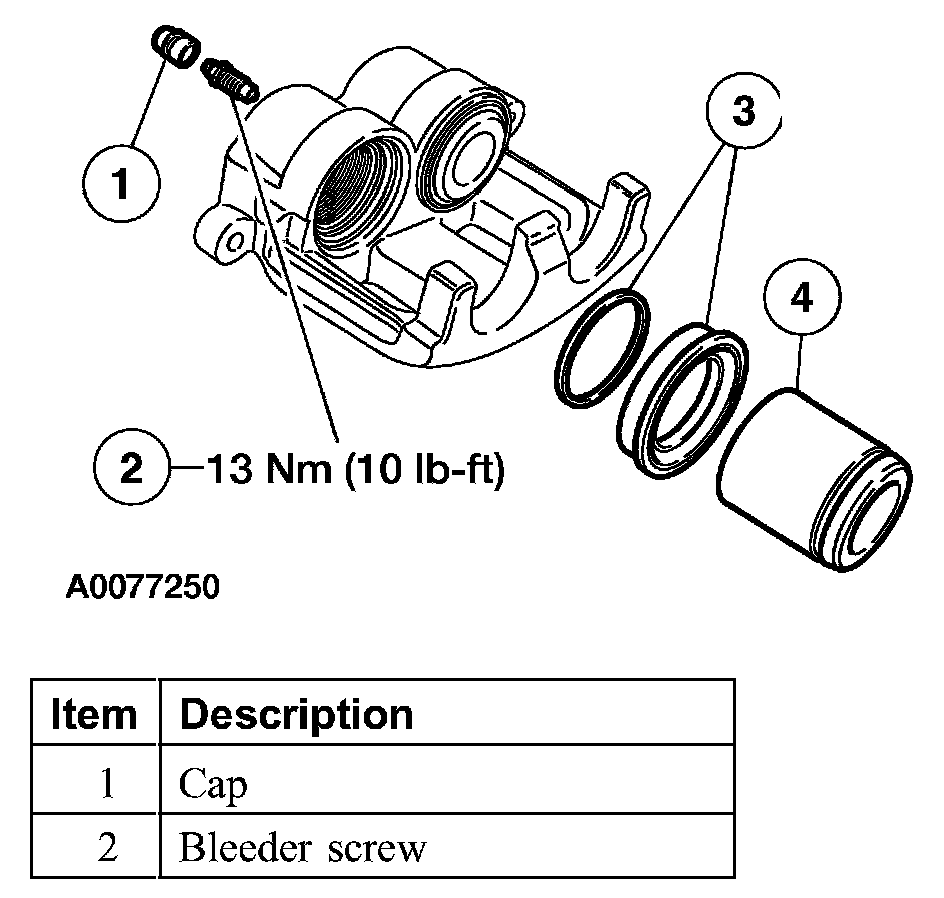

Disassemble the parts in the order indicated in the illustration and table.
4. To assemble, reverse the disassembly procedure.

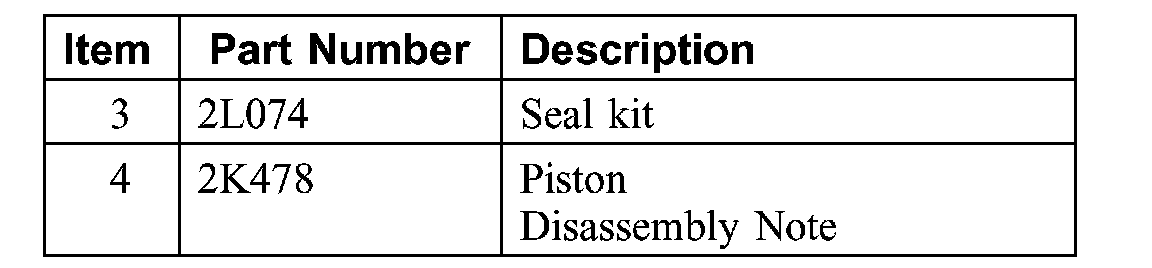

Item 4: Piston Disassembly Note





CAUTION: Apply moderate air pressure in short bursts to prevent an uncontrolled release of the piston.

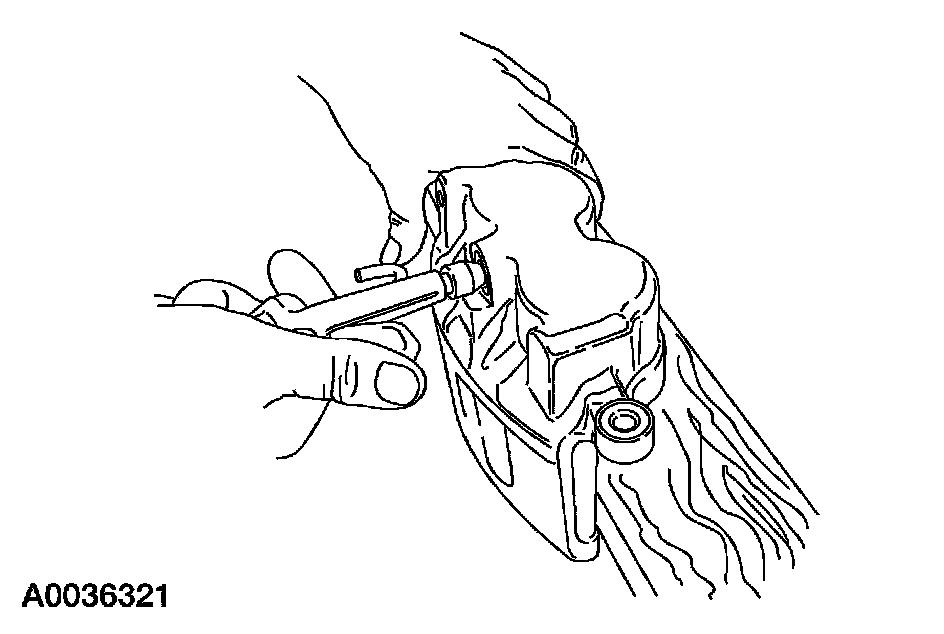

1. Place a piece of wood in the caliper. Remove the piston by applying moderate air pressure through the bleeder screw port.
