Test C

PINPOINT TEST C: THE ADJUSTABLE PEDAL DOES NOT OPERATE

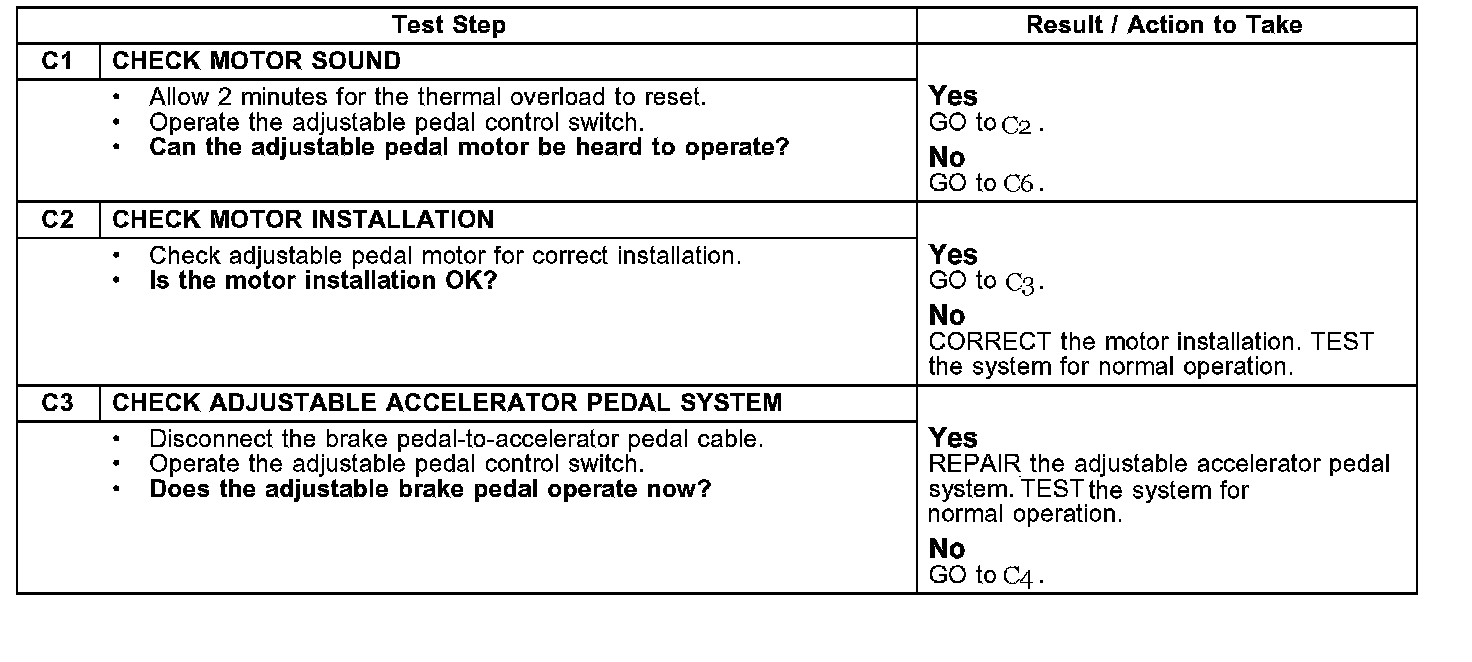

Tests C1 - C3:

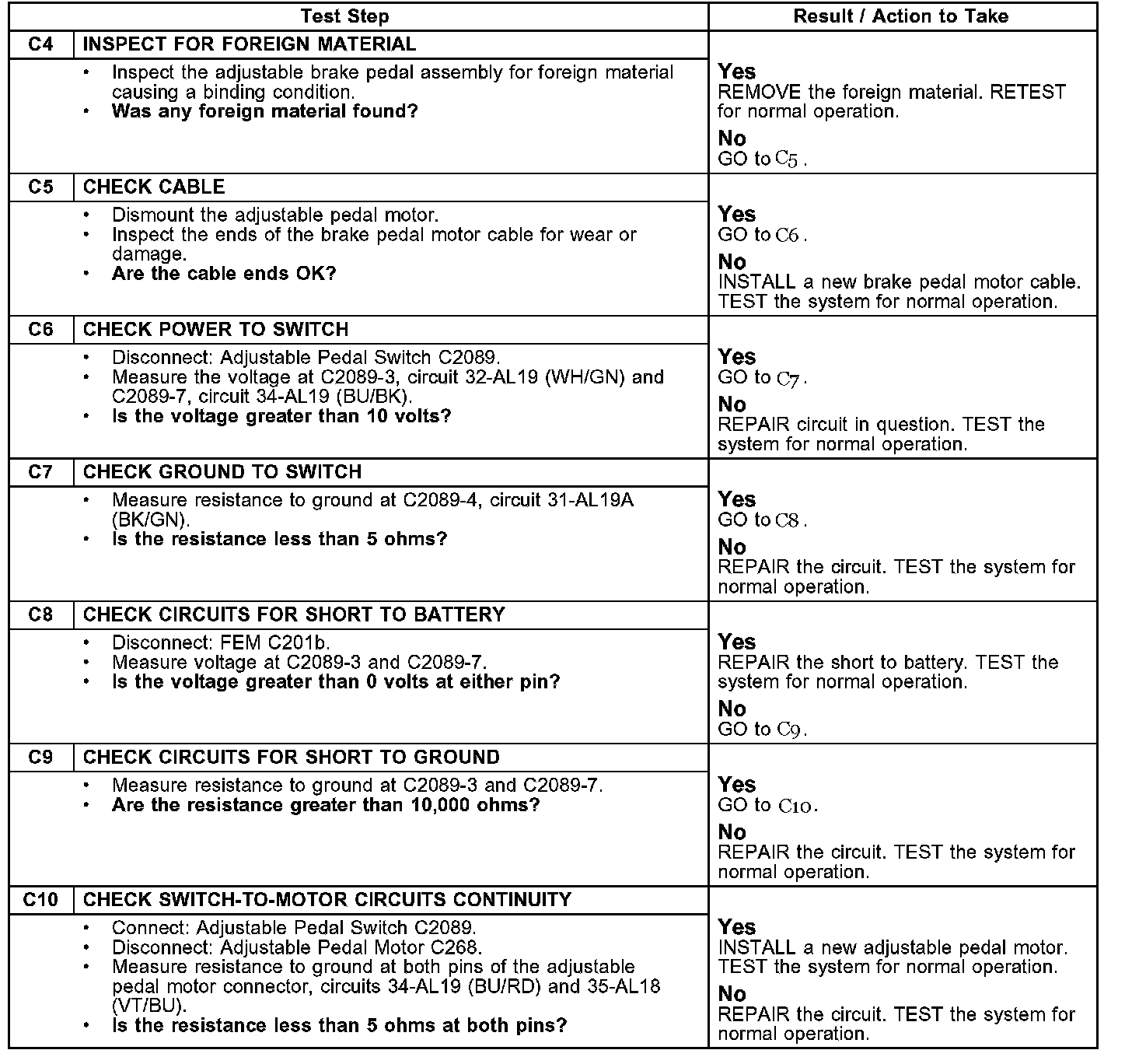

Tests C4 - C10:

Normal Operation
The adjustable brake pedals operate forward or rearward when the adjustable pedal switch is pushed in either direction and current flows from the FEM through circuit 34-AL19 (B U/B K) or circuit 32-AL19 (WH/GN). Ground to the switch is supplied by circuit 31-AL19a (B K GN). The adjustable pedal motor receives power from the FEM through circuit 34-AL18 (B U/RD) (rearward) or circuit 35-AL18 (VT/B U (forward). The adjustable motor connects to a cable that transmits motor rotation into the adjustable brake pedal assembly. Another cable transmits motor rotation between the brake pedal assembly and the accelerator pedal assembly.

Possible Causes
^ adjustable pedal motor
^ circuit 32-AL19 (WH/GN) open, short to ground, short to power
^ circuit 34-AL19 (B U/B K) open, short to ground, short to power
^ circuit 31-AL19A (B K GN) open
^ circuit 34-AL18 (B U/RD) open
^ circuit 35-AL18 (VT/B U) open
^ adjustable pedal motor cables
^ adjustable pedal switch
