PINPOINT TEST G: DTC C1769/C1783: PARK BRAKE APPLY/RELEASE SWITCH SHORT TO GROUND

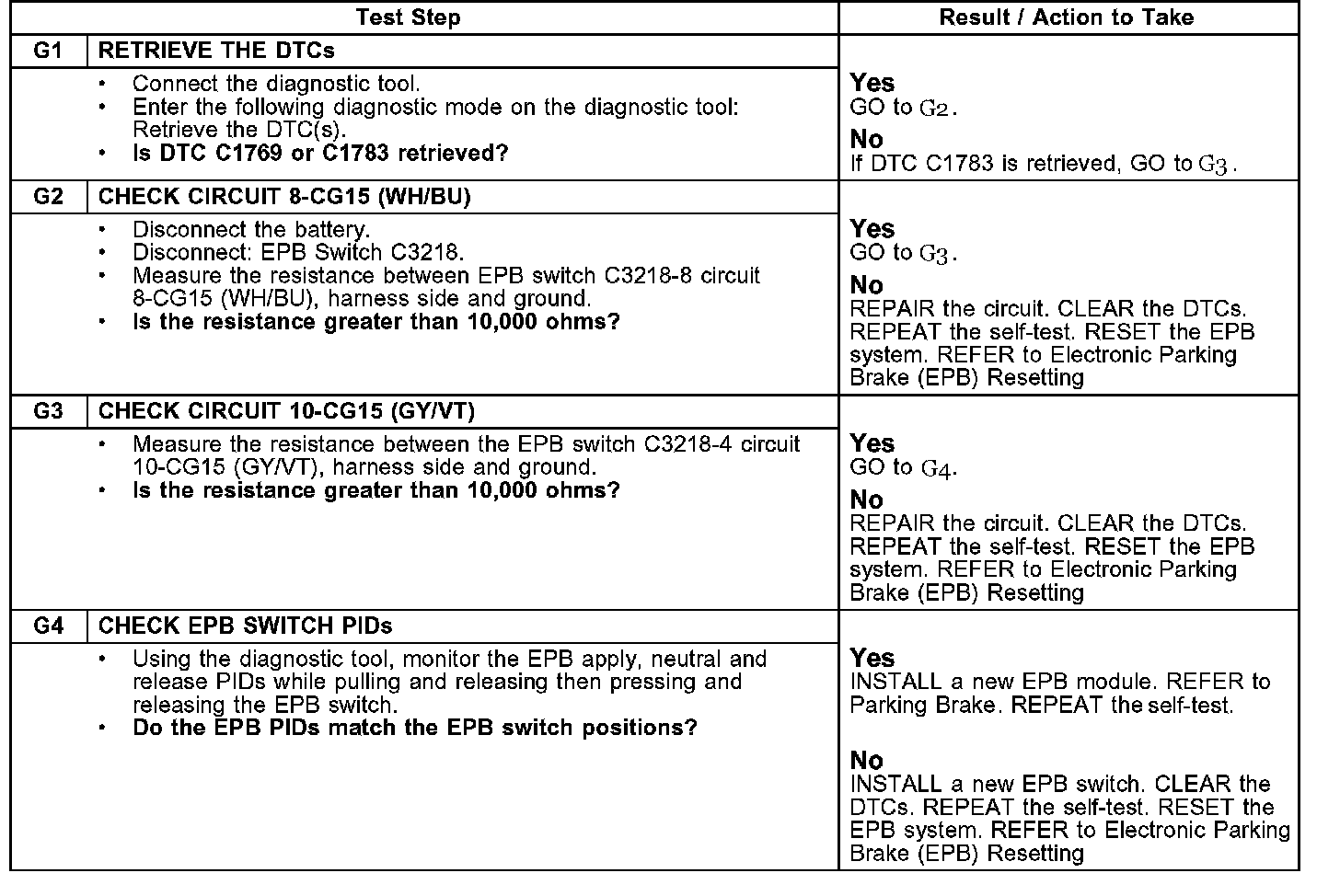

Steps G1 - G4:






Normal Operation
The EPB switch circuits 8-CG15 (WH/BU) and 10-CG15 (GY/VT) receive a reference voltage from the EPB module when the switch is in its neutral position. This voltage is between 3.5 and 4.5 volts. When the switch contacts close on the apply or release side, a resistor inside the switch is shorted, causing the voltage on switch circuits 8-CG15 (WH/BU) or 10-CG15 (GY/VT) to change from 1.5 to 3.0 volts. When the EPB module receives this voltage range on the apply or release circuit, an output signal is generated to the actuator to apply or release the EPB.

Possible Causes
^ circuit 8-CG15 (WH/BU) short to ground
^ circuit 1 0-CG 15 (GY/VT) short to ground
^ EPB module
^ EPB switch

CAUTION: Use the Flex Probe Kit for all test connections to prevent damage to the wiring terminals. Do not use standard multimeter probes.
