Engine Emission Control

Engine Emission Control

CAUTION: Do not remove any part of the engine emission control system. Operating the engine without the engine emission control system will reduce fuel economy and engine ventilation. This will weaken engine performance and shorten engine life.

The engine emission control consists of the:
^ exhaust gas recirculation (EGR) system.

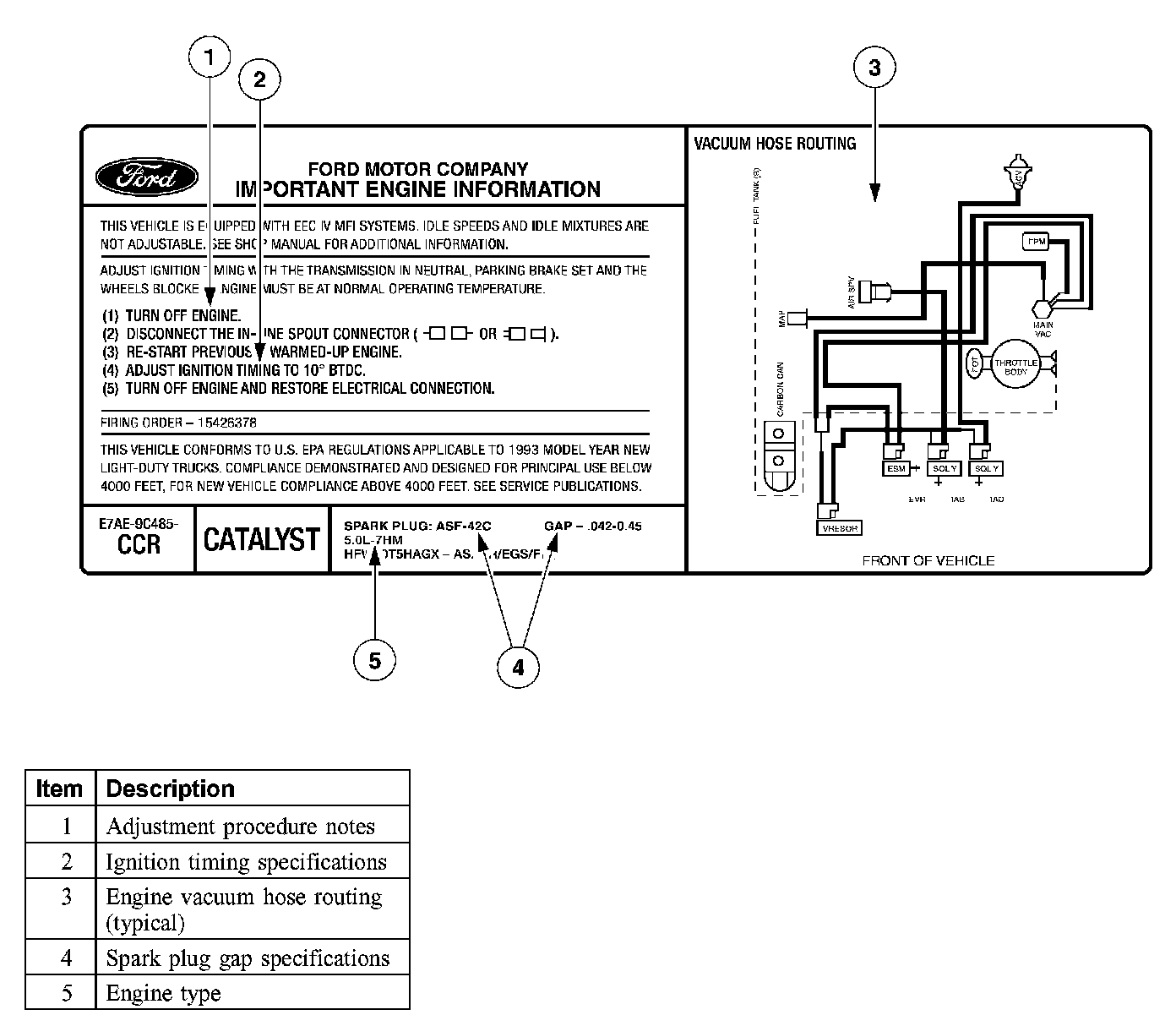

Typical Vehicle Emission Control Information (VECI) Decal

The Vehicle Emission Control Information (VECI) decal shows:
^ the components of the emission control system.
^ the correct vacuum hose routing.
