System Specifications
Timing chain guide bolt
11 Nm (97 inch lbs.)
Timing chain tensioner arm
11 Nm (97 inch lbs.)
Timing chain tensioner 11 Nm (8 ft. lbs.)
Crankshaft Pulley
Stage 1
80 Nm (59 ft. lbs.)
Stage 2
Loosen the bolt two complete turns
Stage 3
50 Nm (37 ft. lbs.)
Stage 4
90 degrees

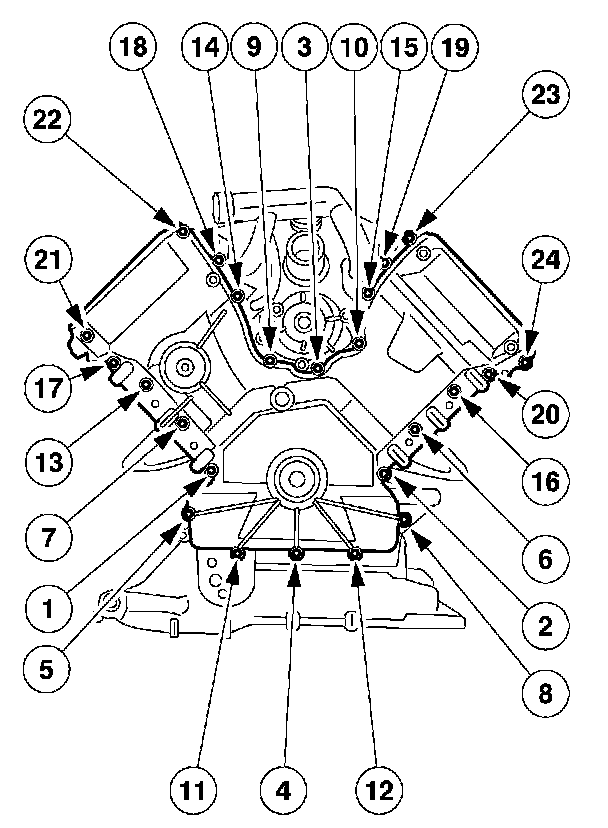

Torque Sequence:
Timing Cover Stage 1
5 Nm (44 inch lbs.)
Stage 2
10 Nm (89 inch lbs.)
