Connector Location Index
PLEASE NOTE: If a link on the Connector Location Index to a View is not provided, that means that the Connector and/or View in question does NOT apply to the vehicle model selected.

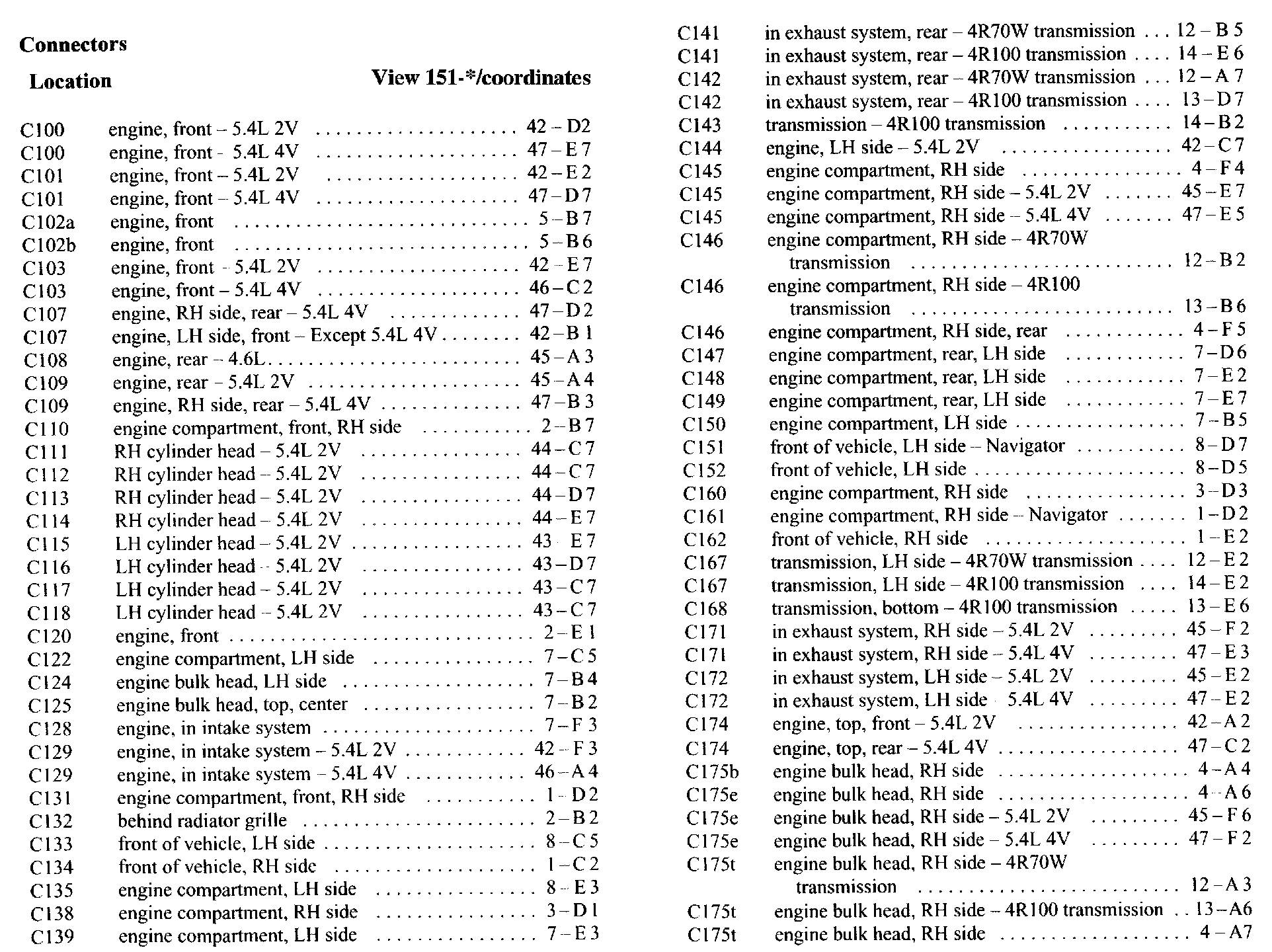

C100-C175:

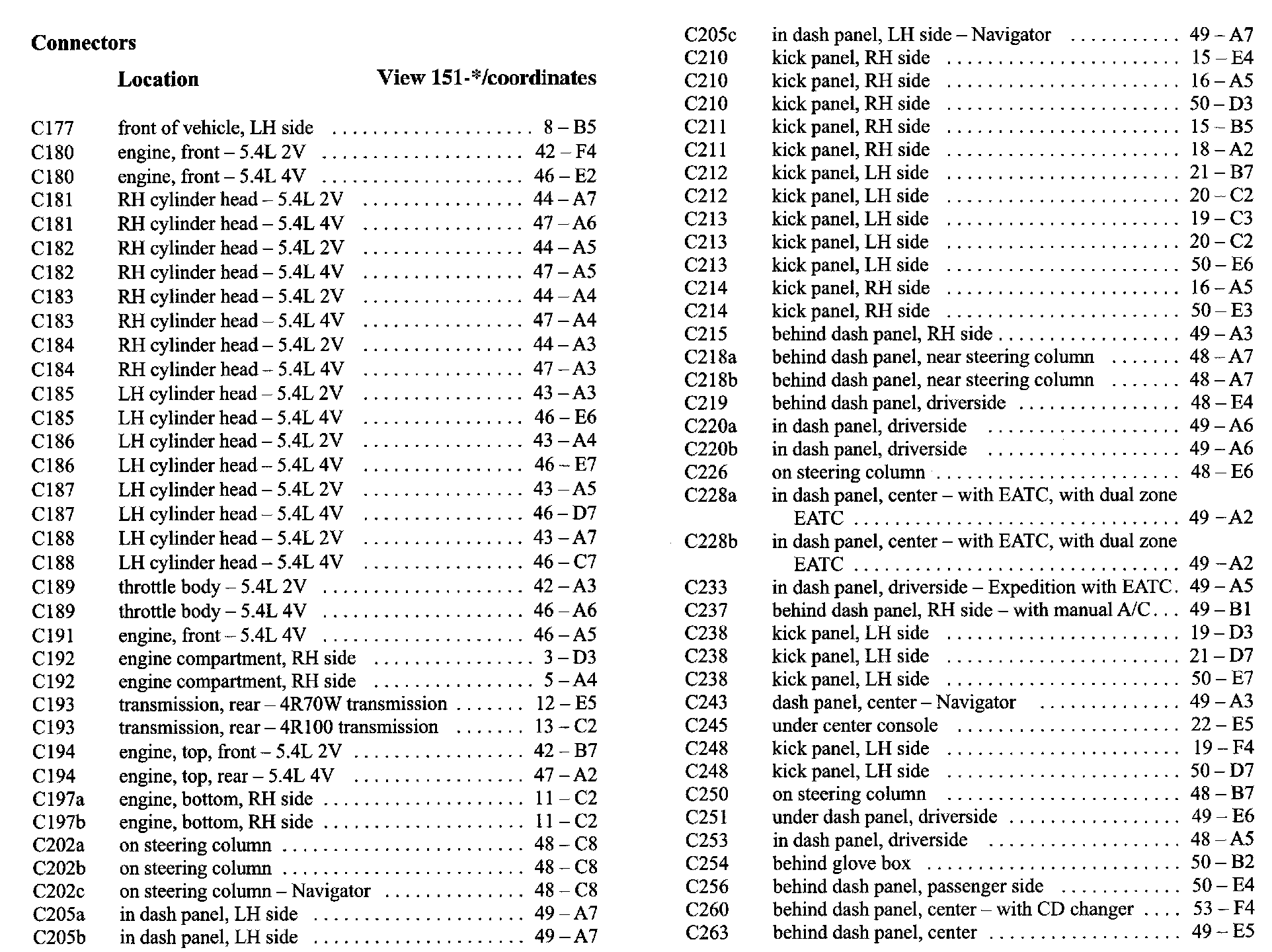

C177-C263:
C264-C340:

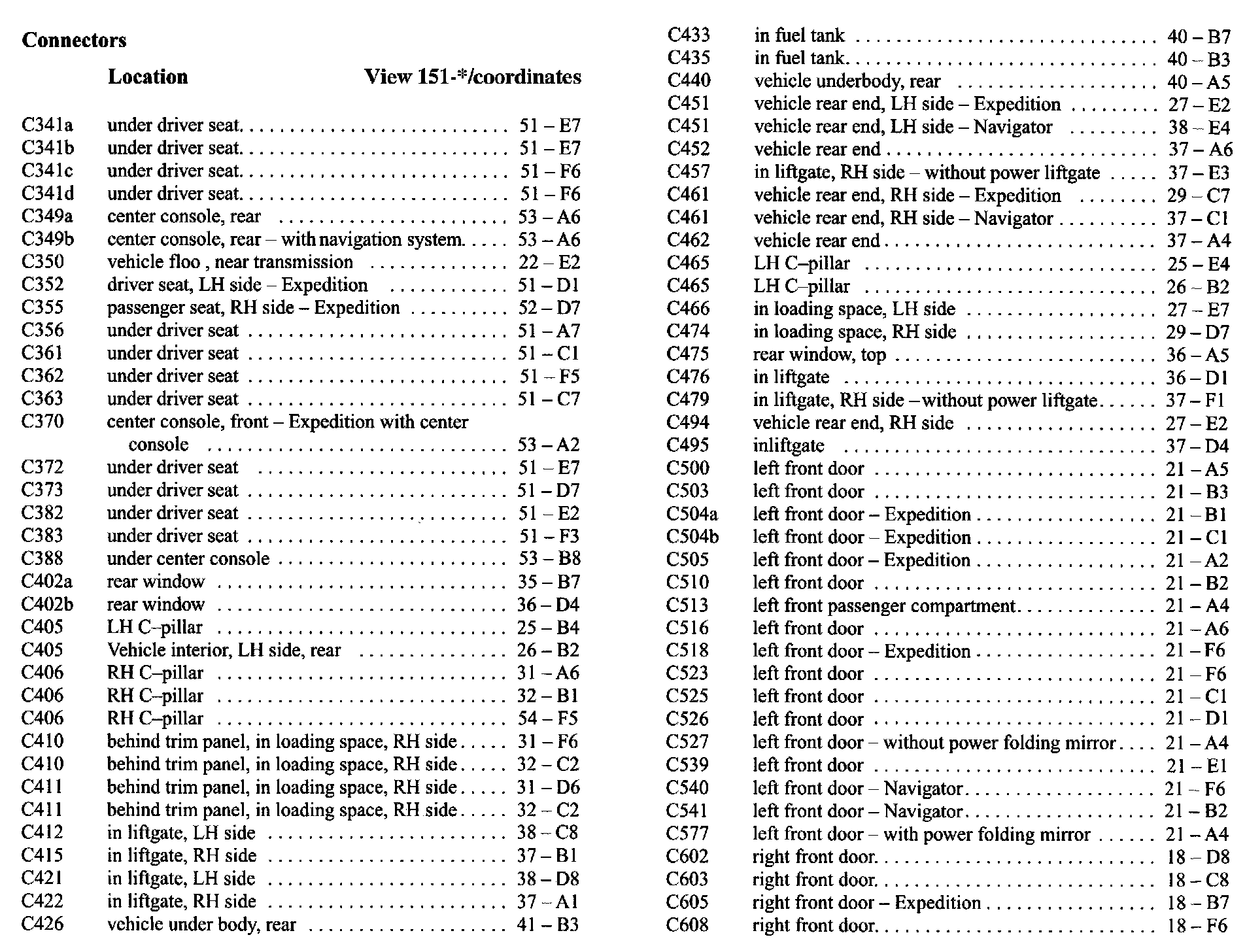

C341-C608:

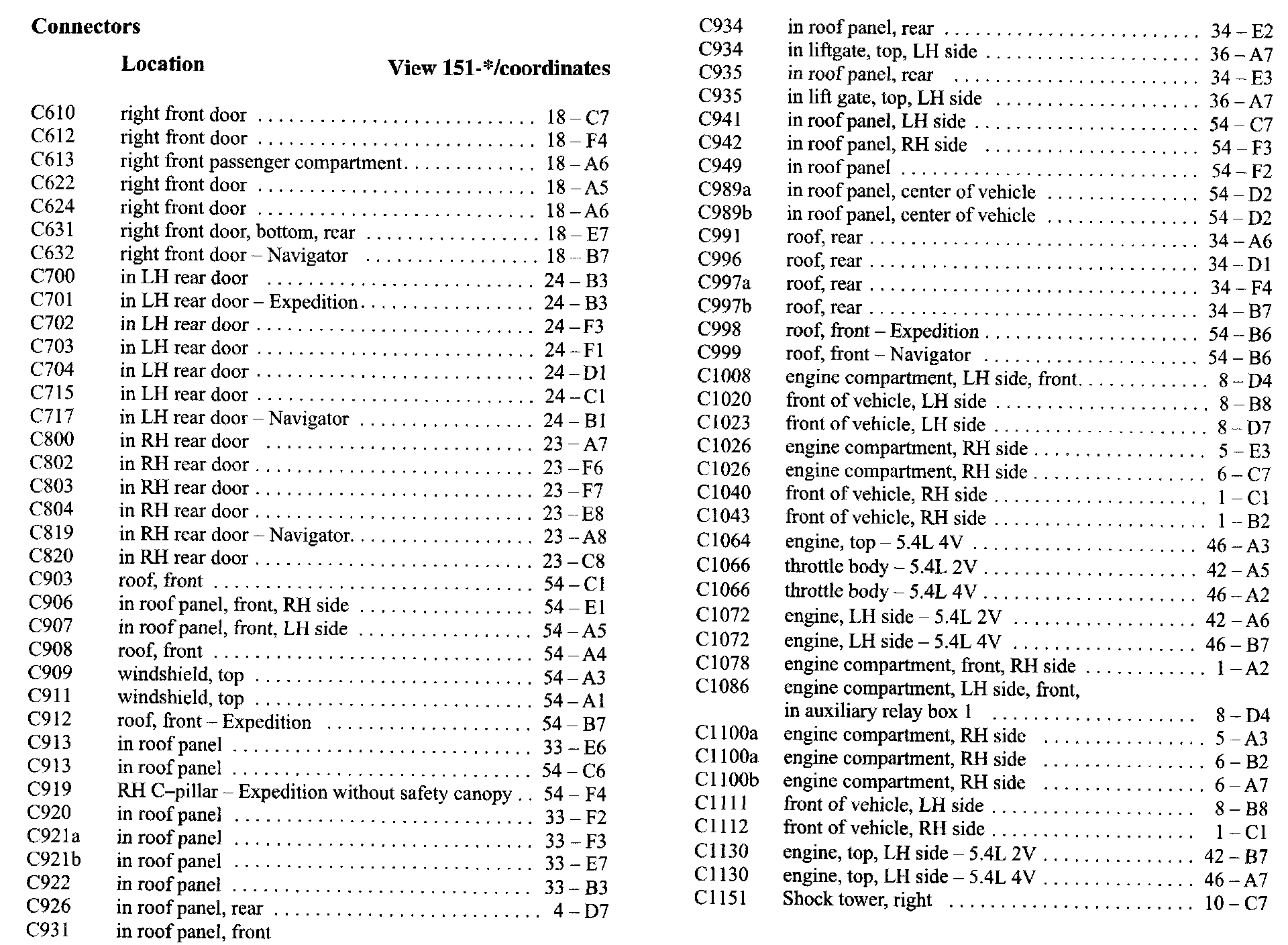

C610-C1151:

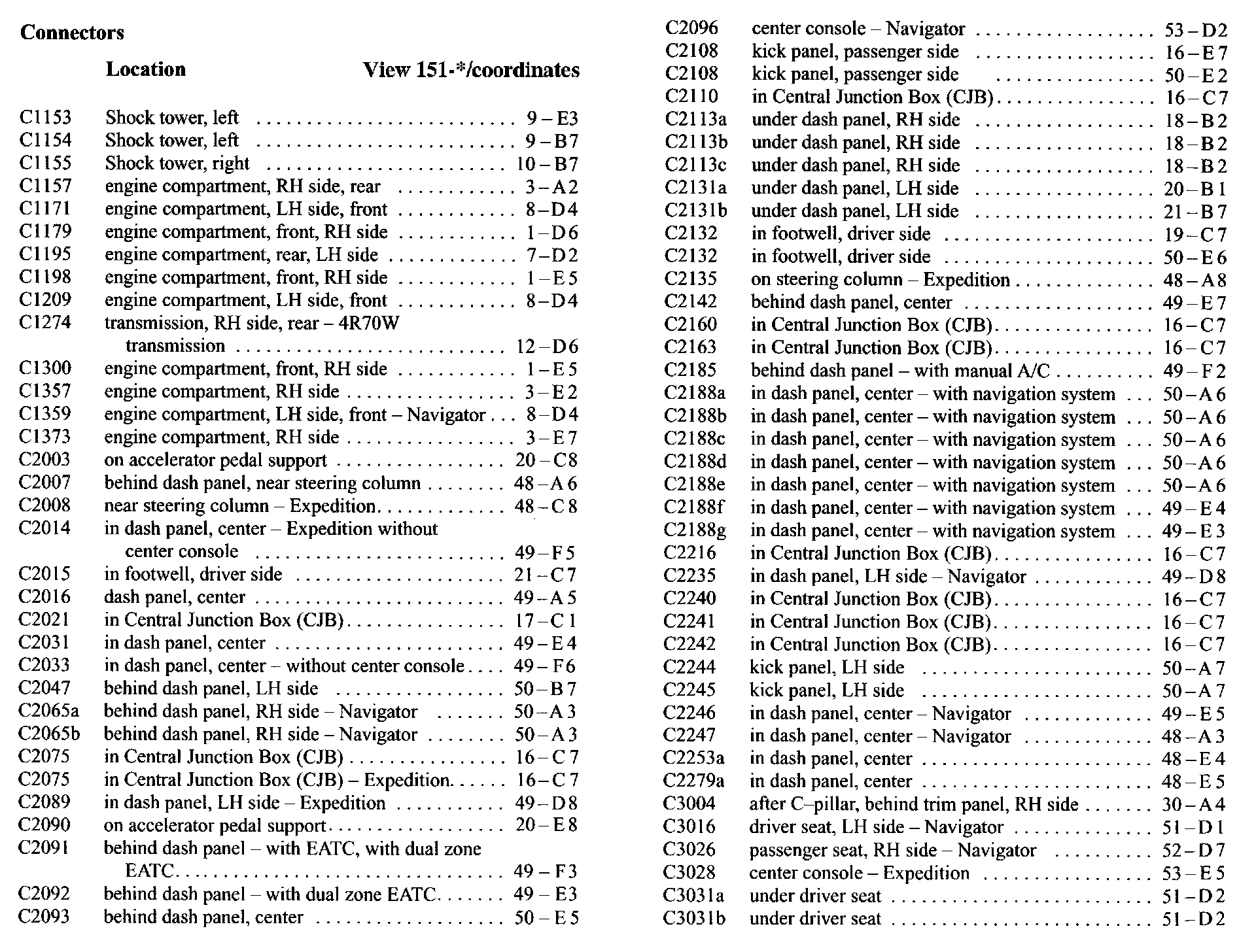

C1153-C3031:

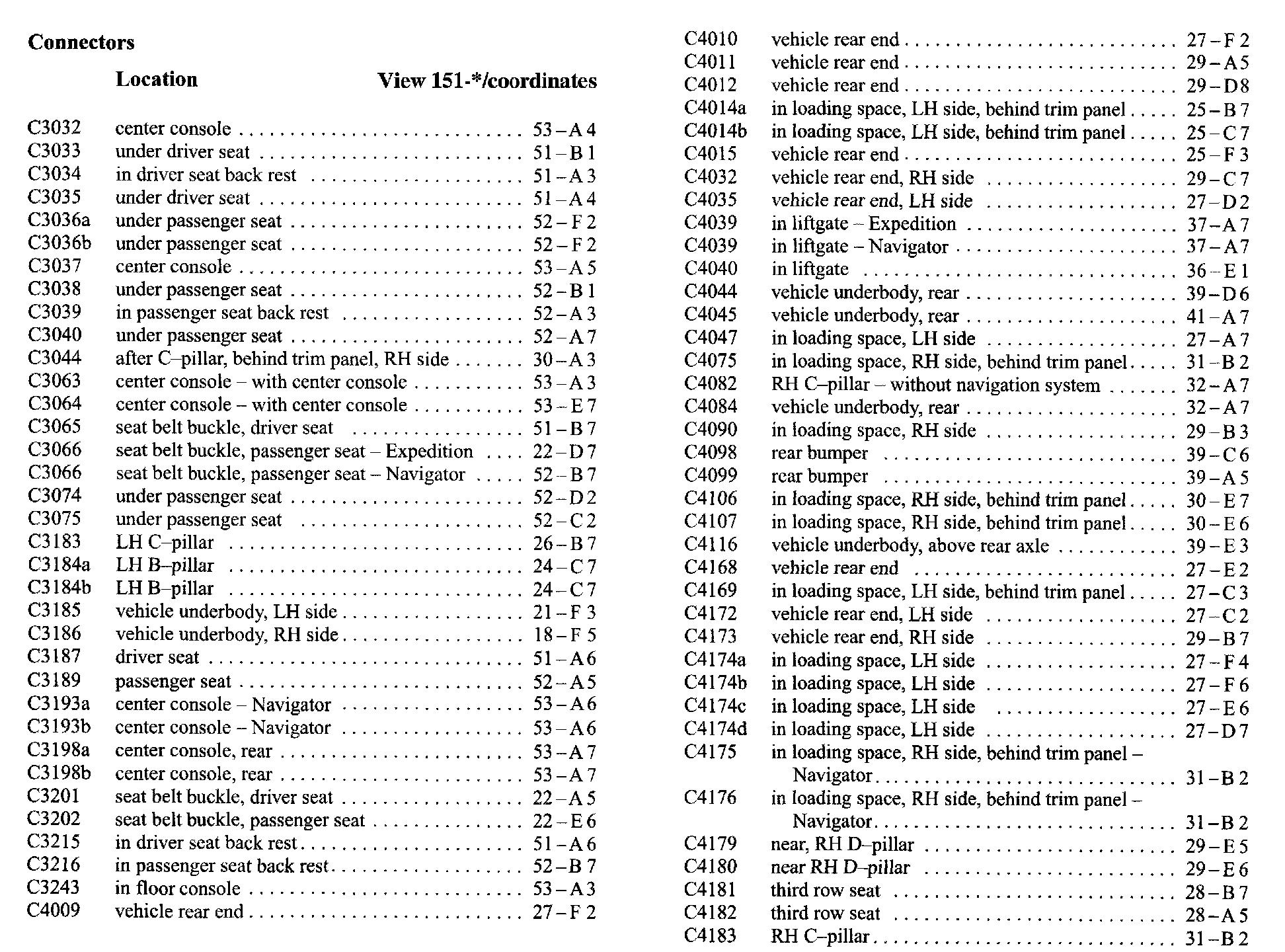

C3032-C4183:

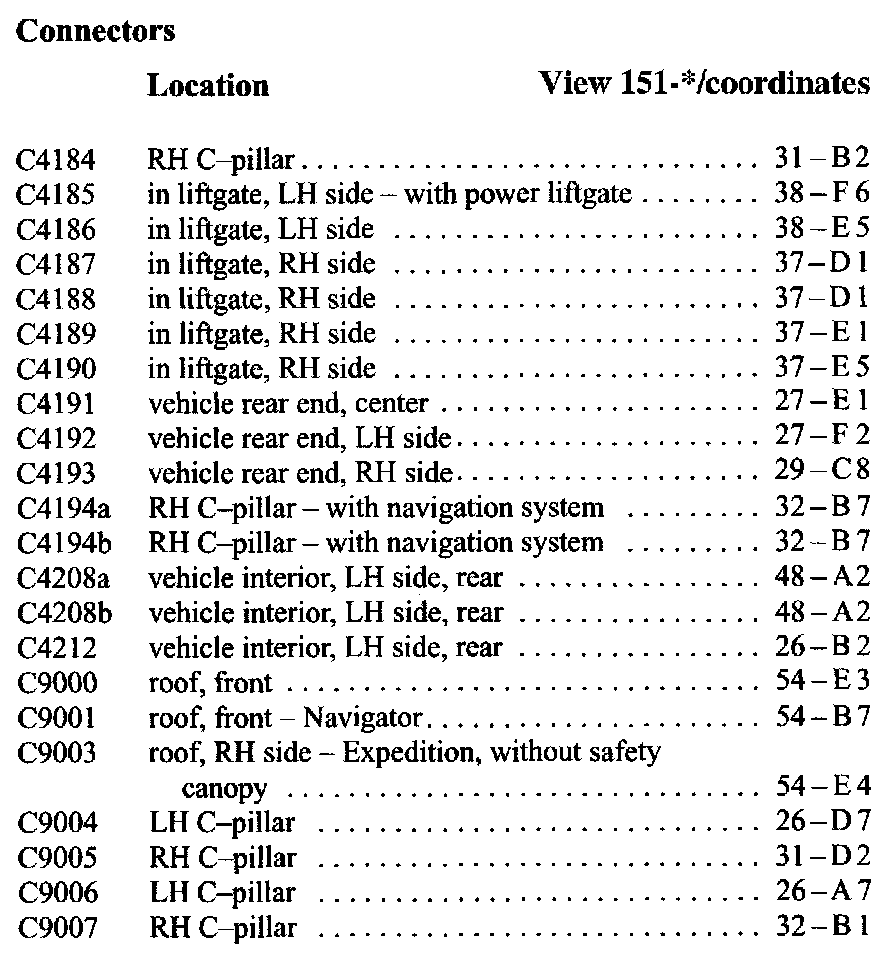

C4184-C9007:
