HEATED SEAT MODULE - FRONT SEAT, LATE BUILD

REMOVAL

NOTE: The late build heated seat module is located on the back side of the front passenger door trim panel.

1. Disconnect the battery ground cable.







2. CAUTION: Use care not to damage the trim panel covers.

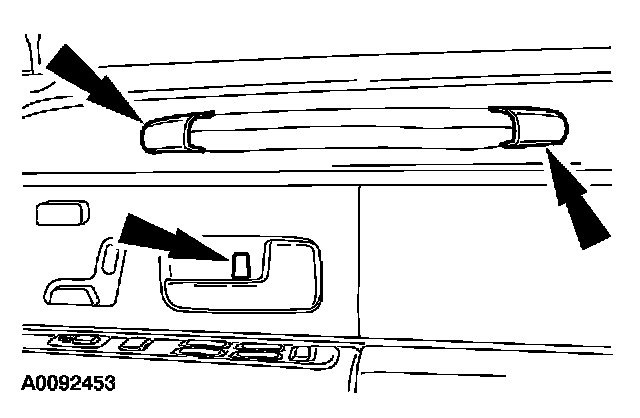

Open the screw covers.

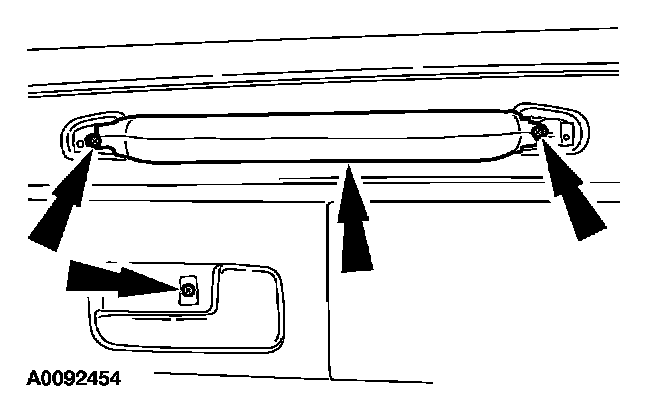

3. Remove the screws and the assist handle.

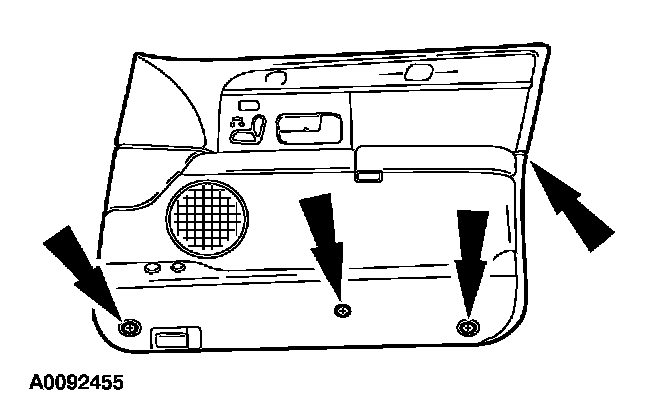

4. Remove the screws and position the front door trim panel away from the door.







5. Remove the heated seat module.

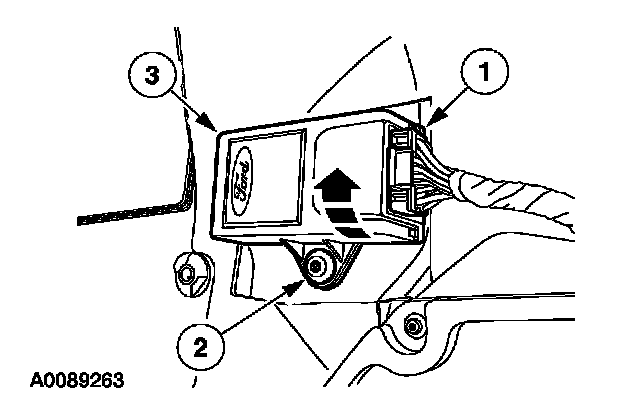

1 Disconnect the electrical connector.
2 Remove the retainer.
3 Rotate the bottom of the heated seat module upward and remove it.

INSTALLATION
1. To install, reverse the removal procedure.
