General Specifications

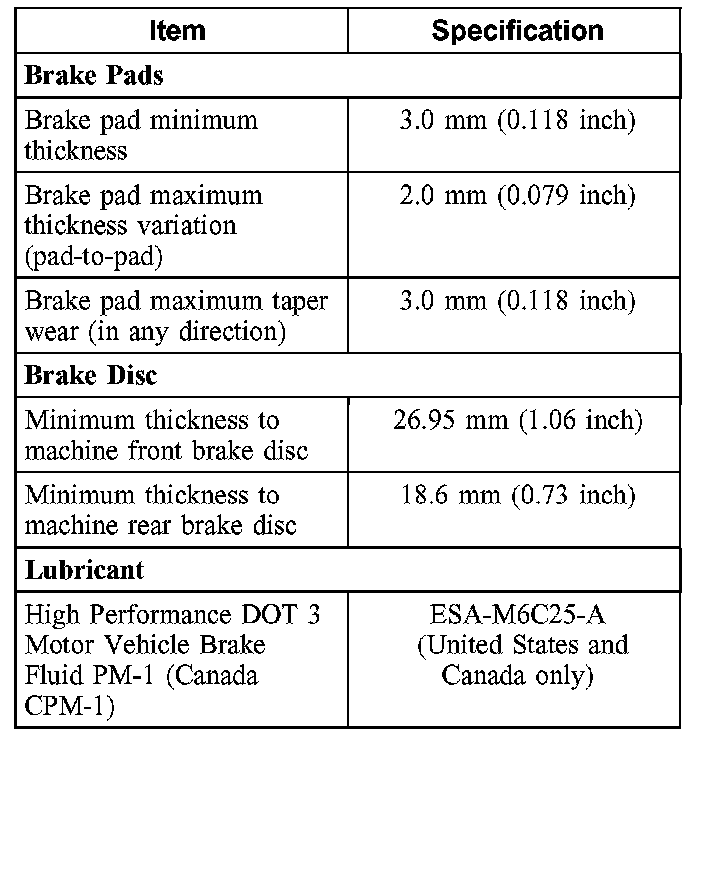

Part 1 Of 2:

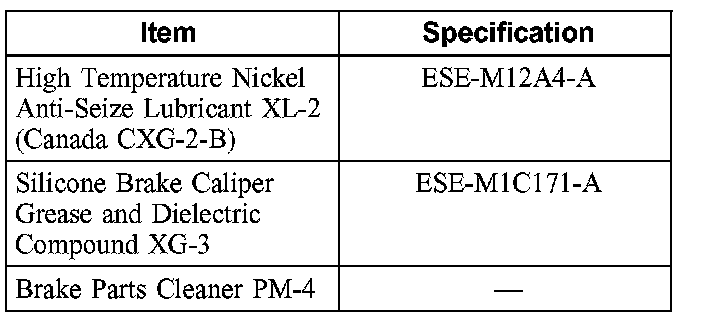

Part 2 Of 2:






Brake Specifications

Front
Brake disc minimum thickness 26.35 mm (1.0374inch)
Rear
Less limo coversion package W/10 mounting holes
Brake disc minimum thickness 18.0 mm (0.7087inch)
W/Limo conversion package and 5 mounting holes
Brake disc minimum thickness 12.0 mm (0.4724 inch)

Brake Drum Maximum Diameter
Rear
Limo only w/11" brake 281.70 mm (11.0906 in.)
