Front Cross-Member: Service and Repair

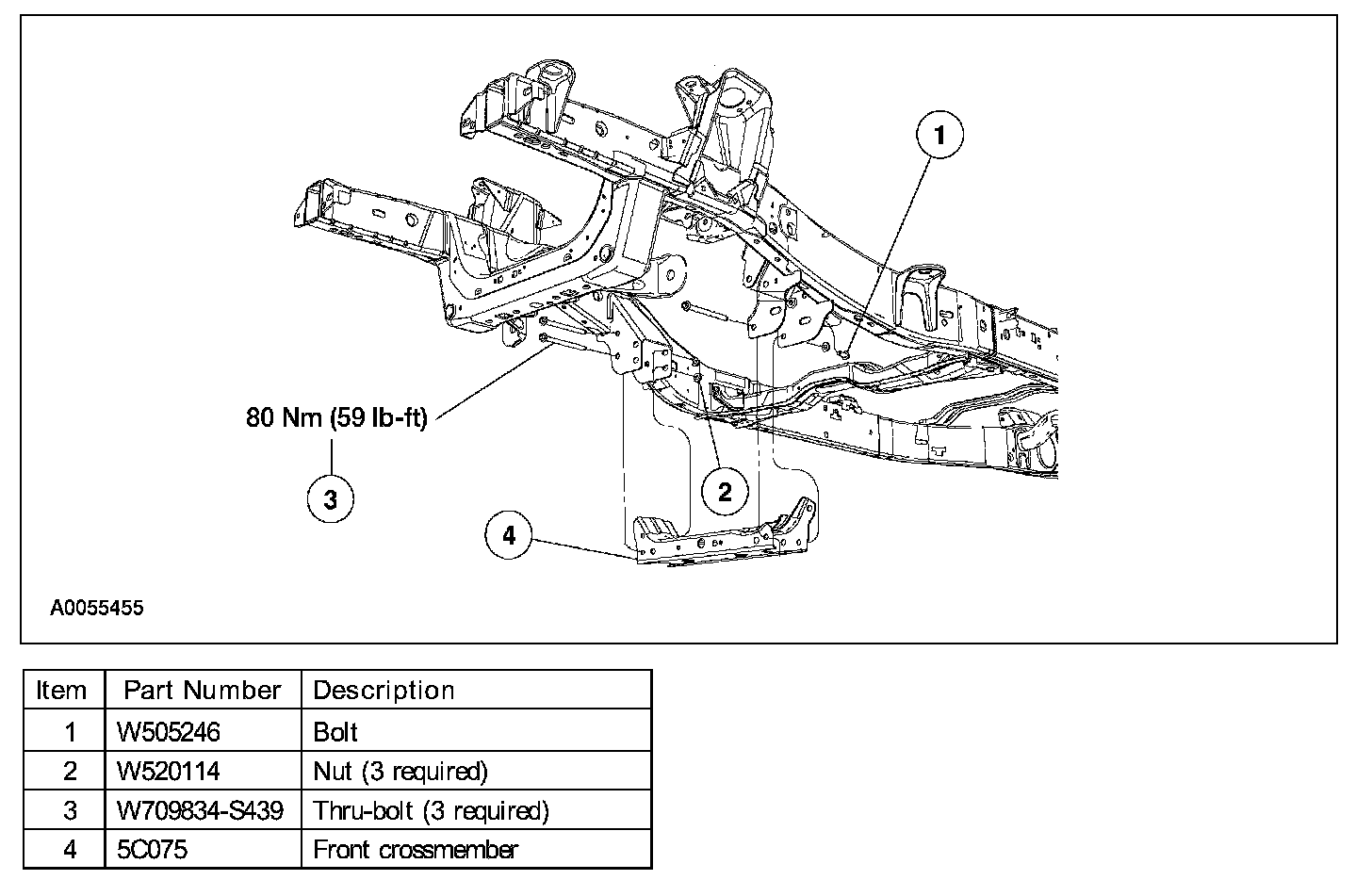

CROSSMEMBER - FRONTRemoval and Installation 1.
Raise and support vehicle.
2.
Remove the bolt.
3.
Remove the 3 nuts.
4.
Remove the front crossmember.
-
Remove the 3 thru-bolts.
-
To install, tighten to
80 Nm (m59 lb-ft).
-
Remove the front crossmember.
5.
To install, reverse the removal procedure.
