Parking Assist Control Module: Service and Repair

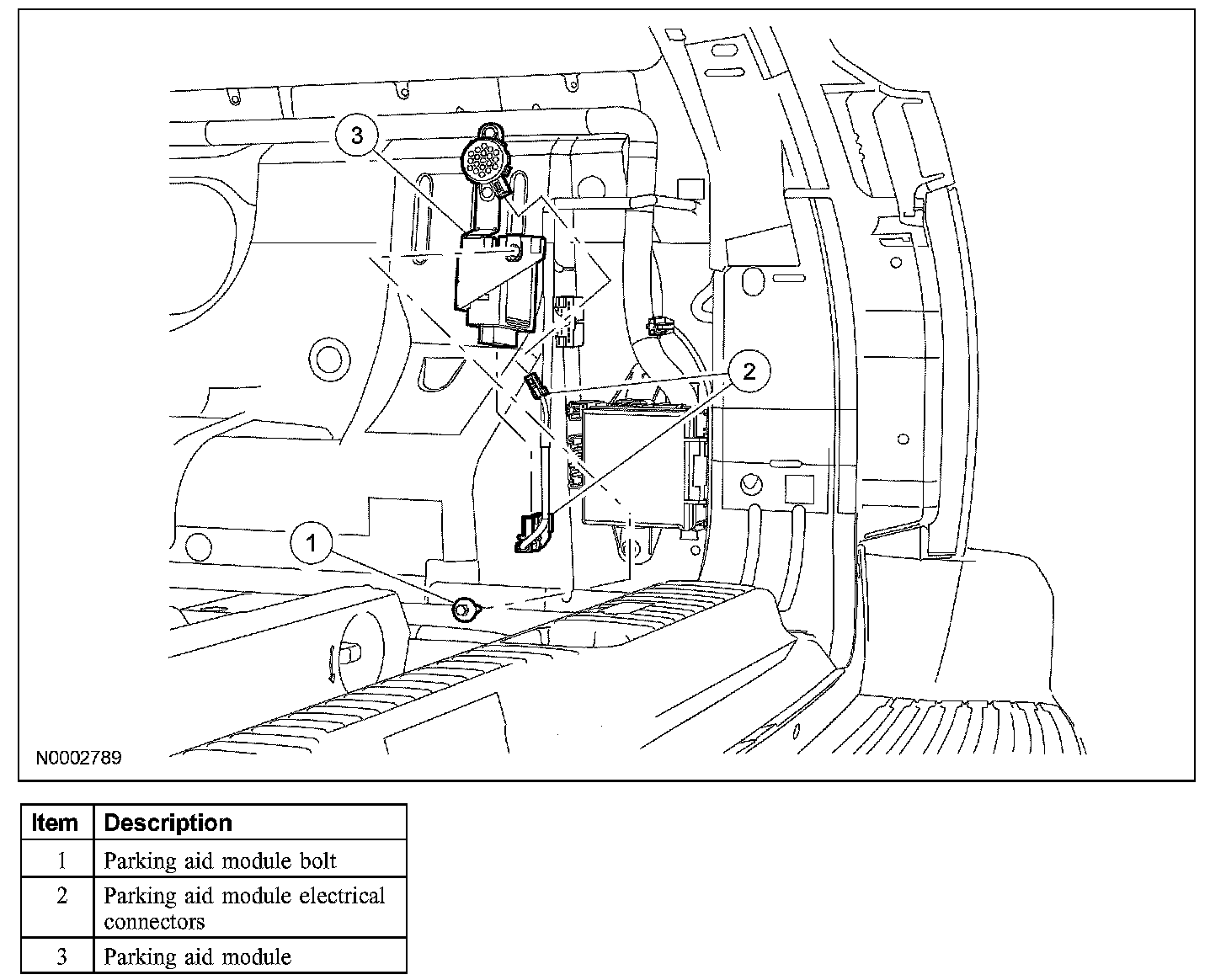

PARKING AID MODULERemoval and Installation 1.
Remove the RH quarter trim panel.
2.
Disconnect the parking aid module electrical connectors.
3.
Remove the bolt and the parking aid module.
4.
To install, reverse the removal procedure.
