Interior Rear View Mirror

INTERIOR REAR VIEW MIRROR


Installer, Rear View Mirror:






Special Tool(s)







Removal
1. Disconnect the interior rear view mirror electrical connector.
2. Remove the interior rear view mirror cover.
3. Place the interior rear view mirror in the full DOWN position. Pull upward until released.

Installation

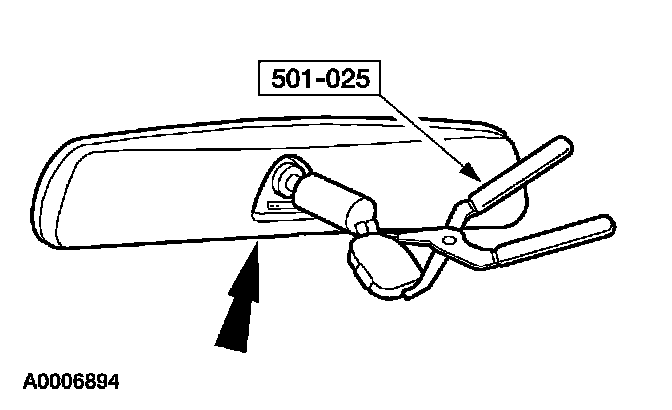

1. Place the interior rear view mirror on the windshield bracket. Using the special tool, press the mirror in place until fully seated.
2. Install the interior rear view mirror cover.
3. Connect the interior rear view mirror electrical connector.
