Wheel Speed Sensor - Rear

Part 1:

Part 2:

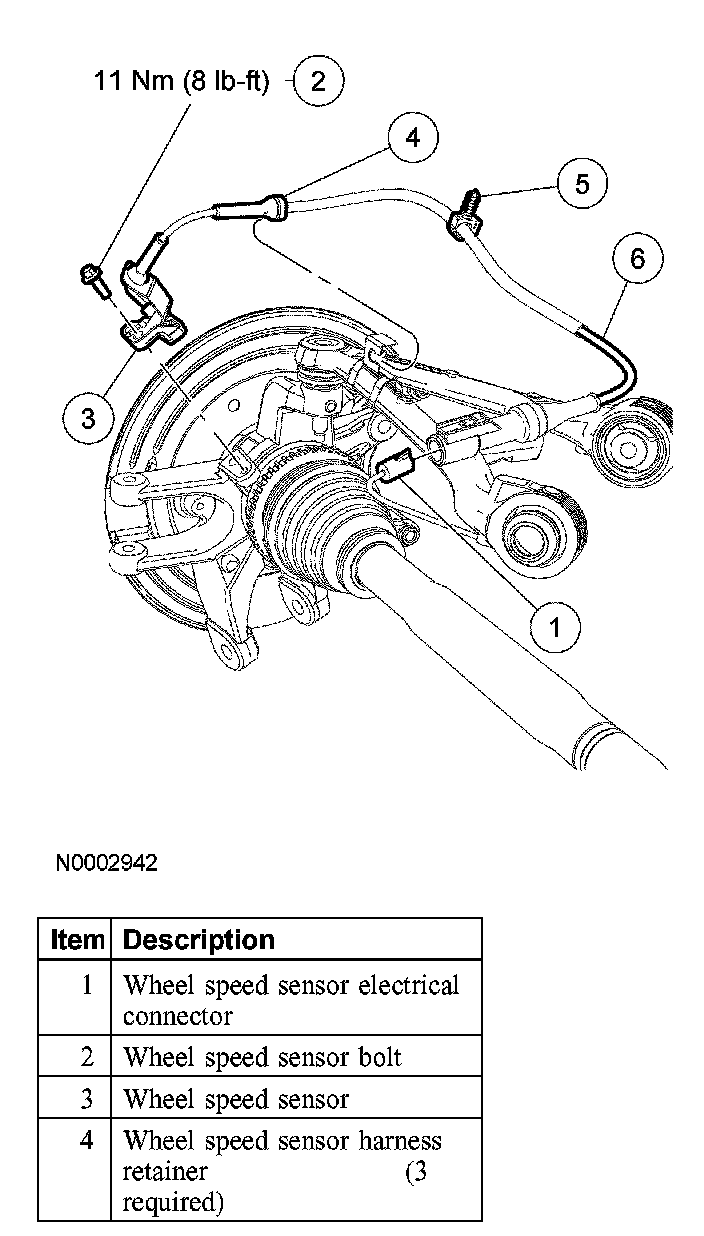

Wheel Speed Sensor - Rear

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the wheel speed sensor electrical connector.
3. Remove the wheel speed sensor bolt.
^ To install, tighten to 11 Nm (8 ft. lbs.).

4. NOTE: Clean off all dirt and foreign material that may have collected around the rear anti lock brake sensor before removal.

Remove the wheel speed sensor.
5. Remove the wheel speed sensor harness retainer.
6. Remove the wheel speed sensor harness pin type retainer.
7. Remove the wheel speed sensor and harness assembly.
8. To install, reverse the removal procedure.
