Yaw Rate Sensor: Service and Repair

Yaw Rate Sensor

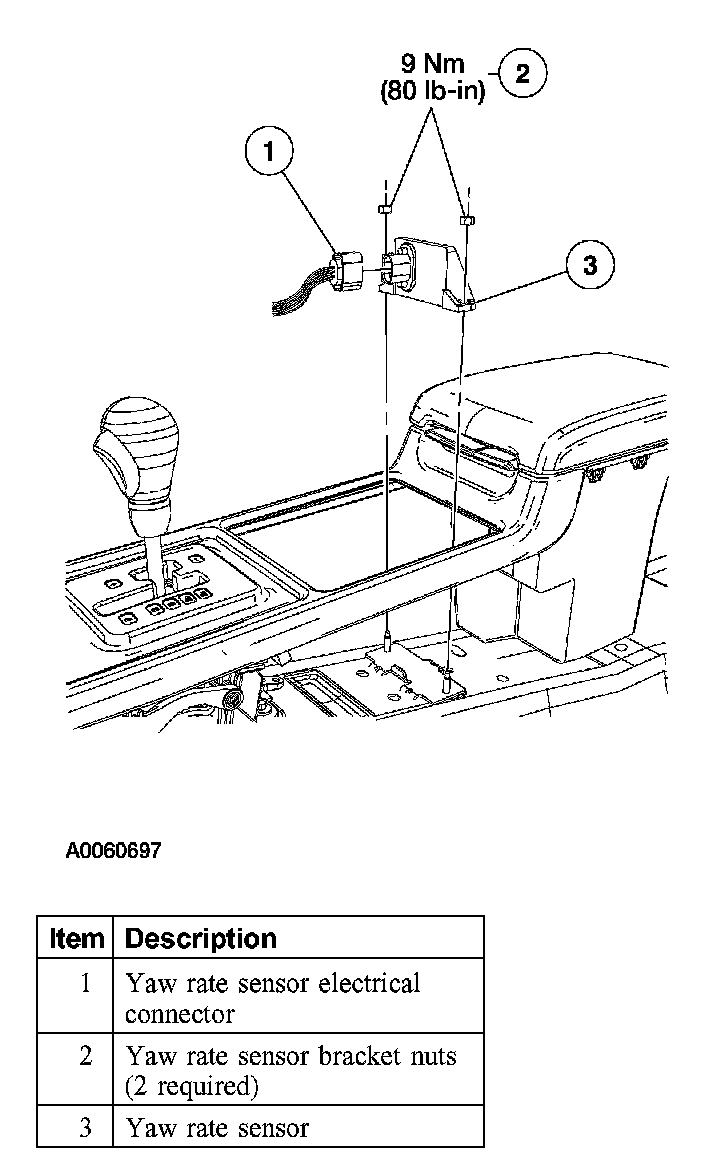

Removal and Installation

NOTE: When installing a new yaw rate sensor, the anti lock brake system (ABS) module must be configured (using vehicle as built data) and calibrated. Follow the diagnostic tool directions for the calibration procedures.

1. If equipped, remove the floor console.

2. NOTE: Fold back the carpeting flap to gain access to the yaw rate sensor.

Disconnect the yaw rate sensor electrical connector.
3. Remove the 2 nuts and the yaw rate sensor.
^ To install, tighten to 9 Nm (80 inch lbs.).

4. To install, reverse the removal procedure.
