Brake Disc Shield

Brake Disc Shield

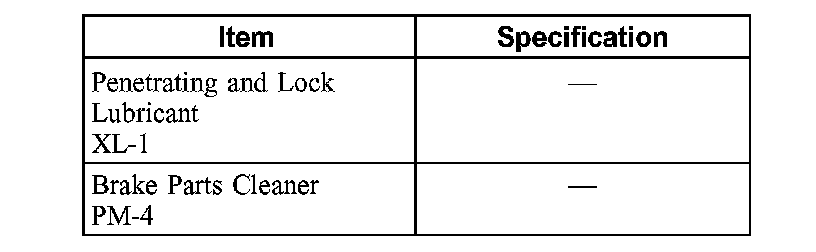

Material

Removal and Installation
1. Remove the brake disc.

2. CAUTION: Do not use a drill larger that 6.0 mm (0.23 in) to remove the rivet from the brake disc shield.

Remove the brake disc shield rivets.

3. NOTE: If the brake disc shield cannot be removed easily, apply rust penetrant and inhibitor on the brake disc to wheel hub mating surfaces.

Remove the brake disc shield.
4. To install, reverse the removal procedure.
